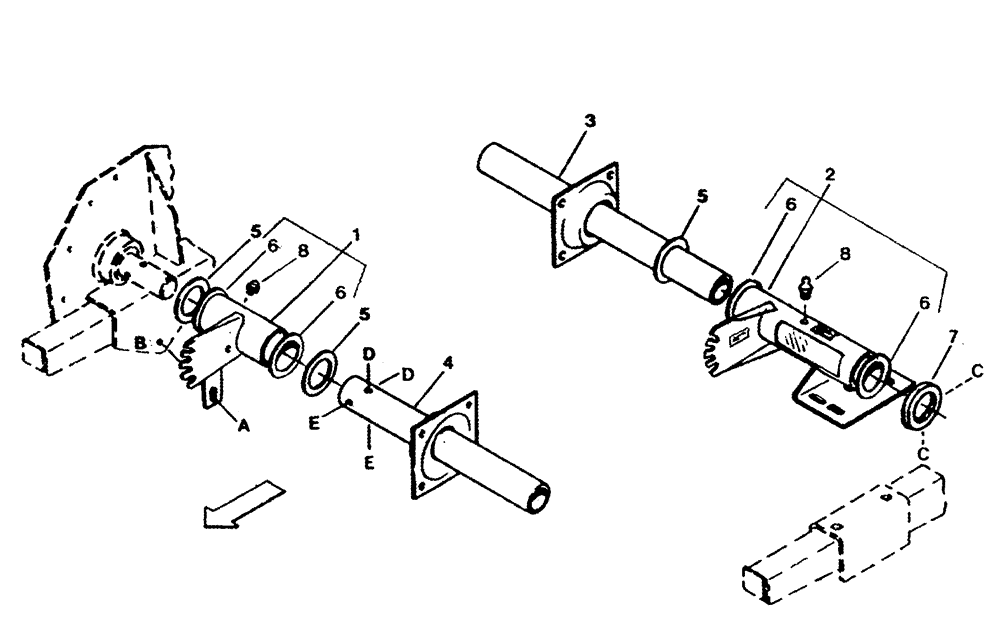

Запчасти Case IH 2042 (09-18) - PICKUP REEL MOUNTING PACKAGE - 30.0 FOOT HEADER

1

131467A1

SUPPORT

Reel, Right Hand, Inc. 6 (2), 8 (1)

1шт.

2

131466A1

SUPPORT

Reel, Left Hand, Inc. 6 (2), 8 (1)

1шт.

3

131463A2

TUBE

Left Hand

1шт.

4

131462A1

TUBE

Drive

1шт.

5

1337235C1

WASHER

3шт.

6

1969215C1

BUSHING,51.2mm ID x 55.3mm OD x 62mm L

Plastic

4шт.

7

1344624C1

RETAINER COLLAR

1шт.

8

219-8

LUBE NIPPLE,1/4" - 28 NPTF

2шт.

a

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

1шт.

b

232-5316

FLANGE NUT,Flg, 3/8"-16

1шт.

c

83-1314

SET SCREW,5/16" - 18 x 1/4"

1шт.

d

27-8231

CLEVIS PIN,1/2" x 2 5/16"

1шт.

e

32-1220

COTTER PIN,3/16" x 1 1/4"

1шт.
