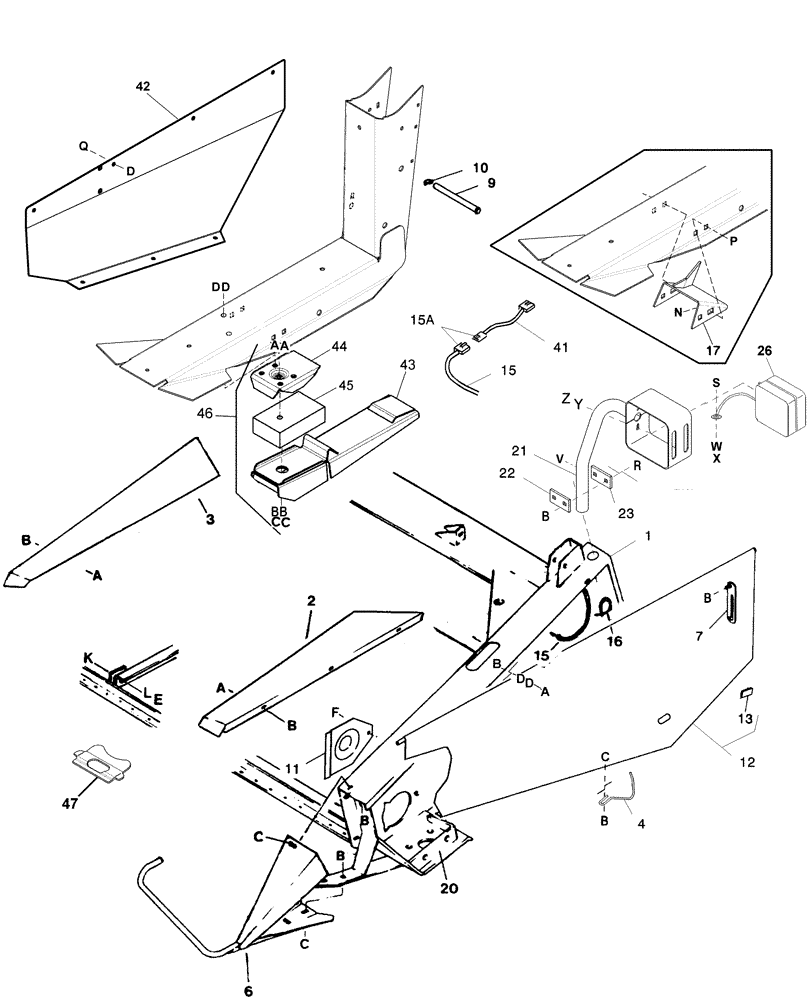

Запчасти Case IH 2042 (09-01) - MAIN FRAME

1

NSS

NOT SOLD SEPARAT

Frame Assy, Inc. 1A - 1D

1шт.

1a

338572A1

BAR

1500 mm (5 ft), Guard, Service Repair Only

1шт.

1b

338573A1

TUBE,215.9 mm OD, 1500 mm Length

1500 mm (5 ft), Rear, Service Repair Only

1шт.

1c

338576A1

SUPPORT

1590 mm (5-1/3 ft), Sliding Deck, Service Repair Only

1шт.

1d

338574A1

CUTTER BAR

1500 mm (5 ft), Service Repair Only

1шт.

2

338588A1

DEFLECTOR

Left Hand

1шт.

3

338719A1

DEFLECTOR

Right Hand

1шт.

4

338615A1

CATCH

1шт.

6

87422055

DIVIDER

Left Hand

1шт.

6

87422054

DIVIDER

Right Hand, Inc. Reflector

1шт.

7

338586A1

BAR

1шт.

9

87457991

PIN

3/4 x 6-3/4

2шт.

10

341198A1

PIN

2шт.

11

338746A1

SHIELD

Gearbox

1шт.

12

87423130

SPLASH SHIELD

Left Hand, Inc. Decals and Seals

1шт.

13

126611A1

SEAL

3шт.

15

131484A1

HARNESS

Double Delivery

1шт.

30.0 Foot Header

1шт.

15

126690A1

HARNESS

Double Delivery

1шт.

36.0 Foot Header

1шт.

15a

1281491C1

PACKAGE

Electrical Connector

1шт.

16

702093C1

CABLE TIE

CABLE STRAP

1шт.

17

87422049

GUIDE

Lower Link, LH, Serial Range: -CCC0013001

1шт.

17

87422050

GUIDE

Lower Link, RH, Serial Range: -CCC0013001

1шт.

20

352619A1

SUPPORT

1шт.

21

352626A1

SUPPORT

Light, Amber, Left Hand

1шт.

21

352627A1

SUPPORT

Light, Amber, Right Hand

1шт.

22

352628A1

PLATE

Steel

2шт.

23

352630A1

PLATE

Plastic

2шт.

26

347502A1

LAMP

2шт.

41

338297A1

HARNESS

1шт.

42

87422048

SPLASH SHIELD

RH, Inc. Decal And Reflector

1шт.

43

87446860

SUPPORT ASSY.

Isolator, Start Serial: CCC0013002

2шт.

44

87446862

COVER

Isolator, Start Serial: CCC0013002

2шт.

45

87446871

RUBBER PAD

Isolator, Start Serial: CCC0013002

2шт.

46

87446861

SUPPORT ASSY.

Isolator, Start Serial: CCC0013002

2шт.

47

87416308

PIN

Anchor Transition plate, Start Serial: CCC0013130

2шт.

a

434-612

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

1шт.

b

232-5316

FLANGE NUT,Flg, 3/8"-16

1шт.

c

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

1шт.

d

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

1шт.

e

231-4146

NUT,3/8"-16, GB

1шт.

f

409-7612

BOLT,3/8"-16 x 1.09" OAL

1шт.

k

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

l

492-11038

LOCK WASHER,3/8"

1шт.

n

434-1024

CARRIAGE BOLT,Sht Sq Nk, 5/8" - 11 x 1 1/2", Gr 5

1шт.

p

231-53410

FLANGE NUT,Flg, 5/8"-11

1шт.

q

281-54910

SELF-TAP SCREW,Hex Wash Hd, 3/8"-16 x 5/8"

1шт.

r

433-640

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 2 1/2", Gr 5

1шт.

s

433-410

CARRIAGE BOLT,Sq Nk, 1/4" - 20 x 5/8", Gr 5

1шт.

v

281-1488

SELF-TAP SCREW,Hex Wash Hd, 5/16" x 1/2"

1шт.

w

493-41026

LOCK WASHER,Ext Tooth, 1/4"

1шт.

x

230-4244

LOCK NUT,1/4"-20, GA

1шт.

y

829-1405

NUT,M5, Cl 10

1шт.

z

832-11405

NUT,M5 x .8, Cl 8

1шт.

aa

433-848

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 3", Gr 5

1шт.

bb

87446842

WASHER

Flat, 13.5 x 47 mm

1шт.

cc

231-1448

NUT,1/2"-13, GB

1шт.

dd

86511946

SCREW,Phillips Drive, Pan HD, 3/8" - 16 x 3/4"

1шт.
