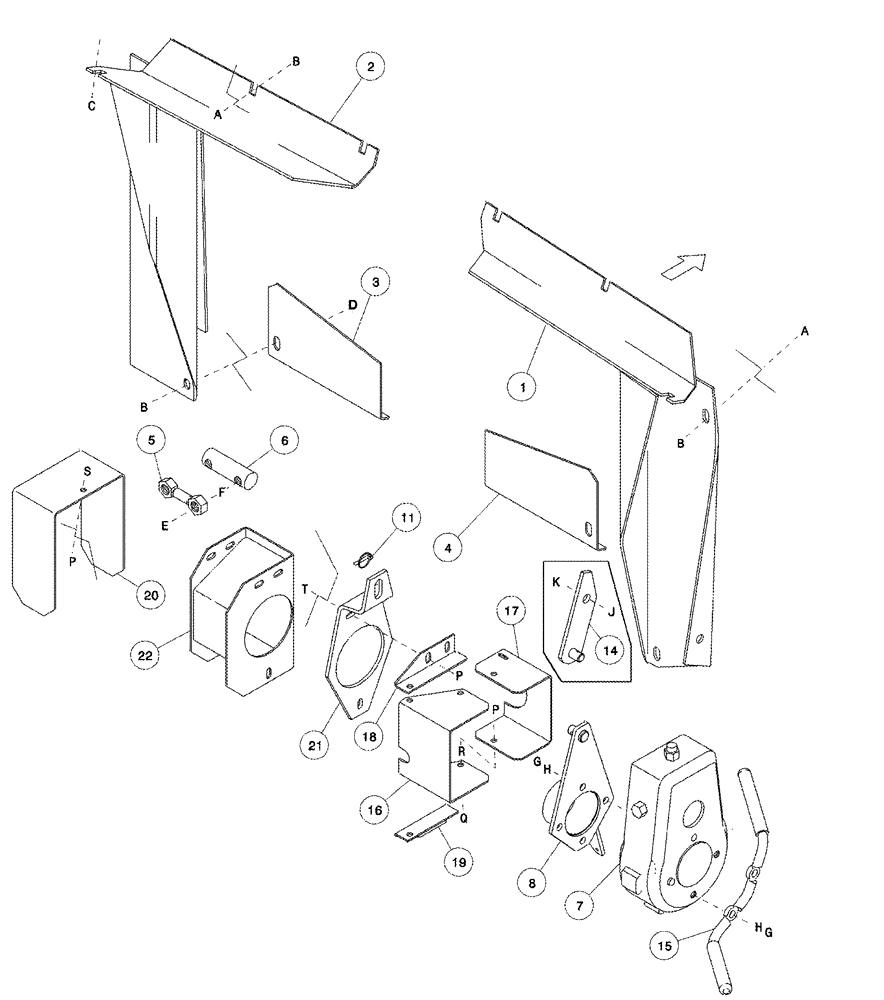

Запчасти Case IH 1052 (09-53) - COMBINE ADAPTER COMPLETION PARTS (09) - CHASSIS

1

338396A1

MEMBER

Adapter, Right Hand

1шт.

2

363829A1

FRAME

Adapter, Left Hand

1шт.

3

338398A1

FILLER

Left Hand Lower, 60 & 66 Series Combines

1шт.

3

428417A1

FILLER

Left Hand Lower, 80 & 88 Series Combines

1шт.

4

338399A1

FILLER

Right Hand Lower, 60 & 66 Series Combines

1шт.

4

428418A1

FILLER

Right Hand Lower, 80 & 88 Series Combines

1шт.

5

1327397C1

PIN

2шт.

6

126646A1

PIN

2шт.

7

349045A1

DRIVE

Gearbox

1шт.

See Figure 09-48

1шт.

7

349045A1R

REMAN-GEARBOX

Remanufactured GEARBOX

1шт.

7

349045A1C

CORE-GEARBOX

Return Number

1шт.

8

338459A1

ARM

Drive, Serial Range: -CCC0012000

1шт.

8

352699A1

ARM

Drive, Start Serial: CCC0012001

1шт.

11

341198A1

PIN

1шт.

14

338456A1

BAR

, Serial Range: -CCC0012000

1шт.

15

338467A1

HANDLE

1шт.

16

338451A1

SHIELD

Right Hand, Rear Section

1шт.

17

338452A1

SHIELD

Right Hand, Front Section

1шт.

18

338458A1

SUPPORT

Right Hand, Top

1шт.

19

338449A1

SUPPORT

Right Hand, Bottom

1шт.

20

352686A1

SHIELD

Left Hand

1шт.

21

352698A1

SUPPORT

, Start Serial: CCC0012001

1шт.

22

347469A1

SHIELD

Right Hand Extension, For Narrow Feeder House, Start Serial: CCC0012001

1шт.

a

434-816

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1", Gr 5

1/2 x 1

1шт.

a

434-820

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/4", Gr 5

1/2 x 1-1/4

1шт.

b

231-5348

FLANGE NUT,Flg, 1/2"-13

1шт.

c

360-816

BOLT,Hex, 1/2" - 13 x 1", Gr 8

1/2 x 1

1шт.

d

434-820

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/4", Gr 5

1/2 x 1-1/4

1шт.

e

113-2668

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 5, Full Thd

1шт.

f

425-1410

JAM NUT,Jam, 5/8"-11, G5

5/8

1шт.

g

614-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd

1шт.

h

892-11012

LOCK WASHER,M12

1шт.

p

232-5316

FLANGE NUT,Flg, 3/8"-16

1шт.

q

409-7612

BOLT,3/8"-16 x 1.09" OAL

1шт.

r

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(13/32 x 13/16 x 1/16")

1шт.

s

409-7612

BOLT,3/8"-16 x 1.09" OAL

1шт.

409-7610

BOLT,Hex Flg, 3/8" - 16 x 5/8"

3/8 NC x 5/8

1шт.

t

409-7620

BOLT,Hex Flg, 3/8" - 16 x 1 1/4", Spcl

1шт.
