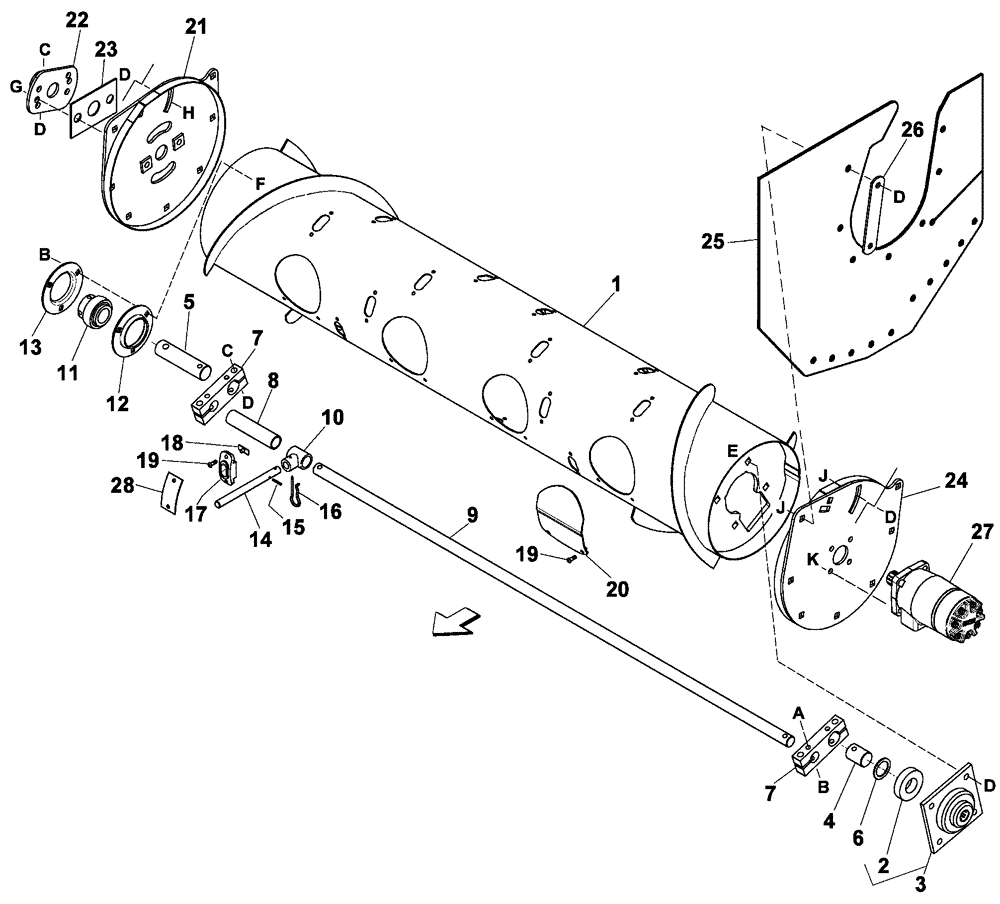

Запчасти Case IH 1052 (09-52) - COMBINE ADAPTER RETRACTING TINE DRUM ASN CCC0012343 (09) - CHASSIS

1

410728A1

DRUM

11 Inch, Retracting Tine

1шт.

2

410745A1

BEARING, BALL,35 mm ID x 72 mm OD x 17 mm

1шт.

3

87422057

SUPPORT ASSY.

Motor Mount, Inc. 2

1шт.

4

410722A1

SHAFT

Left-Hand

1шт.

5

410723A1

SHAFT

Right-Hand

1шт.

6

410839A1

WASHER

1шт.

7

410729A1

BLOCK

Tine Shaft

2шт.

8

410840A1

SPACER

Tine Shaft

2шт.

9

410720A1

SHAFT

1шт.

10

410719A1

BUSHING

25шт.

11

126608A1

BALL BEARING,34.92mm ID x 72mm OD x 17mm W

Inc. Lock Collar

1шт.

12

1327467C1

FLANGED BEARING

1шт.

13

1327468C1

FLANGE

Inc. Lube Fitting

1шт.

14

410730A1

TINE

25шт.

15

38-3816

PIN,1/8" x 1", Coiled

25шт.

16

410725A1

PIN, SPLIT (COTTER)

PIN, COTTER

25шт.

17

410718A1

GUIDE

Plastic

25шт.

18

410726A1

NUT

1/4 NC

50шт.

19

161-115

HEX SOC SCREW,Btn Hd, 1/4" - 20 x 3/4"

1/4 x 3/4

50шт.

20

410724A1

COVER

4шт.

21

410734A1

SUPPORT

Right-Hand

1шт.

22

410717A1

PLATE

1шт.

23

410690A1

SHIM

1шт.

24

410735A1

SUPPORT

Left-Hand

1шт.

25

450922A1

FLAP

Replaces 410691A1

2шт.

26

410739A1

STRAP

2шт.

27

410693A1

MOTOR

Hydraulic, RTD Drive

1шт.

See Figure 09-47

1шт.

28

450923A1

COVER

Guide, Used At Outboard Locations Where Tine Is Removed

1шт.

a

413-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

1шт.

b

232-5316

FLANGE NUT,Flg, 3/8"-16

1шт.

c

413-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

1/2 x 2-1/2

1шт.

d

231-5348

FLANGE NUT,Flg, 1/2"-13

1шт.

e

434-824

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/2", Gr 5

1/2 x 1-1/2

1шт.

f

33-616

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1", Gr 5

3/8 x 1

1шт.

g

409-7820

BOLT,Hex Flg, 1/2" - 13 x 1 1/4", Spcl

1шт.

h

434-820

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/4", Gr 5

1/2 x 1-1/4

1шт.

j

434-816

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1", Gr 5

1/2 x 1

1шт.

k

387304A1

BOLT

3/8 NC x 29/32

1шт.
