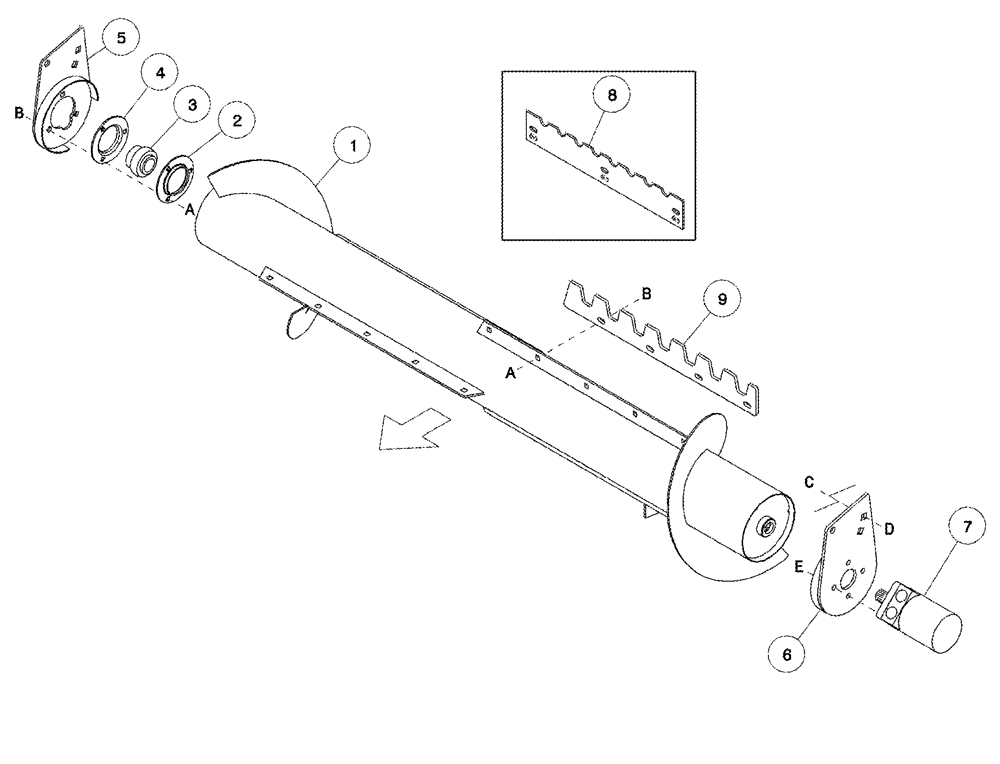

Запчасти Case IH 1052 (09-51) - COMBINE ADAPTER FEED AUGER BSN CCC0012342 (09) - CHASSIS

1

338407A1

AUGER

See Kit Below, Serial Range: -CCC0012000

1шт.

1

352689A1

AUGER

, Start Serial: CCC0012001

1шт.

347491A1

CONVERSION PACKAGE

Retrofit, Inc. 352689A1, 352690A1, Inc. Hardware

1шт.

2

1327280C1

FLANGE

1шт.

3

557116R91

BALL BEARING,30.16mm ID x 62mm OD x 18mm W

Inc. 557117R11

1шт.

557117R11

COLLAR

Locking

1шт.

4

670375R11

FLANGE

Inc. Lube Fitting

1шт.

5

338461A1

SUPPORT

1шт.

6

338460A1

SUPPORT

1шт.

7

338357A1

MOTOR

Auger Drive

1шт.

8

338348A1

BEATER

Center, Serial Range: -CCC0012000

4шт.

9

352690A1

BEATER

Center, Start Serial: CCC0012001

4шт.

a

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

1шт.

b

473371R1

FLANGE NUT

3/8 NC

1шт.

c

434-816

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1", Gr 5

1/2 x 1

1шт.

d

231-5348

FLANGE NUT,Flg, 1/2"-13

1шт.

e

1337227C1

BOLT,Hex Wshr Hd, 3/8" - 16 x 23mm, Gr 5

3/8 NC

1шт.

387304A1

BOLT

3/8 NC x 29/32

1шт.
