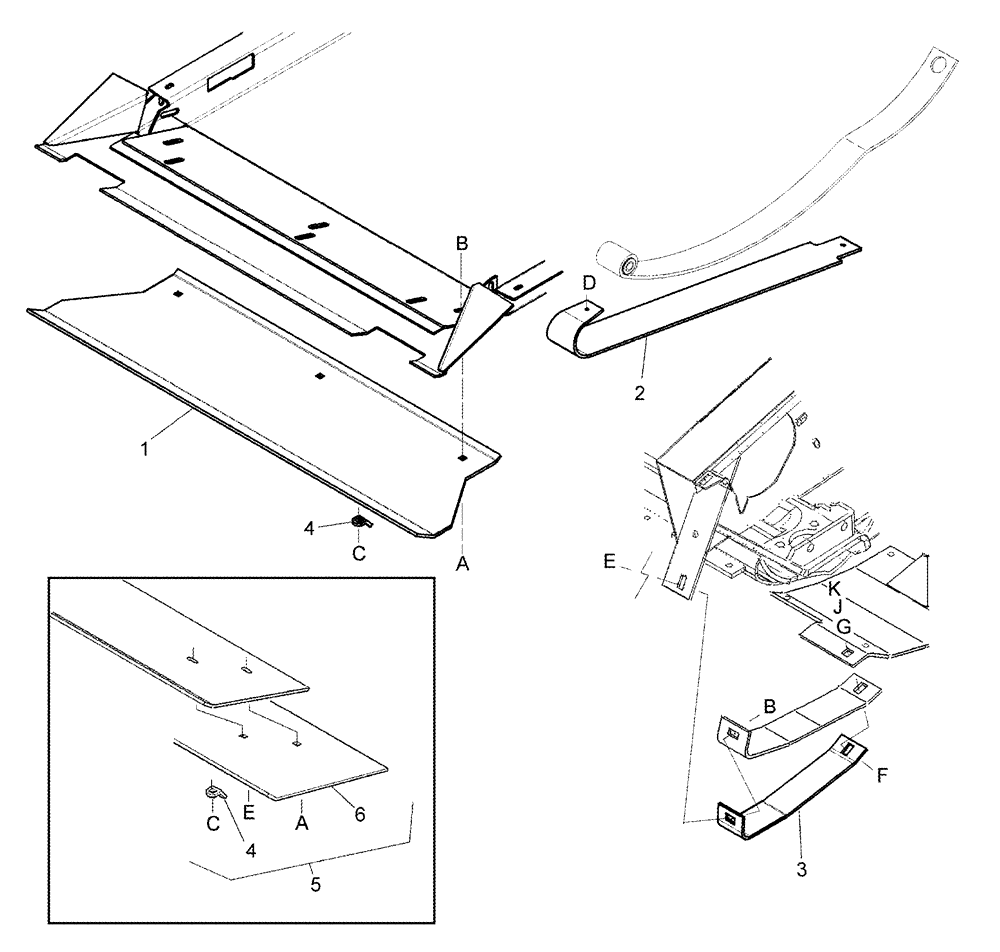

Запчасти Case IH 1052 (09-50A) - PLASTIC SKIDS ATTACHMENT (09) - CHASSIS

1

450924A1

STRIP

Plastic Wear, Feed Pan, Start Serial: CCC0012467

1шт.

38 in Deck

1шт.

1

450925A1

STRIP

Plastic Wear, Feed Pan, Start Serial: CCC0012467

1шт.

45 in Deck

1шт.

2

450927A1

SHOE

2шт.

3

450928A1

SHOE

2шт.

4

382121A1

LUG

6шт.

38 in Deck

1шт.

4

382121A1

LUG

7шт.

45 in Deck

1шт.

5

430267A1

PACKAGE

, Serial Range: -CCC0012466

1шт.

38 in Deck

1шт.

5

430269A1

PACKAGE

, Serial Range: -CCC0012466

1шт.

45 in Deck

1шт.

6

382122A1

STRIP

, Serial Range: -CCC0012466

1шт.

38 in Deck

1шт.

6

410694A1

STRIP

, Serial Range: -CCC0012466

1шт.

45 in Deck

1шт.

a

434-820

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/4", Gr 5

1/2 x 1-1/4

1шт.

b

231-5348

FLANGE NUT,Flg, 1/2"-13

1шт.

c

433-728

CARRIAGE BOLT,Sq Nk, 7/16" - 14 x 1 3/4", Gr 5

7/16 x 1-1/2

1шт.

d

281-54910

SELF-TAP SCREW,Hex Wash Hd, 3/8"-16 x 5/8"

3/8 st x 5/8

1шт.

e

433-828

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 3/4", Gr 5

1/2 x 1-3/4

1шт.

f

433-1032

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 2", Gr 5

5/8 x 2, Without Adjustable Skid Shoe

1шт.

f

433-1040

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 2 1/2", Gr 5

5/8 x 2-1/2, With Adjustable Skid Shoe

1шт.

g

495-11066

WASHER,5/8", SAE

21/32 x 1-5/16 x 3/32

1шт.

j

492-11062

BEARING WASHER,5/8"

1шт.

k

425-1010

NUT,5/8"-11, G5

1шт.
