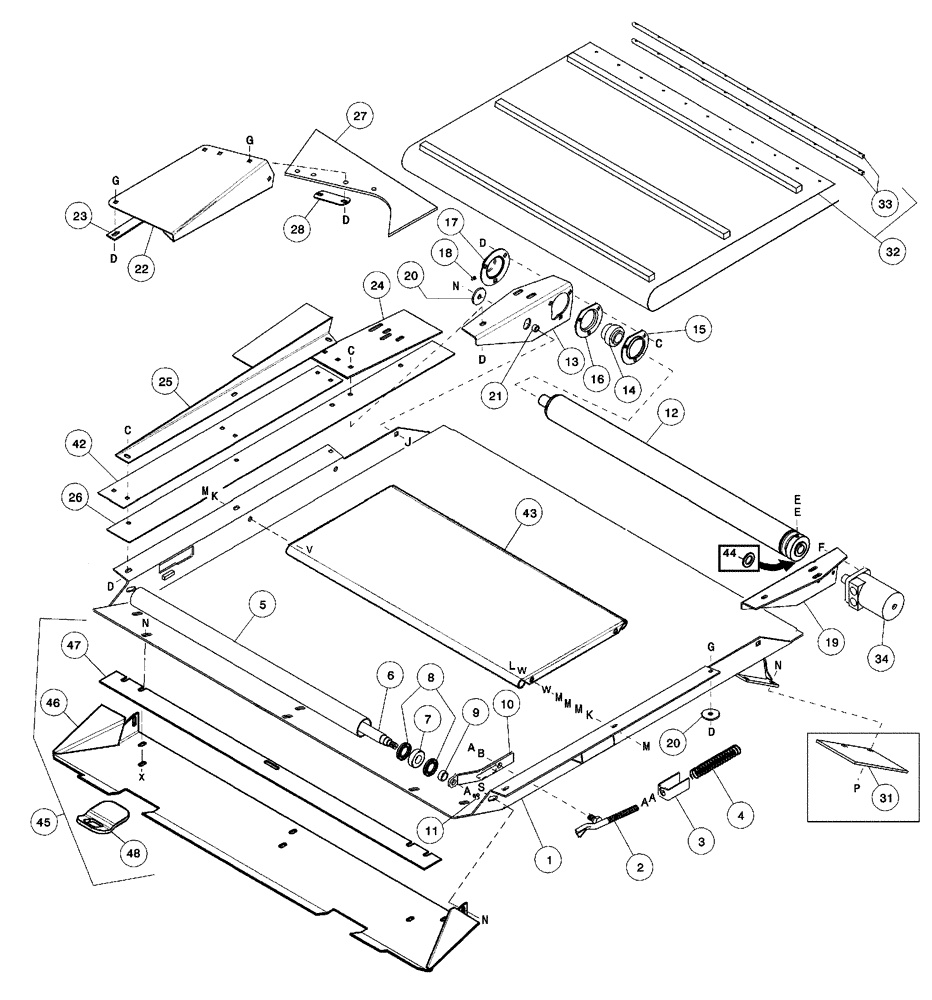

Запчасти Case IH 1052 (09-50) - COMBINE ADAPTER FEED DRAPER ASN CCC0012343 (09) - CHASSIS
№
Артикул
Название
Примечание
Количество
1
338362A1
PAN
38 Inch Deck
1шт.
1
430280A1
PAN
45 Inch Deck
1шт.
2
338363A1
ROD
2шт.
3
338327A1
SUPPORT
2шт.
4
338592A1
SPRING
2шт.
5
338326A1
TUBE,51.96 mm ID, 57.3 mm OD, 901 mm Length
Idler, 38 Inch Deck
1шт.
5
430277A1
TUBE
Idler, 45 Inch Deck
1шт.
6
338364A1
SHAFT
38 Inch Deck
1шт.
6
430278A1
SHAFT
45 Inch Deck
1шт.
7
338345A1
BALL BEARING
2шт.
8
341036A1
OIL SEAL
4шт.
9
338344A1
SPACER
2шт.
10
338366A1
ARM
Idler
2шт.
11
219-57
LUBE NIPPLE,90 Degree Elbow, 1/4" - 28 NPTF
1/4 tpr x 3/4
2шт.
12
450914A1
ROLLER
38 Inch Deck, Replaces 338323A1
1шт.
12
450915A1
ROLLER
45 Inch Deck, Replaces 430276A1
1шт.
13
428833A1
SUPPORT
Right Hand
1шт.
14
557116R91
BALL BEARING,30.16mm ID x 62mm OD x 18mm W
Inc. 557117R11
1шт.
557117R11
COLLAR
Locking
1шт.
15
338335A1
FLANGE
1шт.
16
338336A1
FLANGE
1шт.
17
338337A1
COVER
1шт.
18
219-8
LUBE NIPPLE,1/4" - 28 NPTF
1шт.
19
428832A1
SUPPORT
Left-Hand
1шт.
20
10752K
WASHER
4шт.
21
338295A1
SPACER
2шт.
22
410742A1
SUPPORT
Right Hand Rear, 38 Inch Deck, Shown
1шт.
22
410741A1
SUPPORT
Left Hand Rear, 38 Inch Deck
1шт.
22
410738A1
SUPPORT
Right Hand Rear, 45 Inch Deck
1шт.
22
410737A1
SUPPORT
Left Hand Rear, 45 Inch Deck
1шт.
23
410736A1
BAR
Outboard, 38 and 45 Inch Decks
2шт.
24
428419A1
SUPPORT
Rear, 38 and 45 Inch Decks
2шт.
25
410692A1
SUPPORT
Right Hand Front, Shown
1шт.
25
410733A1
SUPPORT
Left Hand Front
1шт.
26
341038A1
SEAL
2шт.
27
410743A1
FLAP
Rubber, 38 and 45 Inch Decks
2шт.
28
410740A1
BAR
38 and 45 Inch Decks
2шт.
31
338386A1
PLATE
1шт.
32
338361A1
DRAPER
38 Inch Deck
1шт.
32
430272A1
DRAPER
45 Inch Deck
1шт.
33
175225A1
KIT
Consists Of 33A,33B
1шт.
33a
NSS
NOT SOLD SEPARAT
Slat
2шт.
33b
NSS
NOT SOLD SEPARAT
Kit, Screws
1шт.
430274A1
LINKAGE
Inc. 33C,33D
1шт.
33c
NSS
NOT SOLD SEPARAT
Slat
2шт.
33d
NSS
NOT SOLD SEPARAT
Kit, Screws
1шт.
34
REF
INSTRUCTION
Motor, Hydraulic, Draper Drive
1шт.
See Figure 09-47
1шт.
42
338463A1
BAR
2шт.
43
382126A1
SUPPORT
1001 x 560 mm, 38 Inch Deck
1шт.
43
430275A1
SUPPORT
45 Inch Deck
1шт.
44
451176A1
WASHER
Flat, Use As a Spacer For Drive Rollers Without Stepped Hub
1шт.
45
REF
INSTRUCTION
Kit, Quick Attach Transition Plate, 38 Inch Deck, Inc. 46,47,48. Order Components, Serial Range: -CCC0012466
1шт.
45
REF
INSTRUCTION
Kit, Quick Attach Transition Plate, 45 Inch Deck, Inc. 46,47,48. Order Components., Serial Range: -CCC0012466
1шт.
46
450917A1
PAN
Quick Attach, 38 Inch Deck, Start Serial: CCC0012467
1шт.
46
450918A1
PAN
Quick Attach, 45 Inch Deck, Start Serial: CCC0012467
1шт.
47
450919A1
SHIM
Spacer Plate, Quick Attach Pan, 38 Inch Deck, Start Serial: CCC0012467
1шт.
47
450920A1
SHIM
Spacer Plate, Quick Attach Pan, 45 Inch Deck, Start Serial: CCC0012467
1шт.
48
450921A1
RETAINER
Pan, Welded to Cutterbar, Serial Range: -CCC0012466
2шт.
a
425-1010
NUT,5/8"-11, G5
1шт.
b
492-11062
BEARING WASHER,5/8"
1шт.
c
33-616
CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1", Gr 5
3/8 x 1
1шт.
e
483-1385
SET SCREW,Hex Soc, 3/8"-16 x 5/16"
3/8 x 5/16
1шт.
f
358048A1
LOCK BOLT
3/8 NC x 3/4
1шт.
g
434-620
CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/4", Gr 5
1шт.
j
434-820
CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/4", Gr 5
1/2 x 1-1/4
1шт.
k
80679
LOCK WASHER,1/20.507 CST ZND
1шт.
l
1980673C1
BOLT
1/2 x 2-1/4
1шт.
m
425-108
NUT,1/2" - 13, Gr 5
1шт.
n
231-5348
FLANGE NUT,Flg, 1/2"-13
1шт.
p
434-816
CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1", Gr 5
1/2 x 1
1шт.
s
434-816
CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1", Gr 5
1/2 x 1
1шт.
v
360-816
BOLT,Hex, 1/2" - 13 x 1", Gr 8
1/2 x 1
1шт.
w
495-11053
WASHER,1/2", SAE
(17/32" x 1-1/16" x 3/32")
1шт.
x
434-820
CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/4", Gr 5
1/2 x 1-1/4
1шт.
Выбрано товаров: 76
