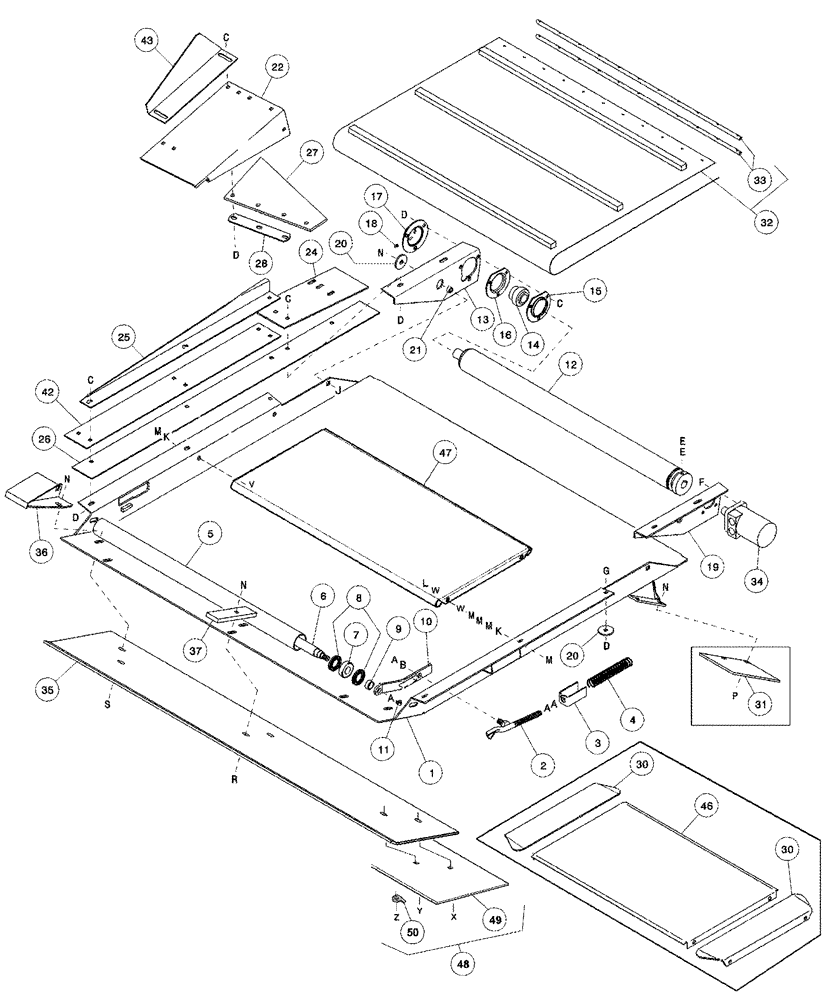

Запчасти Case IH 1052 (09-49) - COMBINE ADAPTER FEED DRAPER BSN CCC0012342 (09) - CHASSIS

1

338362A1

PAN

38 Inch Deck

1шт.

2

338363A1

ROD

2шт.

3

338327A1

SUPPORT

2шт.

4

338592A1

SPRING

2шт.

5

338326A1

TUBE,51.96 mm ID, 57.3 mm OD, 901 mm Length

Idler

1шт.

6

338364A1

SHAFT

1шт.

7

338345A1

BALL BEARING

2шт.

8

341036A1

OIL SEAL

4шт.

9

338344A1

SPACER

2шт.

10

338366A1

ARM

Idler

2шт.

11

219-57

LUBE NIPPLE,90 Degree Elbow, 1/4" - 28 NPTF

1/4 tpr x 3/4

2шт.

12

338323A1

ROLLER

Drive

1шт.

13

338464A1

SUPPORT

Right Hand, Serial Range: -CCC0012000

1шт.

13

352691A1

SUPPORT

Right Hand, Start Serial: CCC0012001

1шт.

14

557116R91

BALL BEARING,30.16mm ID x 62mm OD x 18mm W

Inc. 557117R11

1шт.

557117R11

COLLAR

Locking

1шт.

15

338335A1

FLANGE

1шт.

16

338336A1

FLANGE

1шт.

17

338337A1

COVER

1шт.

18

219-8

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

19

338465A1

SUPPORT

Left Hand, Serial Range: -CCC0012000

1шт.

19

352692A1

SUPPORT

Left Hand, Start Serial: CCC0012001

1шт.

20

10752K

WASHER

4шт.

21

338295A1

SPACER

2шт.

22

338370A1

SUPPORT

Right Hand Rear, Shown

1шт.

22

338369A1

SUPPORT

Left Hand Rear

1шт.

24

338371A1

SUPPORT

Rear

2шт.

25

338372A1

SUPPORT

Right Hand Front, Shown

1шт.

25

338374A1

SUPPORT

Left Hand Front

1шт.

26

341038A1

SEAL

Draper

2шт.

27

338375A1

FLAP

2шт.

28

338379A1

BAR

2шт.

30

338377A1

SUPPORT

Draper, Used With 381147A1

2шт.

31

338386A1

PLATE

1шт.

32

338361A1

DRAPER

Feed

1шт.

33

175225A1

KIT

Consists Of 33A, 33B

1шт.

33a

NSS

NOT SOLD SEPARAT

Slat

2шт.

33b

NSS

NOT SOLD SEPARAT

Kit, Screws

1шт.

34

338358A1

HYDRAULIC MOTOR

Draper Drive

1шт.

See Figure 09-46

1шт.

35

363095A1

SUPPORT

1шт.

36

363096A1

SUPPORT

Right-Hand, Shown

1шт.

36

363097A1

SUPPORT

Left-Hand

1шт.

37

363098A1

RETAINER

3шт.

42

338463A1

BAR

2шт.

43

338445A1

ANGLE

Right Hand, Shown

1шт.

46

381147A1

SUPPORT

954 x 426 mm, Draper

1шт.

47

382126A1

SUPPORT

1001 x 560 mm, Draper

1шт.

48

REF

INSTRUCTION

Kit, Wear Strip, Inc. 49,50, Order 382122A1 (1), 382121A1 (6)

1шт.

49

382122A1

STRIP

Plastic

1шт.

50

382121A1

LUG

6шт.

a

425-1010

NUT,5/8"-11, G5

1шт.

b

492-11062

BEARING WASHER,5/8"

1шт.

c

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

1шт.

d

473371R1

FLANGE NUT

3/8 NC

1шт.

e

483-1385

SET SCREW,Hex Soc, 3/8"-16 x 5/16"

3/8 x 5/16

1шт.

f

358048A1

LOCK BOLT

3/8 NC x 3/4

1шт.

g

434-620

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/4", Gr 5

1шт.

j

434-820

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/4", Gr 5

1/2 x 1-1/4

1шт.

k

80679

LOCK WASHER,1/20.507 CST ZND

1шт.

l

1980673C1

BOLT

1/2 x 2-1/4

1шт.

m

425-108

NUT,1/2" - 13, Gr 5

1шт.

n

231-5348

FLANGE NUT,Flg, 1/2"-13

1шт.

p

434-816

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1", Gr 5

1/2 x 1

1шт.

r

434-824

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/2", Gr 5

1/2 x 1-1/2

1шт.

s

434-816

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1", Gr 5

1/2 x 1

1шт.

v

360-816

BOLT,Hex, 1/2" - 13 x 1", Gr 8

1/2 x 1

1шт.

w

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32")

1шт.

x

434-820

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/4", Gr 5

1/2 x 1-1/4

1шт.

y

433-828

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 3/4", Gr 5

1/2 x 1-3/4

1шт.

z

433-728

CARRIAGE BOLT,Sq Nk, 7/16" - 14 x 1 3/4", Gr 5

7/16 x 1-3/4

1шт.

433-744

CARRIAGE BOLT,Sq Nk, 7/16" - 14 x 2 3/4", Gr 5

7/16 x 2-3/4

1шт.
