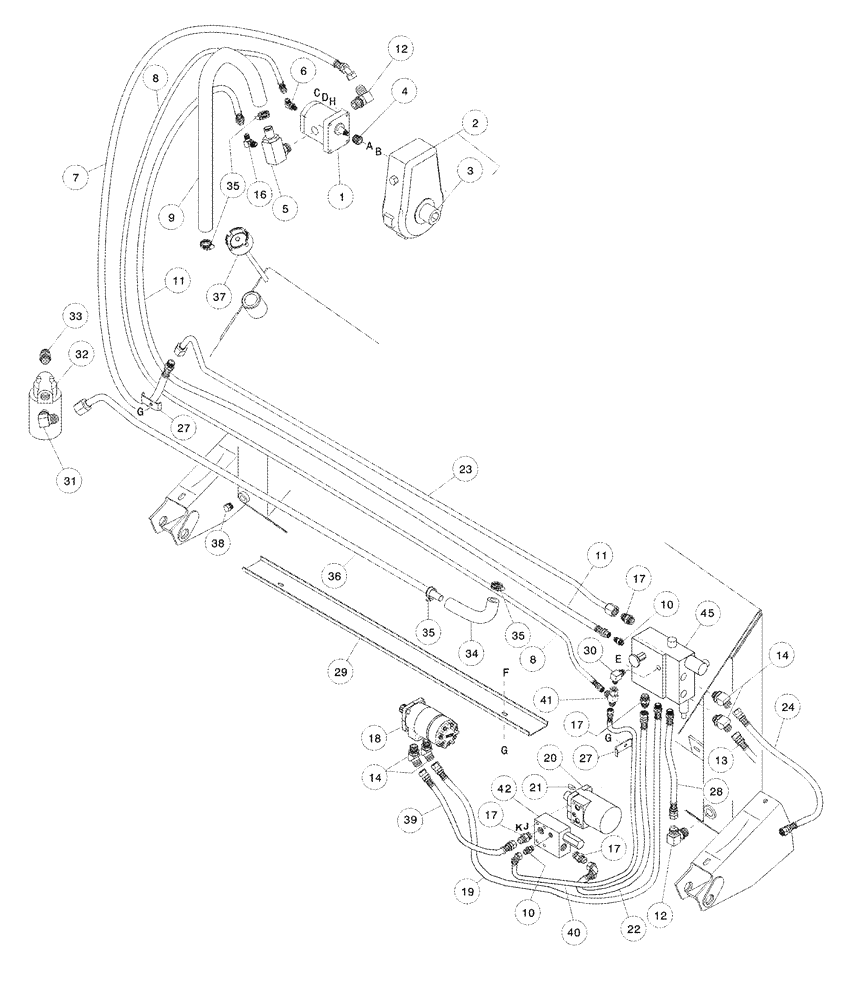

Запчасти Case IH 1052 (09-47) - 872 COMBINE ADAPTER - HYDRAULIC CIRCUIT ASN CCC0012343 (09) - CHASSIS

1

338354A1

PUMP

1шт.

338355A1

SEAL KIT

1шт.

126-111

WOODRUFF KEY,#5, 1/8" x 5/8", HT

1шт.

87407844

SNAP RING

Retaining, Internal

1шт.

2

349045A1

DRIVE

Gearbox

1шт.

See Figure 09-48

1шт.

2

349045A1R

REMAN-GEARBOX

Remanufactured GEARBOX

1шт.

2

349045A1C

CORE-GEARBOX

Return Number

1шт.

3

349047A1

SHAFT

Gearbox

1шт.

See Figure 09-48

1шт.

4

338381A1

SPLINED BUSHING

1шт.

5

338356A1

VALVE

1шт.

6

218-5278

ELBOW,9/16" - 18 JIC x 7/16" - 20 ORB

1шт.

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

7

410666A1

HOSE

1шт.

8

352185A1

HOSE

2900 mm (114-11/64 in)

1шт.

9

338382A1

HOSE

800 mm (31-1/2 in)

1шт.

10

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

1шт.

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

11

352189A1

HOSE

1шт.

12

218-5119

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1-1/16" - 12 Male ORB

2шт.

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

2шт.

13

REF

INSTRUCTION

Hose, Return, Blue

1шт.

14

218-5137

ELBOW,45 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

4шт.

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

4шт.

16

347515A1

VALVE

1шт.

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

17

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

7/8 fl x Or

4шт.

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

4шт.

18

410693A1

MOTOR

RTD Drive

1шт.

429255A1

SEAL KIT

1шт.

19

410669A1

HOSE

1шт.

20

429250A1

MOTOR, HYDRAULIC

Draper Drive, Inc. 21

1шт.

429255A1

SEAL KIT

1шт.

21

410841A1

WOODRUFF KEY

SAE 15

1шт.

22

410665A1

HOSE

1шт.

23

352181A1

TUBE ASSY.

1шт.

24

410670A1

HOSE

Orange

1шт.

27

352187A1

HOLDER

2шт.

28

410672A1

HOSE

1шт.

29

338409A1

HOLDER

1шт.

30

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

9/16 fl x adj Or

1шт.

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

31

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

1шт.

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

32

338320A1

FILTER

Assembly, Inc. 338321A1

1шт.

338321A1

ELEMENT

Element

1шт.

33

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

1шт.

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

34

338404A1

HOSE

1шт.

35

311164C1

CLAMP

4шт.

36

338403A1

LINE

1шт.

37

338324A1

PLUG

Includes Indicator

1шт.

38

338319A1

PLUG

3/4 NF, Magnetic, Inc. 237-6008

1шт.

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

39

410669A1

HOSE

1шт.

40

392740A1

HOSE

1шт.

41

218-5222

TEE,37 Degree, 9/16"-18, x 9/16"-18, Fem Sw Run

1шт.

42

429251A1

VALVE

1шт.

429263A1

VALVE

Cartridge PS10-40H-0-N-4/2.0

1шт.

45

429244A1

VALVE

1шт.

See Figure 09-47A

1шт.

a

892-11012

LOCK WASHER,M12

1шт.

b

829-23412

THIN NUT,Thin, M12 x 1.5, Cl 05

M12 - 1.5

1шт.

c

864-8030

HEX SOC SCREW,M8 x 30mm, Cl 8.8

1шт.

d

892-11008

LOCK WASHER,8mm ID

1шт.

e

409-7612

BOLT,3/8"-16 x 1.09" OAL

1шт.

f

433-628

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 3/4", Gr 5

3/8 x 1-3/4

1шт.

g

232-5316

FLANGE NUT,Flg, 3/8"-16

1шт.

h

495-11034

WASHER,5/16", SAE

(11/32 x 11/16 x 1/16")

1шт.

j

492-11031

LOCK WASHER,5/16"

1шт.

k

13-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

1шт.
