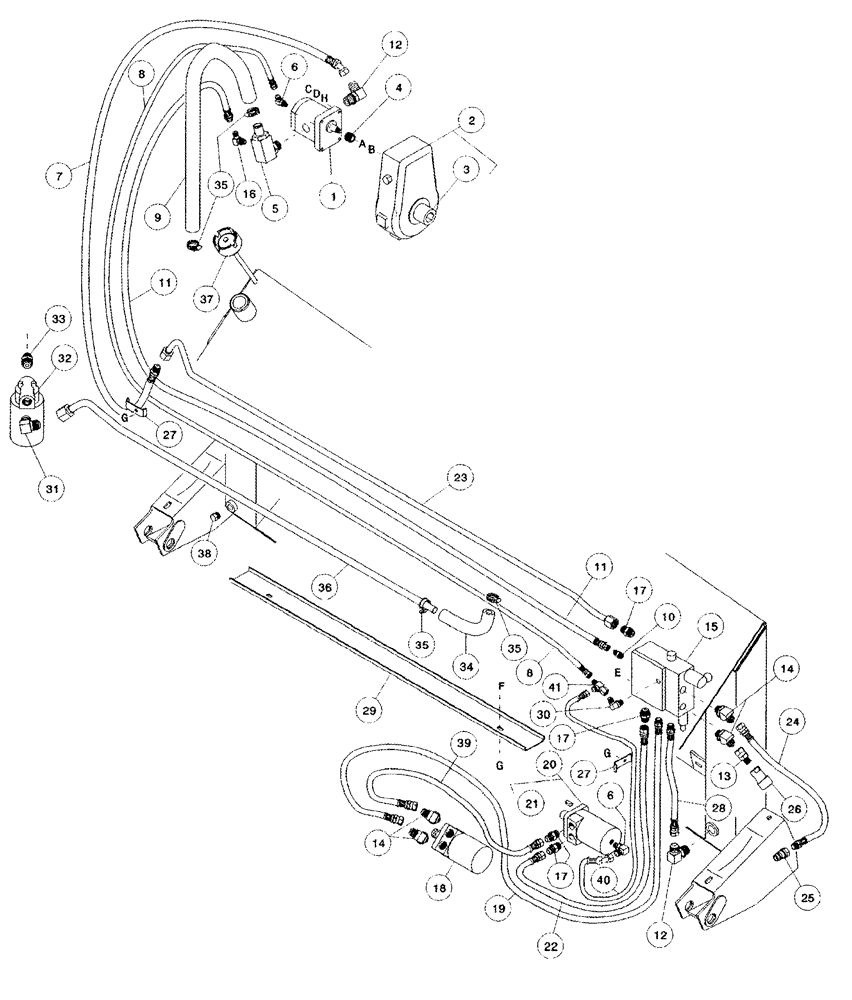

Запчасти Case IH 1052 (09-46) - 871 COMBINE ADAPTER - HYDRAULIC CIRCUIT BSN CCC0012342 (09) - CHASSIS

1

338354A1

PUMP

1шт.

338355A1

SEAL KIT

1шт.

126-111

WOODRUFF KEY,#5, 1/8" x 5/8", HT

1шт.

2

349045A1

DRIVE

Gearbox

1шт.

See Figure 09-48

1шт.

2

349045A1R

REMAN-GEARBOX

Remanufactured GEARBOX

1шт.

2

349045A1C

CORE-GEARBOX

Return Number

1шт.

3

349047A1

SHAFT

Gearbox

1шт.

See Figure 09-48

1шт.

4

338381A1

SPLINED BUSHING

1шт.

5

338356A1

VALVE

1шт.

6

218-5278

ELBOW,9/16" - 18 JIC x 7/16" - 20 ORB

1шт.

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

7

410666A1

HOSE

Replaces 352190A1

1шт.

8

352185A1

HOSE

2900 mm (114-11/64 in)

1шт.

9

338382A1

HOSE

800 mm (31-1/2 in)

1шт.

10

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

1шт.

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

11

352189A1

HOSE

1шт.

12

218-5119

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1-1/16" - 12 Male ORB

2шт.

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

2шт.

13

126618A1

FITTING

, Serial Range: -CCC0012000

1шт.

14

218-5137

ELBOW,45 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

4шт.

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

4шт.

15

352174A1

VALVE BLOCK

1шт.

338329A1

SEAL KIT

1шт.

338330A1

VALVE

Cartridge CV08-20-0-N-04, Serial Range: -CCC0012000

1шт.

352695A1

VALVE

Cartridge CV10-20-0-N-05, Start Serial: CCC0012001

1шт.

338410A1

VALVE

Cartridge RV08-20A-0-N-33/25, Serial Range: -CCC0012000

1шт.

352694A1

VALVE

Cartridge RV10-26A-0-N-30/29, Start Serial: CCC0012001

1шт.

338411A1

VALVE

Cartridge MR10-20B-0-N

1шт.

338412A1

HANDLE

Ball/Handle

1шт.

338331A1

VALVE

Cartridge CV10-20-0-N-30

1шт.

338332A1

VALVE

Cartridge EC10-40-0-N-80

1шт.

338333A1

PISTON

1шт.

278548

PLUG,Hex, 7/16"-20 ORB

1шт.

214389

PLUG,3/4" - 16 ORB

1шт.

16

347515A1

VALVE

1шт.

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

17

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

7/8 fl x Or

1шт.

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

18

338357A1

MOTOR

Auger Drive

1шт.

338359A1

SEAL KIT

1шт.

19

410669A1

HOSE

Replaces 352166A1

2шт.

20

392739A1

HYDRAULIC MOTOR

Draper Drive, Replaces 338358A1, Inc. 21

1шт.

346200A1

SEAL KIT

1шт.

21

126-124

WOODRUFF KEY,#15, 1/4" x 1", HT

1шт.

22

338392A1

HOSE

850 mm (33-15/32 in)

1шт.

410665A1

HOSE

800 mm (31-1/2 in)

1шт.

23

352181A1

TUBE ASSY.

1шт.

24

90878C1

HYDRAULIC HOSE

, Serial Range: -CCC0012000

1шт.

24

410670A1

HOSE

1100 mm (43-5/16 in), Orange, Replaces 352696A1, Start Serial: CCC0012001

1шт.

25

1336545C1

COUPLING

Male, Serial Range: -CCC0012000

1шт.

26

1336542C1

COUPLING

Female, Start Serial: CCC0012001

1шт.

123629A1

O-RING

1шт.

27

352187A1

HOLDER

2шт.

28

410672A1

HOSE

Replaces 352191A1

1шт.

29

338409A1

HOLDER

1шт.

30

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

9/16 fl x adj Or

1шт.

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

31

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

1шт.

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

32

338320A1

FILTER

1шт.

338321A1

ELEMENT

1шт.

33

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

1шт.

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

34

338404A1

HOSE

1шт.

35

311164C1

CLAMP

4шт.

36

338403A1

LINE

1шт.

37

338324A1

PLUG

Inc. Indicator

1шт.

38

338319A1

PLUG

3/4 NF, Magnetic

1шт.

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

39

410669A1

HOSE

850 mm (33-15/32 in), Replaces 352166A1

1шт.

39

410670A1

HOSE

1100 mm (43-5/16 in)

1шт.

40

392740A1

HOSE

1100 mm (43-5/16 in)

1шт.

41

218-5222

TEE,37 Degree, 9/16"-18, x 9/16"-18, Fem Sw Run

Used with 410665A1

1шт.

a

892-11012

LOCK WASHER,M12

1шт.

b

829-23412

THIN NUT,Thin, M12 x 1.5, Cl 05

M12 - 1.5

1шт.

c

864-8030

HEX SOC SCREW,M8 x 30mm, Cl 8.8

1шт.

d

892-11008

LOCK WASHER,8mm ID

1шт.

e

409-7612

BOLT,3/8"-16 x 1.09" OAL

1шт.

f

433-628

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 3/4", Gr 5

3/8 x 1-3/4

1шт.

g

232-5316

FLANGE NUT,Flg, 3/8"-16

1шт.

h

495-11034

WASHER,5/16", SAE

(11/32 x 11/16 x 1/16")

1шт.
