Запчасти Case IH 1052 (09-45) - COMBINE ADAPTER FRAME AND FLOAT ASN CCC0012343 (09) - CHASSIS

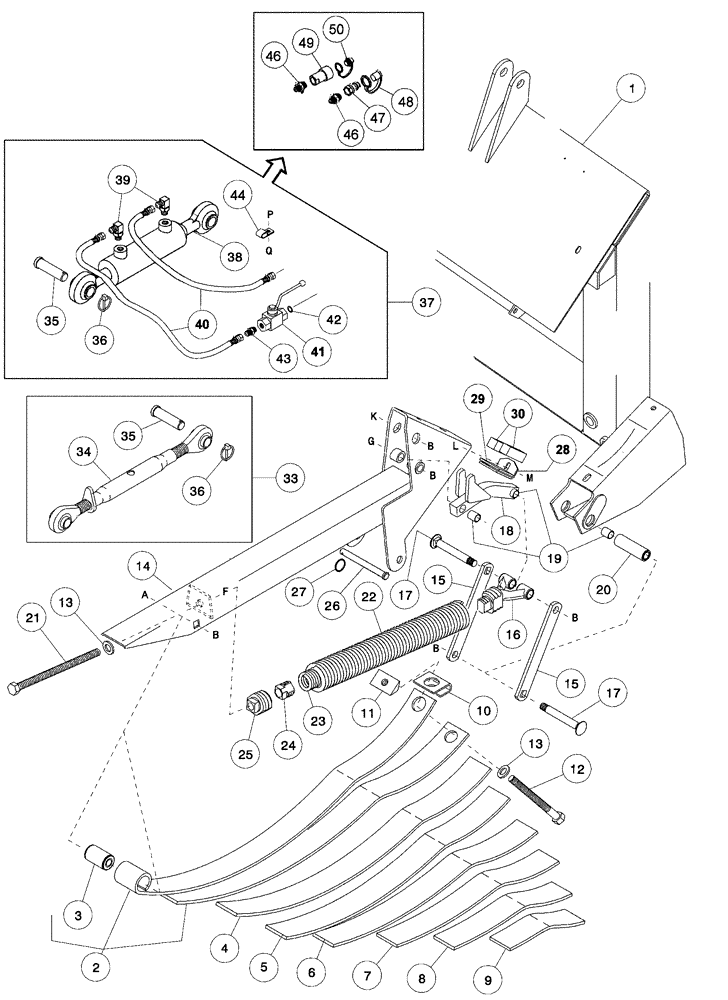

Схема запчастей Case IH 1052 - (09-45) - COMBINE ADAPTER FRAME AND FLOAT ASN CCC0012343 (09) - CHASSIS
b
13
12
24
17
46
b
19
44
9
13
6
27
18
5
15
a
26
11
b
36
49
46
42
22
40
17
b
39
14
2
50
g
36
k
16
p
38
15
41
10
35
4
35
20
3
7
l
34
23
q
21
m
29
f
b
33
47
30
8
48
25
28
1
37
43

Артикул

Название

Примечание

Количество

1

NSS

NOT SOLD SEPARAT

Frame, 872 Combine Adapter

1шт.

2

372632A1

SPRING

Set Of Two, Inc. Top Spring With Ref. 3 and Second Spring

2шт.

3

338339A1

RUBBER BUSHING

3/4 ID

2шт.

4

352687A1

SPRING

Third

2шт.

5

352688A1

SPRING

Fourth

2шт.

6

338440A1

SPRING

Fifth

2шт.

7

338441A1

SPRING

Sixth

2шт.

8

338442A1

SPRING

Seventh

2шт.

9

338444A1

SPRING

Eighth

2шт.

10

338435A1

RETAINER

2шт.

11

338378A1

PIVOT

2шт.

12

113-2730

BOLT,Hex, 3/4" - 10 x 7", Gr 5, Full Thd

2шт.

13

496-11081

WASHER,13/16" x 1 1/2" x .134", HDN

4шт.

14

338347A1

MEMBER

2шт.

15

338384A1

BAR

4шт.

16

338388A1

INSERT

Inc. Yoke

2шт.

17

340993A1

CARRIAGE BOLT

3/4 x 5-19/32

4шт.

18

338415A1

ARM

Inc. 19 (2)

2шт.

19

338395A1

BUSHING

8шт.

20

338436A1

PIN

Inc. 19 (2)

2шт.

21

443770A1

BOLT

3/4 x 13

2шт.

22

340992A1

SPRING

Outer

2шт.

23

338385A1

SPRING

Inner

2шт.

24

338390A1

INSERT

Inner

2шт.

25

338389A1

INSERT

Front

2шт.

26

344550A1

PIN

3/4 x 6-1/4

2шт.

27

410679A1

SPECIAL RING

2шт.

28

338457A1

ANGLE

Upper

2шт.

29

338454A1

SHIM

2шт.

30

338453A1

PAD

4шт.

34

338462A1

JOINT ASSY.

Center

1шт.

35

87414757

CLEVIS PIN

1 in dia, Center Link

2шт.

36

341005A1

LINCH PIN

1 in dia

2шт.

37

411383A1

PACKAGE

Hydraulic Header Angle Adjustment, Inc. 35 - 47

1шт.

38

410663A1

CYLINDER ASSY.,Double Acting, 30.16mm Rod, 140mm Stroke

1шт.

394522A1

SEAL KIT

1шт.

39

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

2шт.

40

1279526C1

HYDRAULIC HOSE,6.35 mm ID x 2285.00 mm

2шт.

41

352676A1

VALVE

1шт.

42

238-6112

O-RING,0.103" Thk x 0.487" ID, -112, Cl 6, 90 Duro

1шт.

43

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

2шт.

44

352693A1

HOLDER

1шт.

REF

INSTRUCTION

HYDRAULIC CENTER LINK COMPLETION KIT, Inc. 46 - 50

1шт.

Order 87423160 From Machinery

1шт.

46

352667A1

FITTING

Male Adapter, 3/8 Tube x 7/8 O-Ring

2шт.

47

1272399C2

QUICK MALE COUPLING

Male, 7/8 O-Ring

1шт.

48

370004A1

CAP

Dust

1шт.

49

1282338C91

COUPLING, QUICK, FEM

Female, 7/8 O-Ring

1шт.

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

50

370003A1

CAP

Dust

1шт.

a

434-1272

CARRIAGE BOLT,Sht Sq Nk, 3/4" - 10 x 4 1/2", Gr 5

3/4 NC x 4-1/2

1шт.

b

231-42412

NUT,3/4"-10, GB

3/4 NC

1шт.

f

425-1012

NUT,3/4"-10, G5

1шт.

g

413-1272

BOLT,Hex, 3/4" - 10 x 4-1/2", Gr 5

3/4 x 4-1/2

1шт.

k

413-12120

BOLT,Hex, 3/4" - 10 x 7-1/2", Gr 5

3/4 x 7-1/2; 5

1шт.

l

433-672

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 4 1/2", Gr 5

1шт.

m

232-5316

FLANGE NUT,Flg, 3/8"-16

1шт.

p

281-54910

SELF-TAP SCREW,Hex Wash Hd, 3/8"-16 x 5/8"

3/8 st x 5/8

1шт.

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

2шт.

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

2шт.
