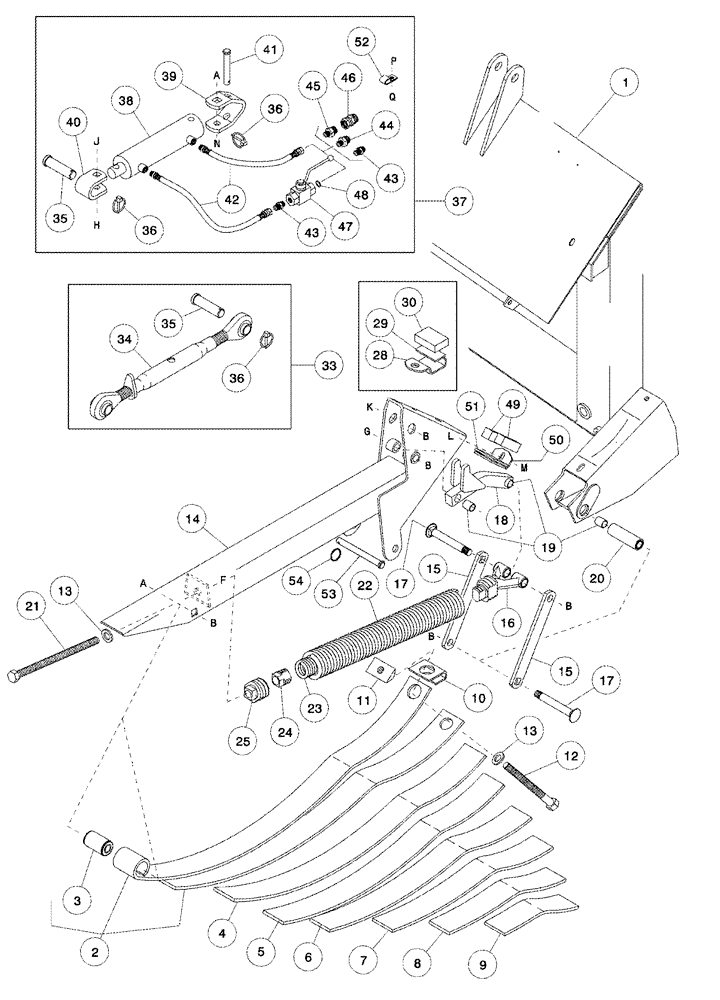

Запчасти Case IH 1052 (09-44) - COMBINE ADAPTER FRAME AND FLOAT BSN CCC0012342 (09) - CHASSIS

1

NSS

NOT SOLD SEPARAT

Frame, 871 Combine Adapter

1шт.

2

372632A1

SPRING

Set Of Two, Inc. Top Spring With Ref. 3 and Second Spring

2шт.

3

338339A1

RUBBER BUSHING

3/4 ID

2шт.

4

338439A1

SPRING

Third, Serial Range: -CCC0012000

2шт.

4

352687A1

SPRING

Third, Start Serial: CCC0012001

2шт.

5

352688A1

SPRING

Fourth, Start Serial: CCC0012001

2шт.

6

338440A1

SPRING

Fourth, Serial Range: -CCC0012000

2шт.

6

338440A1

SPRING

Fifth, Start Serial: CCC0012001

2шт.

7

338441A1

SPRING

Fifth, Serial Range: -CCC0012000

2шт.

7

338441A1

SPRING

Sixth, Start Serial: CCC0012001

2шт.

8

338442A1

SPRING

Sixth, Serial Range: -CCC0012000

2шт.

8

338442A1

SPRING

Seventh, Start Serial: CCC0012001

2шт.

9

338444A1

SPRING

Seventh, Serial Range: -CCC0012000

2шт.

9

338444A1

SPRING

Eighth, Start Serial: CCC0012001

2шт.

10

338435A1

RETAINER

2шт.

11

338378A1

PIVOT

2шт.

12

113-2730

BOLT,Hex, 3/4" - 10 x 7", Gr 5, Full Thd

2шт.

13

496-11081

WASHER,13/16" x 1 1/2" x .134", HDN

4шт.

14

338347A1

MEMBER

2шт.

15

338384A1

BAR

4шт.

16

338388A1

INSERT

Inc. Yoke

2шт.

17

340993A1

CARRIAGE BOLT

3/4 x 5-19/32

4шт.

18

338415A1

ARM

Inc. 19 (2)

2шт.

19

338395A1

BUSHING

8шт.

20

338436A1

PIN

Inc. 19 (2)

2шт.

21

113-2731

BOLT,Hex, 3/4" - 10 x 12", Gr 5, Full Thd

3/4 x 12

2шт.

22

340992A1

SPRING

Outer

2шт.

23

338385A1

SPRING

Inner

2шт.

24

338390A1

INSERT

Inner

2шт.

25

338389A1

INSERT

Front

2шт.

34

338462A1

JOINT ASSY.

Center

1шт.

35

352677A1

CLEVIS PIN

1 in dia

2шт.

36

341005A1

LINCH PIN

1 in dia, With Mechanical Adjuster

2шт.

36

341005A1

LINCH PIN

1 in dia, With Hydraulic Adjuster

3шт.

38

352671A1

CYLINDER ASSY.,Double Acting, 30mm Rod, 155mm Stroke

1шт.

1986073C1

SEAL KIT

1шт.

381146A1

PISTON

1шт.

39

352674A1

CLEVIS

1шт.

40

352672A1

CLEVIS

1шт.

41

352675A1

PIN

5/8 x 3-1/2

1шт.

42

176856A1

HYDRAULIC HOSE

2шт.

43

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

2шт.

44

218-5058

HYD CONNECTOR,9/16" - 18 Male JIC x 3/4" - 18 Male ORB

9/16 fl x 3/4 Or

2шт.

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

45

218-454

HYD CONNECTOR,9/16" - 18 Male JIC x 1/2" - 14 Male NPTF

3/8 stem x 1/2 PT

2шт.

46

222-1511

HYD CONNECTOR,Flareless, 7/8"-14 Tube x 1/2" NPT Fem

1/2 PT fem x 7/8 Or

2шт.

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

47

352676A1

VALVE

1шт.

48

238-6112

O-RING,0.103" Thk x 0.487" ID, -112, Cl 6, 90 Duro

1шт.

49

338453A1

PAD

4шт.

50

338457A1

ANGLE

Upper

2шт.

51

338454A1

SHIM

2шт.

52

352693A1

HOLDER

1шт.

53

344550A1

PIN

3/4 x 6-1/4

2шт.

54

410679A1

SPECIAL RING

2шт.

a

434-1272

CARRIAGE BOLT,Sht Sq Nk, 3/4" - 10 x 4 1/2", Gr 5

3/4 NC x 4-1/2

1шт.

b

231-42412

NUT,3/4"-10, GB

3/4 NC

1шт.

c

434-820

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/4", Gr 5

1/2 x 1-1/4

1шт.

d

231-4148

NUT,1/2"-13, GB

1/2

1шт.

e

80679

LOCK WASHER,1/20.507 CST ZND

1шт.

f

425-1012

NUT,3/4"-10, G5

1шт.

g

413-1272

BOLT,Hex, 3/4" - 10 x 4-1/2", Gr 5

3/4 x 4-1/2

1шт.

h

231-41410

NUT,5/8"-11, GB

1шт.

j

433-1048

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 3", Gr 5

5/8 x 3 in

1шт.

k

413-12120

BOLT,Hex, 3/4" - 10 x 7-1/2", Gr 5

3/4 x 7-1/2; 5

1шт.

l

433-672

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 4 1/2", Gr 5

1шт.

m

473371R1

FLANGE NUT

3/8 NC

1шт.

n

231-41412

NUT,3/4"-10, GB

3/4

1шт.

p

281-54910

SELF-TAP SCREW,Hex Wash Hd, 3/8"-16 x 5/8"

3/8 st x 5/8

1шт.

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
