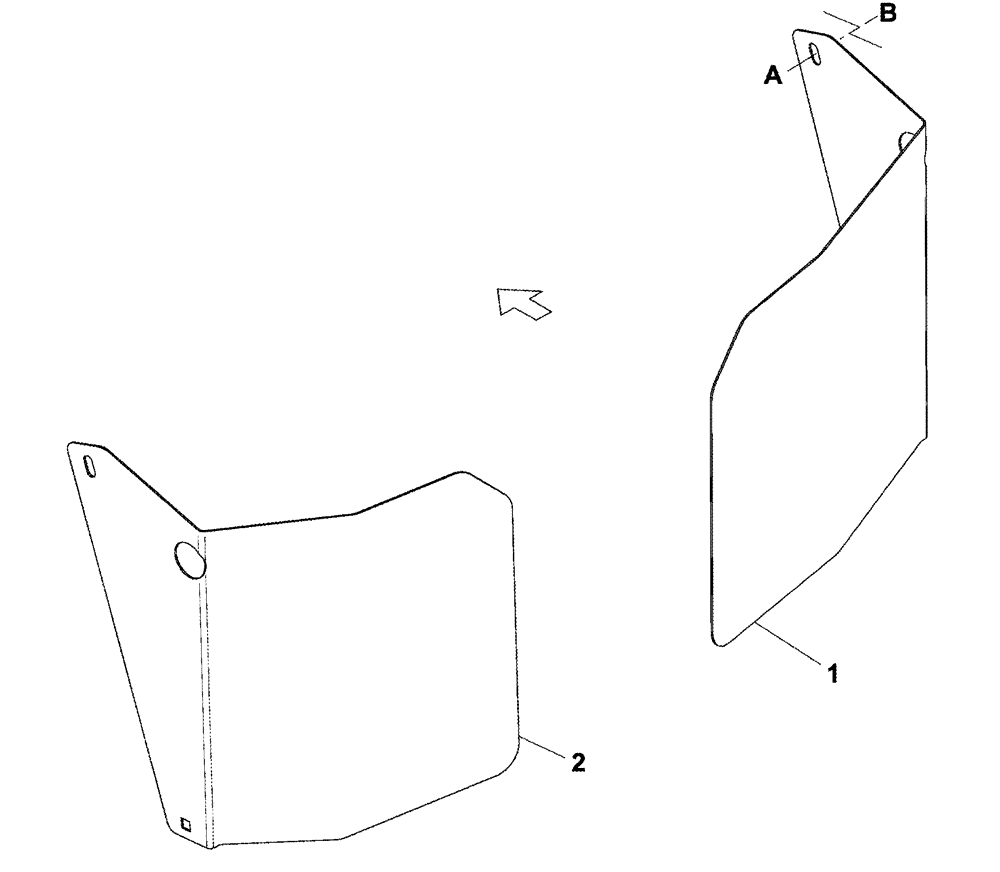

Запчасти Case IH 1052 (09-41) - EUROPEAN HEADER UPGRADES BACKSHEET CLOSURE PANELS (09) - CHASSIS

1

429290A1

PANEL

Right-Hand Outboard

1шт.

2

429294A1

PANEL

Left-Hand Outboard

1шт.

a

434-612

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

3/8 x 3/4

1шт.

b

232-5316

FLANGE NUT,Flg, 3/8"-16

1шт.
