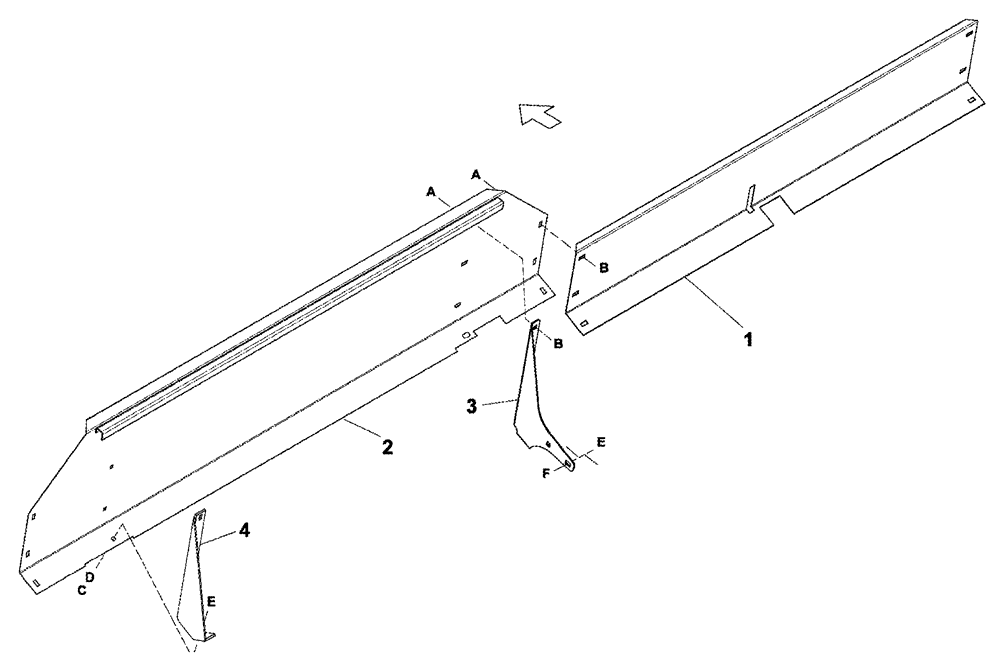

Запчасти Case IH 1052 (09-40) - EUROPEAN HEADER UPGRADES REAR SHIELDING, UPPER CROSS AUGER BSN CCC0011569 (09) - CHASSIS

1

429298A1

SHIELD

Center

1шт.

2

429307A1

SHIELD

Outer

2шт.

21.0 Foot Header

1шт.

429308A1

SHIELD

Outer

2шт.

25.0 Foot Header

1шт.

3

429299A1

SUPPORT

Left Hand Inner

1шт.

429305A1

SUPPORT

Right Hand Inner

1шт.

4

429306A1

SUPPORT

Outer

2шт.

a

434-612

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

3/8 x 3/4

1шт.

b

232-5316

FLANGE NUT,Flg, 3/8"-16

1шт.

c

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

1шт.

d

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32")

1шт.

e

231-5348

FLANGE NUT,Flg, 1/2"-13

1шт.

f

434-812

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 3/4", Gr 5

1/2 x 3/4

1шт.
