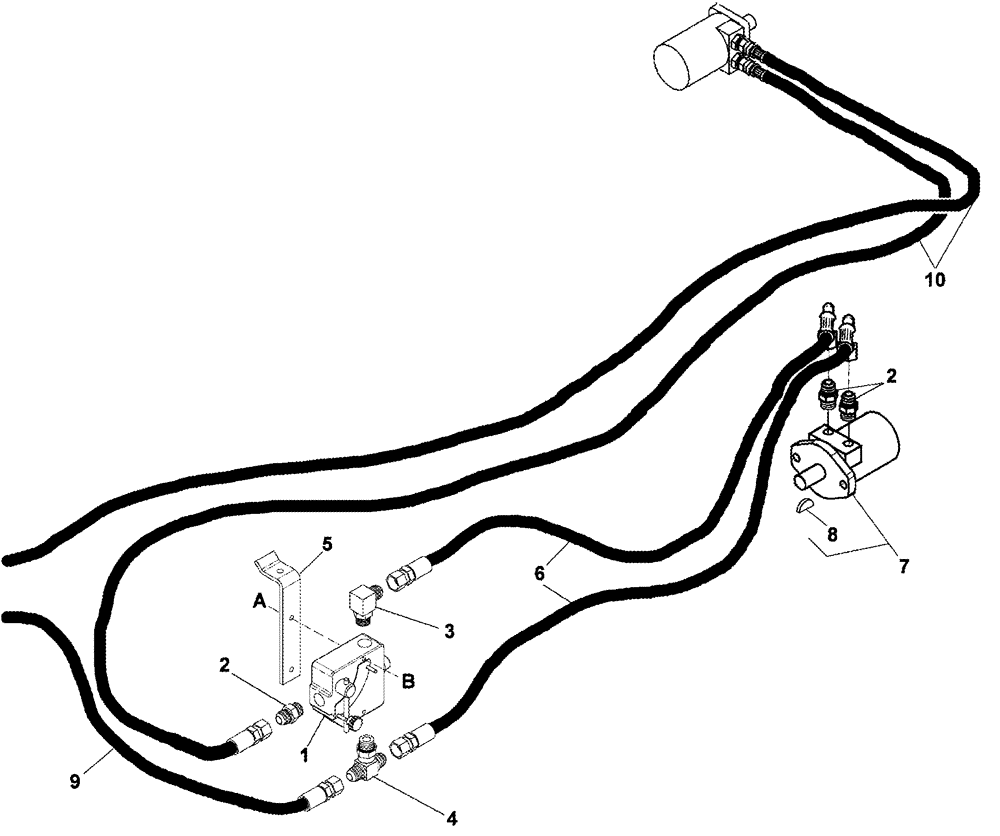

Запчасти Case IH 1052 (09-39) - EUROPEAN HEADER UPGRADES UPPER CROSS AUGER HYDRAULICS BSN CCC0011569 (09) - CHASSIS

1

429272A1

CONTROL VALVE

1шт.

1336568C1

KIT

1шт.

2

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

7/8 fl x Or, Inc. 237-6010

3шт.

3

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

Adj Or, Incl. 237-6010

1шт.

4

218-5184

TEE,7/8" - 14 Male JIC x 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

7/8-14 inch adj O-ring br

1шт.

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

5

429292A1

SUPPORT

1шт.

6

429301A1

HOSE ASSY.

2шт.

7

347541A1

MOTOR, HYDRAULIC

Inc. 126-124

1шт.

346200A1

SEAL KIT

1шт.

8

126-124

WOODRUFF KEY,#15, 1/4" x 1", HT

1шт.

9

352696A1

HOSE

1шт.

10

REF

INSTRUCTION

Hose, Existing

2шт.

a

13-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

1шт.

b

232-5345

FLANGE NUT,Flg, 5/16"-18

1шт.
