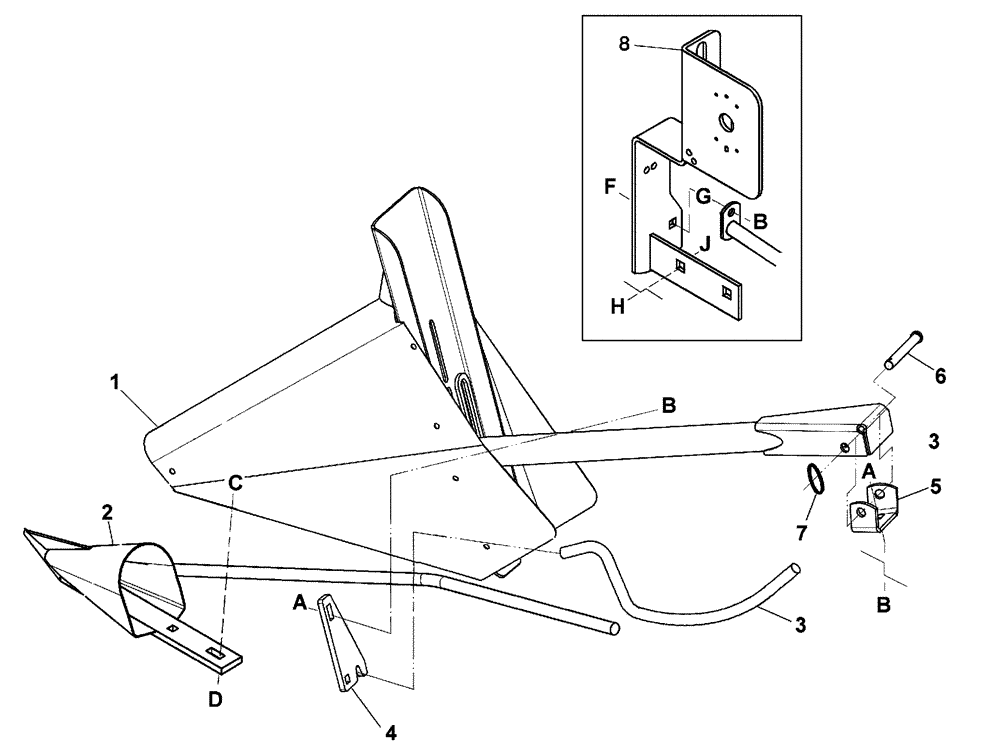

Запчасти Case IH 1052 (09-37) - EUROPEAN HEADER UPGRADES FLOATING DIVIDERS (09) - CHASSIS

REF

INSTRUCTION

FLOATING CROP DIVIDER, LH

1шт.

Order 87407102 From Machinery

1шт.

REF

INSTRUCTION

FLOATING CROP DIVIDER, RH

1шт.

Order 87407103 From Machinery

1шт.

1

370018A1

DIVIDER

Left-Hand

1шт.

1

370021A1

DIVIDER

Right-Hand

1шт.

2

370010A1

DIVIDER

Cone, Left-Hand

1шт.

2

370022A1

DIVIDER

Cone, Right-Hand

1шт.

3

370009A1

ROD

2шт.

4

370019A1

STOP

Height Control

2шт.

5

370020A1

SUPPORT

Rear

2шт.

6

370908A1

PIN

2шт.

7

410679A1

SPECIAL RING

2шт.

8

410829A1

SUPPORT

Light, Inc. Reflector, With Slow Speed Transport Option, Replaces 377445A1

1шт.

a

434-816

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1", Gr 5

Carriage, 1/2 x 1

1шт.

b

231-5348

FLANGE NUT,Flg, 1/2"-13

1шт.

c

33-616

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1", Gr 5

Carriage, 3/8 x 1

1шт.

d

231-5146

FLANGE NUT,3/8"-16

1шт.

f

434-824

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/2", Gr 5

1/2 x 1-1/2

1шт.

g

425-108

NUT,1/2" - 13, Gr 5

1шт.

h

433-1032

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 2", Gr 5

5/8 x 2

1шт.

j

231-53410

FLANGE NUT,Flg, 5/8"-11

1шт.
