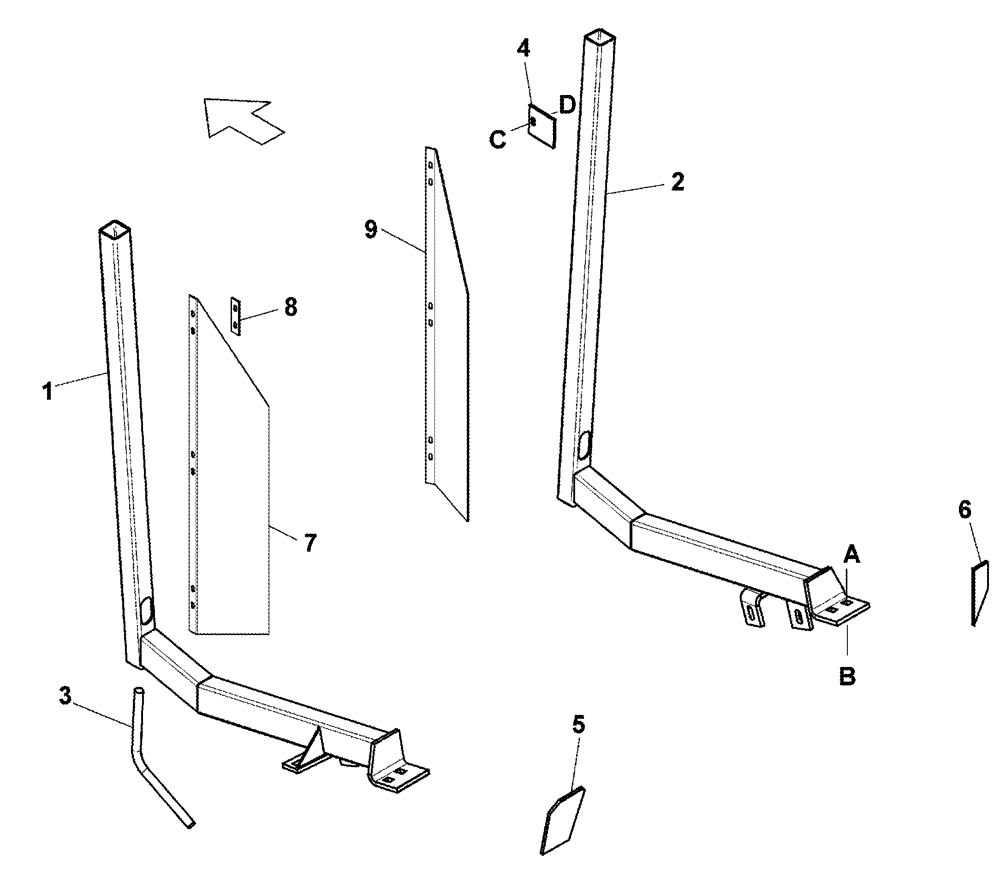

Запчасти Case IH 1052 (09-36) - EUROPEAN HEADER UPGRADES VERTICAL KNIFE SUPPORTS (09) - CHASSIS

1

429277A1

SUPPORT

Left-Hand

1шт.

2

429279A1

SUPPORT

Right-Hand

1шт.

3

429273A1

ROD

2шт.

4

429276A1

PLATE

Welded On

4шт.

5

429274A1

GUSSET

Left-Hand, Welded On

1шт.

6

429275A1

GUSSET

Right-Hand, Welded On

2шт.

7

429310A1

DEFLECTOR

Left-Hand

1шт.

8

429311A1

BAR

6шт.

9

429309A1

DEFLECTOR

Right-Hand

1шт.

a

434-820

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/4", Gr 5

1/2 x 1-1/4

1шт.

b

231-5348

FLANGE NUT,Flg, 1/2"-13

1шт.

c

434-620

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/4", Gr 5

1шт.

d

232-5316

FLANGE NUT,Flg, 3/8"-16

1шт.
