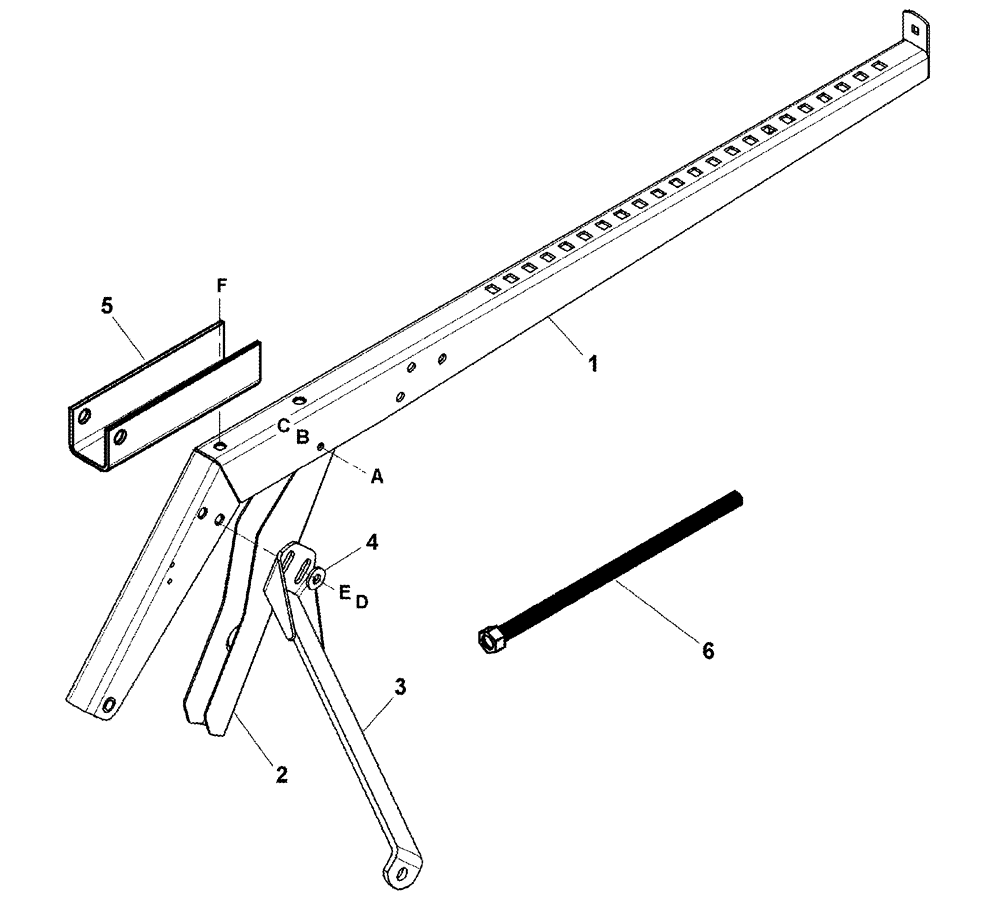

Запчасти Case IH 1052 (09-35) - EUROPEAN HEADER UPGRADES REEL SUPPORT ARMS & RELATED PARTS (09) - CHASSIS

1

429286A1

ARM

Reel Support, Left-Hand

1шт.

1

429289A1

ARM

Reel Support, Right-Hand

1шт.

2

429288A1

SUPPORT

2шт.

3

429287A1

BRACE

2шт.

4

585556R1

WASHER,16.67mm ID x 38.1mm OD x 4.76mm Thk

21/32 x 1-1/2 x 3/16

4шт.

5

429278A1

SUPPORT

Cylinder, Left-Hand

1шт.

6

429303A1

THREADED ROD

2шт.

a

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

1шт.

b

80679

LOCK WASHER,1/20.507 CST ZND

1шт.

c

425-108

NUT,1/2" - 13, Gr 5

1шт.

d

413-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5

1шт.

e

492-11062

BEARING WASHER,5/8"

1шт.

f

413-1020

BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 5

1шт.
