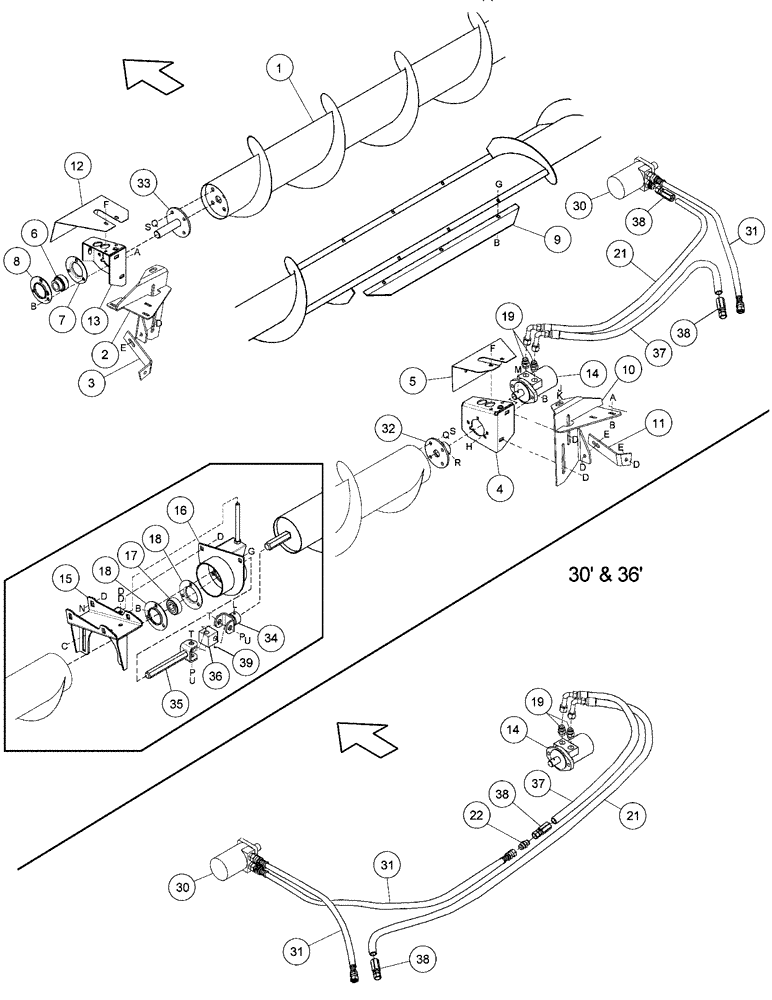

Запчасти Case IH 1052 (09-34A) - UPPER CROSS AUGER OPTION ASN CCC0011569 (09) - CHASSIS

REF

INSTRUCTION

UPPER CROSS AUGER

1шт.

21.0 Foot Header

1шт.

Order 87402772 From Machinery

1шт.

REF

INSTRUCTION

UPPER CROSS AUGER

1шт.

25.0 Foot Header

1шт.

Order 87402773 From Machinery

1шт.

REF

INSTRUCTION

UPPER CROSS AUGER

1шт.

30.0 Foot Header

1шт.

Order 87402774 From Machinery

1шт.

REF

INSTRUCTION

UPPER CROSS AUGER

1шт.

36.0 Foot Header

1шт.

Order 87402775 From Machinery

1шт.

1

87408834

AUGER

Upper Cross

1шт.

21.0 Foot Header

1шт.

1

87408835

AUGER

Upper Cross

1шт.

25.0 Foot Header

1шт.

1

87408820

AUGER

Right, Upper Cross

1шт.

30.0 Foot Header

1шт.

1

87408821

AUGER

Left, Upper Cross

1шт.

30.0 Foot Header

1шт.

1

87422354

AUGER

Left, Upper Cross

1шт.

36.0 Foot Header

1шт.

1

87422355

AUGER

Right, Upper Cross

1шт.

36.0 Foot Header

1шт.

2

87422398

SUPPORT

LH, Inc. Decal

1шт.

3

429300A1

BRACE

Left-Hand Support

1шт.

4

87408837

SUPPORT

Auger Bearing, Outer

1шт.

5

87408839

BEARING COVER

Bearing

1шт.

6

557116R91

BALL BEARING,30.16mm ID x 62mm OD x 18mm W

1шт.

7

428426A1

FLANGE

1шт.

8

428425A1

FLANGED BEARING

1шт.

9

87408924

BAR

Beater

2шт.

21.0 and 25.0 Foot Header

1шт.

9

87408822

BAR

Beater

4шт.

30.0 Foot Header

1шт.

10

87422399

SUPPORT

SUPPORT, RH, Inc. Decal

1шт.

11

429291A1

BRACE

RH Support

1шт.

12

87408838

SHIELD

Motor

1шт.

13

87408836

SUPPORT

Auger Motor End

1шт.

14

87408923

HYDRAULIC MOTOR

1шт.

47471

WOODRUFF KEY,#15, 1/4" x 1", HT

1шт.

87407627

SEAL KIT

1шт.

15

87408823

SUPPORT

Center

1шт.

30.0 and 36.0 Foot Header

1шт.

16

87408825

SUPPORT

Center Bearing

1шт.

30.0 and 36.0 Foot Header

1шт.

17

87408830

BALL BEARING,25.4mm Hex x 62mm OD x 24mm W

2шт.

30.0 and 36.0 Foot Header

1шт.

18

87407791

FLANGE

2шт.

30.0 and 36.0 Foot Header

1шт.

19

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

1шт.

20

182977

90 ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree Fem Sw

1шт.

21

87422352

HOSE ASSY.

2шт.

22

218-435

HYD CONNECTOR,7/8" - 14 Male JIC x 7/8" - 14 Male JIC

1шт.

30

392739A1

HYDRAULIC MOTOR

Left Draper Drive

1шт.

See Figures 09-11, 09-12, 09-13, 09-14

1шт.

31

REF

INSTRUCTION

HOSE, Hydraulic

1шт.

See Figures 09-11, 09-12, 09-13, 09-14

1шт.

32

87422358

HUB

LH Mount End

1шт.

33

87422359

SHAFT

RH Mount End

1шт.

34

87422361

YOKE

Flex Coupling

1шт.

30.0 and 36.0 Foot Header

1шт.

35

87422362

YOKE

Hex Shaft And Yoke

1шт.

30.0 and 36.0 Foot Header

1шт.

36

388527A1

BLOCK

Knuckle

1шт.

Replace Installed Grease Fitting With Ref 39

1шт.

30.0 and 36.0 Foot Header

1шт.

37

87422353

HOSE

Hydraulic

1шт.

38

87422351

FITTING

Hydraulic, Hose End, Female, Re-usable

2шт.

39

219-8

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

30.0 and 36.0 Foot Header

1шт.

a

33-616

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1", Gr 5

3/8 x 1

1шт.

b

232-5316

FLANGE NUT,Flg, 3/8"-16

1шт.

c

434-816

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1", Gr 5

1/2 x 1

1шт.

d

231-5348

FLANGE NUT,Flg, 1/2"-13

1шт.

e

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

1шт.

f

409-768

BOLT,Hex Flg, 3/8" - 16 x 1/2", Spcl

3/8 x 1/2

1шт.

g

434-612

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

3/8 x 3/4

1шт.

h

434-620

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/4", Gr 5

1шт.

j

429449A1

SPECIAL BOLT

1/2 x 6-1/2

1шт.

k

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32")

1шт.

l

87616

SET SCREW,3/8" - 16 x 3/4"

SCREW, Set, SS, 3/8 x 3/4

1шт.

m

485-13816

SET SCREW,Sq Hd, 3/8"-16 x 1"

1шт.

n

434-820

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/4", Gr 5

1/2 x 1-1/4

1шт.

p

495-81042

WASHER,25/32" x 1 1/2" x .120"

25/32 x 1-1/2 x 7/64

1шт.

q

80679

LOCK WASHER,1/20.507 CST ZND

1шт.

r

483-13810

SET SCREW,Hex Soc, 3/8"-16 x 5/8"

Set, 3/8 x 1

1шт.

s

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

1шт.

t

413-1256

BOLT,Hex, 3/4" - 10 x 3-1/2", Gr 5

1шт.

u

231-42412

NUT,3/4"-10, GB

3/4

1шт.
