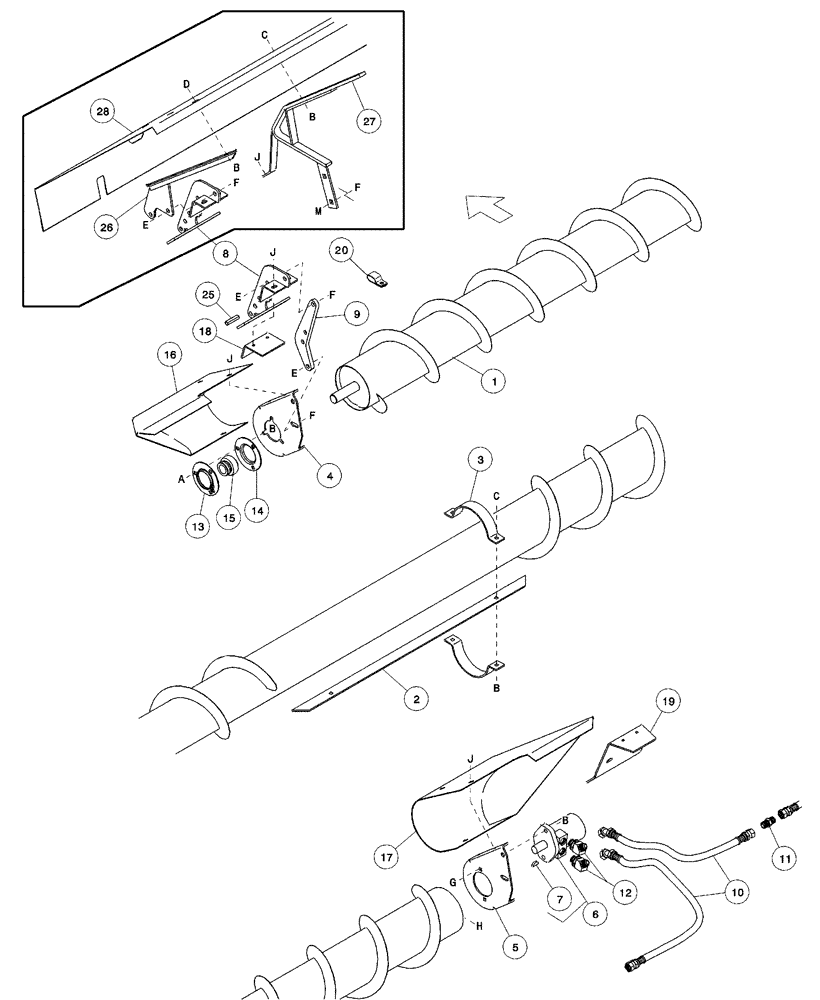

Запчасти Case IH 1052 (09-34) - UPPER CROSS AUGER OPTION BSN CCC0011569 (09) - CHASSIS
№
Артикул
Название
Примечание
Количество
1
347556A1
AUGER
Upper
1шт.
2
347560A1
BAR
2шт.
3
347569A1
CLAMP
4шт.
4
347563A1
SUPPORT
Left-Hand
1шт.
5
347562A1
SUPPORT
Right-Hand
1шт.
6
347541A1
MOTOR, HYDRAULIC
Inc. 126-124
1шт.
346200A1
SEAL KIT
1шт.
7
126-124
WOODRUFF KEY,#15, 1/4" x 1", HT
1шт.
8
362469A1
SUPPORT
2шт.
9
379564A1
EXTENSION
Replaces 347561A1
2шт.
10
347566A1
HOSE
2шт.
11
218-435
HYD CONNECTOR,7/8" - 14 Male JIC x 7/8" - 14 Male JIC
1шт.
21.0 and 25.0 Foot Header
1шт.
11
218-435
HYD CONNECTOR,7/8" - 14 Male JIC x 7/8" - 14 Male JIC
2шт.
30.0 and 36.0 Foot Header
1шт.
12
218-5137
ELBOW,45 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB
2шт.
237-6010
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
2шт.
13
428425A1
FLANGED BEARING
Inc. Lube Fitting
1шт.
14
428426A1
FLANGE
1шт.
15
557116R91
BALL BEARING,30.16mm ID x 62mm OD x 18mm W
Inc. 15A
1шт.
15a
557117R11
COLLAR
Locking, Not Shown
1шт.
16
347567A1
SHIELD
Left-Hand
1шт.
17
362470A1
SHIELD
Right-Hand
1шт.
20
470375C1
CLAMP,1", Insul, 3/8" Bolt
Hose
2шт.
25
381135A1
CONDUIT
Reel Fore And Aft
4шт.
26
370013A1
SUPPORT
Outboard, European Models
2шт.
27
370011A1
SUPPORT
Inboard, European Models
2шт.
28
370012A1
SHIELD
Left-Hand
1шт.
28
370016A1
SHIELD
Right-Hand
1шт.
a
33-616
CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1", Gr 5
3/8 x 1
1шт.
c
434-620
CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/4", Gr 5
1шт.
d
434-612
CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5
3/8 x 3/4
1шт.
e
409-7820
BOLT,Hex Flg, 1/2" - 13 x 1 1/4", Spcl
1шт.
f
231-5348
FLANGE NUT,Flg, 1/2"-13
1шт.
g
434-620
CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/4", Gr 5
1шт.
h
485-13816
SET SCREW,Sq Hd, 3/8"-16 x 1"
1шт.
j
281-54910
SELF-TAP SCREW,Hex Wash Hd, 3/8"-16 x 5/8"
3/8 st x 5/8
1шт.
m
434-820
CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/4", Gr 5
1/2 x 1-1/4
1шт.
Выбрано товаров: 39
