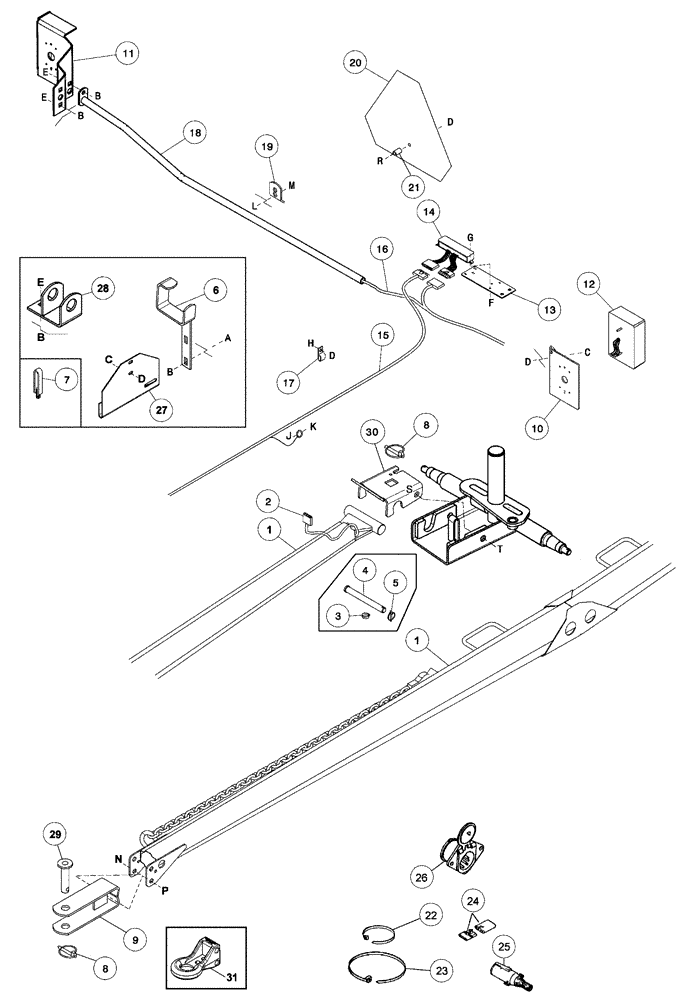

Запчасти Case IH 1052 (09-33) - TRANSPORT OPTION HITCH AND LIGHTS, NOT FOR EUROPE (09) - CHASSIS

1

347551A1

HITCH ASSY, TRAILER

Tow Pole, Serial Range: -CCC0011320

1шт.

1

410684A1

HITCH ASSY, TRAILER

Tow Pole, Start Serial: CCC0011321

1шт.

2

352646A1

HARNESS

1шт.

3

362434A1

CLAMP

, Serial Range: -CCC0011320

1шт.

4

344550A1

PIN

3/4 x 6-1/4, Serial Range: -CCC0011320

1шт.

5

341198A1

PIN

1шт.

6

347552A1

SUPPORT

Hitch Storage, Inboard End, Serial Range: -CCC0011320

1шт.

6

410683A1

SUPPORT

Hitch Storage, Inboard End, Start Serial: CCC0011321

1шт.

7

362439A1

SUPPORT

Hitch Storage, Clevis End, Serial Range: -CCC0011320

1шт.

8

362443A1

PIN

2шт.

9

347549A1

CLEVIS

1шт.

10

347503A1

SUPPORT

Rear Lamp

1шт.

11

410822A1

SUPPORT

Front Lamp, Inc. Amber Reflector

1шт.

12

369989A1

LAMP

Amber-Red

2шт.

13

347504A1

SUPPORT

1шт.

14

362463A1

LAMP

Lighting Enhancement

1шт.

15

347505A1

HARNESS

1шт.

16

347506A1

HARNESS

1шт.

17

352693A1

HOLDER

3шт.

18

362455A1

SHIELD

Harness

1шт.

19

362456A1

CLAMP

1шт.

20

352649A1

REFLECTOR

Slow Moving Vehicle

1шт.

21

379563A1

SPACER

1шт.

22

1336064C1

CABLE TIE

CABLE STRAP 190 mm (7-1/2 in)

7шт.

23

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 in

4шт.

24

1281490C1

CONNECTOR, ELEC

CONNECTOR Inc. Male and Female Connectors

1шт.

25

1960430C1

PLUG

Male

1шт.

26

1281476C1

SOCKET/RECEPTACLE

Female

1шт.

27

410678A1

SUPPORT

, Start Serial: CCC0011321

1шт.

28

410686A1

SUPPORT

Hitch Storage, Start Serial: CCC0011321

1шт.

29

410682A1

HEADED PIN

, Start Serial: CCC0011321

1шт.

30

430285A1

CHANNEL

, Start Serial: CCC0011321

1шт.

31

362451A1

HITCH ASSY, TRAILER

1шт.

a

434-816

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1", Gr 5

1/2 x 1

1шт.

b

231-5348

FLANGE NUT,Flg, 1/2"-13

1шт.

c

33-616

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1", Gr 5

3/8 x 1

1шт.

d

232-5316

FLANGE NUT,Flg, 3/8"-16

1шт.

e

434-816

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1", Gr 5

1/2 x 1

1шт.

f

451173A1

SCREW

No. 8 x 3/4

1шт.

g

451174A1

SPECIAL NUT

No. 8

1шт.

h

409-7612

BOLT,3/8"-16 x 1.09" OAL

1шт.

j

413-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

1шт.

k

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

1шт.

l

413-1016

BOLT,Hex, 5/8" - 11 x 1", Gr 5

5/8 x 1

1шт.

m

231-41410

NUT,5/8"-11, GB

1шт.

n

413-1064

BOLT,Hex, 5/8" - 11 x 4", Gr 5

5/8 x 4

1шт.

p

231-53410

FLANGE NUT,Flg, 5/8"-11

1шт.

r

433-628

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 3/4", Gr 5

3/8 x 1-3/4

1шт.

s

231-42412

NUT,3/4"-10, GB

3/4 NC

1шт.

t

413-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 5

1шт.
