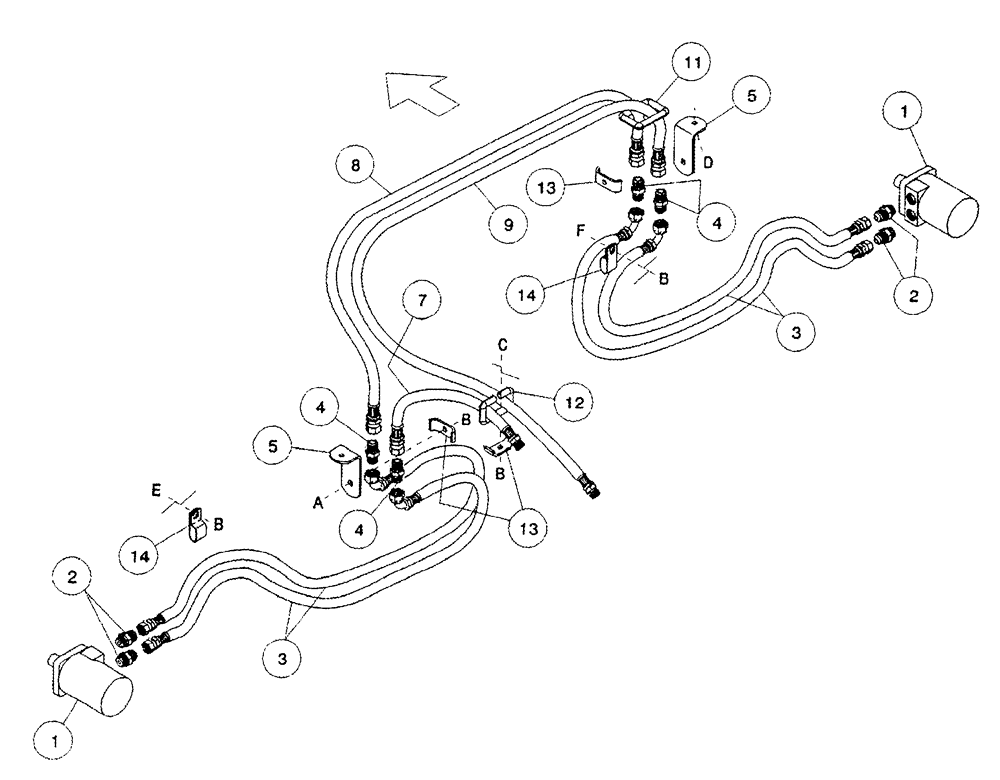

Запчасти Case IH 1052 (09-02) - HYDRAULIC CIRCUIT - DRAPER DRIVE, 21.0 AND 25.0 FOOT HEADER BSN CCC0011320 (09) - CHASSIS

1

338358A1

HYDRAULIC MOTOR

Draper Drive, Inc. 126-124

2шт.

126-124

WOODRUFF KEY,#15, 1/4" x 1", HT

2шт.

338359A1

SEAL KIT

2шт.

2

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

7/8 fl x Or

4шт.

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

4шт.

3

345968A1

HOSE

2680 mm (105-1/2 in)

4шт.

21.0 Foot Header

1шт.

3

345971A1

HOSE

3325 mm (130-29/32 in)

4шт.

25.0 Foot Header

1шт.

4

218-435

HYD CONNECTOR,7/8" - 14 Male JIC x 7/8" - 14 Male JIC

4шт.

5

345969A1

ANGLE BAR

2шт.

7

363054A1

HOSE

750 mm (29-1/2 in)

1шт.

8

345964A1

HOSE

2900 mm (114-11/64 in)

1шт.

9

363055A1

HOSE

3560 mm (140-5/32 in)

1шт.

11

346204A1

HOSE

2шт.

12

1336860C1

HOSE

1шт.

13

1954807C1

CLAMP

3шт.

14

470375C1

CLAMP,1", Insul, 3/8" Bolt

6шт.

21.0 Foot Header

1шт.

14

470375C1

CLAMP,1", Insul, 3/8" Bolt

8шт.

25.0 Foot Header

1шт.

a

433-628

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 3/4", Gr 5

3/8 x 1-3/4

1шт.

b

232-5316

FLANGE NUT,Flg, 3/8"-16

1шт.

c

433-624

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 1/2", Gr 5

1шт.

d

281-54910

SELF-TAP SCREW,Hex Wash Hd, 3/8"-16 x 5/8"

3/8 st x 5/8

1шт.

e

434-612

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

3/8 x 3/4

1шт.

f

409-7616

BOLT,Hex Flg, 3/8" - 16 x 1", Spcl

1шт.
