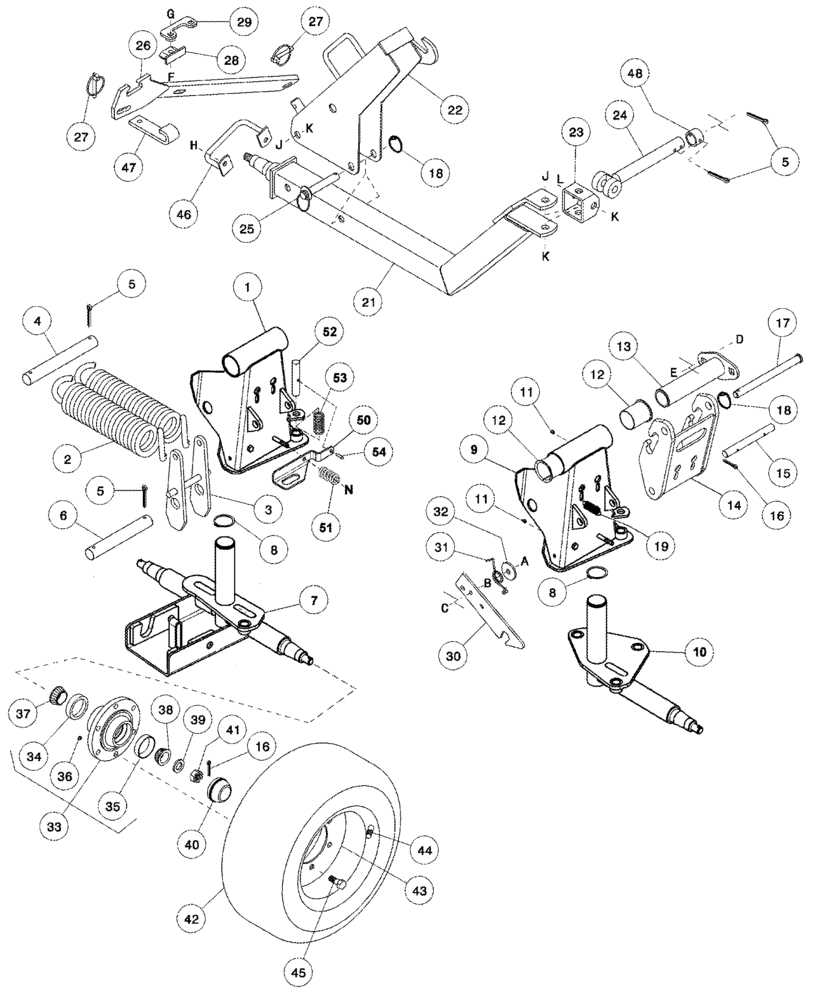

Запчасти Case IH 1052 (09-32) - TRANSPORT OPTION WHEELS AND SUPPORTS, NOT FOR EUROPE (09) - CHASSIS
№
Артикул
Название
Примечание
Количество
1
347558A1
SUPPORT
Left-Hand, Serial Range: -CCC0011320
1шт.
1
410673A1
SUPPORT
, Start Serial: CCC0011321
1шт.
2
126629A1
SPRING
Left Hand Side (2), Right Hand Side (1)
3шт.
30.0 Foot Header
1шт.
2
126629A1
SPRING
Left Hand Side (2), Right Hand Side (2)
4шт.
36.0 Foot Header
1шт.
3
362458A1
LINK
Rear Spring
2шт.
4
344632A1
PIN
Front Spring, Left-hand Wheel
1шт.
5
32-1632
COTTER PIN,1/4" x 2"
8шт.
6
362480A1
PIN
Rear Spring
2шт.
7
347513A1
SPRING
Left-hand Dual, Serial Range: -CCC0011320
1шт.
7
410677A1
SPINDLE
Left-hand Dual, Start Serial: CCC0011321
1шт.
8
103-11200
SNAP RING,#200, Ext
2шт.
9
347493A1
SUPPORT
Right-Hand, Serial Range: -CCC0011320
1шт.
9
410673A1
SUPPORT
, Start Serial: CCC0011321
1шт.
10
347496A1
SPINDLE
Right-hand Single, Serial Range: -CCC0011320
1шт.
10
410675A1
SPINDLE
Right-hand Single, Start Serial: CCC0011321
1шт.
11
219-8
LUBE NIPPLE,1/4" - 28 NPTF
4шт.
12
1969215C1
BUSHING,51.2mm ID x 55.3mm OD x 62mm L
4шт.
13
345938A1
TUBE,208 mm Length
Pivot
2шт.
14
381464A1
CHANNEL
Link, Replaces 347498A1
2шт.
15
381148A1
PIN
3/4 x 6-29/32, Replaces 344550A1
2шт.
16
32-1220
COTTER PIN,3/16" x 1 1/4"
5шт.
17
381145A1
PIN
3/4 x 9-1/4
2шт.
18
410679A1
SPECIAL RING
3шт.
19
347523A1
SPRING
4шт.
20
345910A1
PIN
3/4 x 4-1/2, Serial Range: -CCC0011320
2шт.
21
347550A1
SUPPORT
Right-Hand Trans-axle
1шт.
22
362466A1
SUPPORT
Strut, Inc. Decals
1шт.
23
362476A1
TUBE,60 mm Length
Pivot
1шт.
24
381143A1
PIVOT
Right Hand, Front
1шт.
25
362462A1
PIN
1шт.
26
347481A1
SUPPORT
1шт.
27
362443A1
PIN
2шт.
28
362453A1
LUG
1шт.
29
362468A1
RETAINER
Anchor, Used When Guards Are Above Cutterbar
1шт.
30
347494A1
LATCH
Right Hand Front, Storage
1шт.
31
347507A1
TORSION SPRING
1шт.
32
10752K
WASHER
1шт.
33
346201A1
HUB
Inc. 34,35, Inc. Grease Fitting Ref 36
4шт.
34
478793R1
BEARING CUP
Inner
4шт.
35
651817R1GV
BEARING CUP
Value, Bearing Cup
4шт.
36
219-1
LUBE NIPPLE,1/8" - 27 NPTF
4шт.
37
96173C1
BEARING ASSY,38.1mm ID x 25.4mm W
Inner, Inc. Seal
4шт.
39
496-11081
WASHER,13/16" x 1 1/2" x .134", HDN
4шт.
40
820166C1
CAP
4шт.
41
425-1312
SLOTTED NUT,3/4"-16, G5
3/4 NF
4шт.
42
345935A1
TYRE/TIRE
4шт.
43
345936A1
RIM
WHEEL 6.00 x 10
4шт.
44
387841R91
VALVE
4шт.
45
347024A1
WHEEL BOLT
9/16 NF x 1-1/4
22шт.
46
347489A1
HANDLE
Right Hand Front
1шт.
47
347565A1
RETAINER
1шт.
48
381142A1
SPACER
1шт.
50
410681A1
LEVER ASSY.
, Start Serial: CCC0011321
2шт.
51
825994C1
SPRING
, Start Serial: CCC0011321
2шт.
52
410674A1
HEADED PIN
, Start Serial: CCC0011321
2шт.
53
410676A1
SPRING
, Start Serial: CCC0011321
2шт.
54
38-12032
LOCK PIN,5/16" x 2", Slotted
5/16" x 2", Slotted, Start Serial: CCC0011321
2шт.
a
363092A1
BOLT
1/2 X 1-3/4
1шт.
b
425-108
NUT,1/2" - 13, Gr 5
1шт.
c
231-5348
FLANGE NUT,Flg, 1/2"-13
1шт.
d
433-1020
CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 1 1/4", Gr 5
5/8 x 1-1/4
1шт.
e
231-53410
FLANGE NUT,Flg, 5/8"-11
1шт.
f
326-748
BOLT,Hex, 7/16" - 14 x 3", Gr 8
1шт.
f
362459A1
BOLT
7/16 x 2-1/4;8, Used When Guards Are Below Cutterbar, Head Down
1шт.
f
362459A1
BOLT
7/16 x 2-1/4;8, Transaxle Outboard of Header Leg, Used When Guards Are Above Cutterbar, Head Up
1шт.
f
326-748
BOLT,Hex, 7/16" - 14 x 3", Gr 8
Transaxle Inboard of Header Leg, Used when Guards are above Cutterbar, Head Down
1шт.
g
231-4117
LOCK NUT,7/16"-14, GB
7/16
1шт.
h
362461A1
BOLT
9/16 x 1-1/2
1шт.
j
413-1272
BOLT,Hex, 3/4" - 10 x 4-1/2", Gr 5
3/4 x 4-1/2
1шт.
k
231-41412
NUT,3/4"-10, GB
3/4
1шт.
l
413-1264
BOLT,Hex, 3/4" - 10 x 4", Gr 5
3/4 x 4
1шт.
Выбрано товаров: 77
