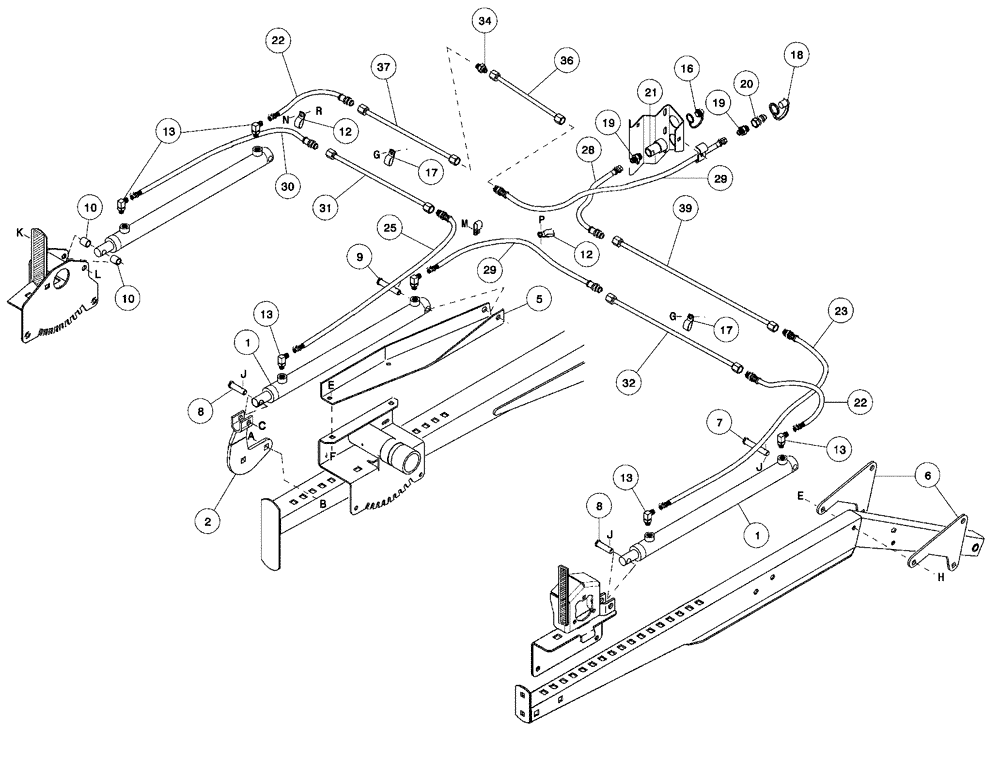

Запчасти Case IH 1052 (09-31) - HYDRAULIC FORE-AFT REEL 3 ARM POSITIONER, 30.0 AND 36.0 FOOT HEADER ASN CCC0011154 (09) - CHASSIS

1

345942A1

CYLINDER,Double Acting, 22.23mm Rod, 550mm Stroke

Reel Fore And Aft

3шт.

345950A1

SEAL KIT

3шт.

2

87414756

SUPPORT

Reel Drive Arm, Replaces 345939A1

1шт.

5

345951A1

CHANNEL

Reel Drive Arm

1шт.

6

345952A1

LUG

Cylinder Mount

4шт.

7

126602A1

PIN

5/8 x 3-1/4

2шт.

8

427-10225

CLEVIS PIN,5/8" x 1 1/4"

5/8 x 2-1/4

2шт.

9

427-10300

CLEVIS PIN,5/8" x 4"

5/8 x 2-3/4

1шт.

10

346202A1

SPACER

5/8 ID x 15/16

2шт.

12

344825A1

SUPPORT

5шт.

30.0 and 36.0 Foot Header

1шт.

13

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

6шт.

16

370003A1

CAP

1шт.

17

352693A1

HOLDER

7шт.

30.0 Foot Header

1шт.

17

352693A1

HOLDER

10шт.

36.0 Foot Header

1шт.

18

370004A1

CAP

1шт.

19

352667A1

FITTING

9/16 fl x Or

2шт.

20

1272399C2

QUICK MALE COUPLING

7/8 NF, Self-Sealing, Male

1шт.

21

1282338C91

COUPLING, QUICK, FEM

7/8 NF, Self-Sealing

1шт.

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

22

370043A1

HOSE

1100 mm (43-5/16 inch)

2шт.

23

370046A1

HOSE

1530 mm (60-1/4 in)

1шт.

25

372308A1

HOSE

1шт.

28

370042A1

HOSE

1000 mm (39-3/8 in)

1шт.

29

370041A1

HOSE

2150 mm (84-21/32 in)

2шт.

30

370045A1

HOSE

1775 mm (69-7/8 in)

1шт.

31

346006A1

HYD TUBE,9.52 mm OD

1шт.

30.0 Foot Header

1шт.

31

345997A1

HYD TUBE,9.52 mm OD

1шт.

36.0 Foot Header

1шт.

32

370050A1

HYD TUBE,9.52 mm OD

1шт.

30.0 Foot Header

1шт.

32

370049A1

HYD TUBE,9.52 mm OD

1шт.

36.0 Foot Header

1шт.

34

218-734

UNION,9/16"-18, 37 Degree x 9/16"-18, 37 Degree

9/16 fl

1шт.

36.0 Foot Header

1шт.

36

131541A1

LINE

1шт.

36.0 Foot Header

1шт.

37

370051A1

HYD TUBE,9.52 mm OD

1шт.

30.0 Foot Header

1шт.

37

345991A1

HYD TUBE,9.5 mm OD

1шт.

36.0 Foot Header

1шт.

39

345990A1

HYD TUBE,9.5 mm OD

1шт.

30.0 Foot Header

1шт.

39

370048A1

HYD TUBE,9.52 mm OD

1шт.

36.0 Foot Header

1шт.

a

434-1024

CARRIAGE BOLT,Sht Sq Nk, 5/8" - 11 x 1 1/2", Gr 5

5/8 x 1-1/2

1шт.

b

231-53410

FLANGE NUT,Flg, 5/8"-11

1шт.

c

495-11066

WASHER,5/8", SAE

21/32 x 1-5/16 x 3/32, As Required For Pin Head Clearance To Reel End Shield

1шт.

e

231-5348

FLANGE NUT,Flg, 1/2"-13

1шт.

f

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

1шт.

g

281-54910

SELF-TAP SCREW,Hex Wash Hd, 3/8"-16 x 5/8"

3/8 st x 5/8

1шт.

h

433-856

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 3 1/2", Gr 5

1/2 x 3-1/2

1шт.

j

32-1220

COTTER PIN,3/16" x 1 1/4"

1шт.

k

413-1064

BOLT,Hex, 5/8" - 11 x 4", Gr 5

5/8 x 4

1шт.

l

129-390

JAM NUT,Jam, 5/8"-11, G5

1шт.

m

33-616

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1", Gr 5

3/8 x 1

1шт.

n

434-612

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

3/8 x 3/4

1шт.

p

409-7616

BOLT,Hex Flg, 3/8" - 16 x 1", Spcl

1шт.

r

232-5316

FLANGE NUT,Flg, 3/8"-16

1шт.
