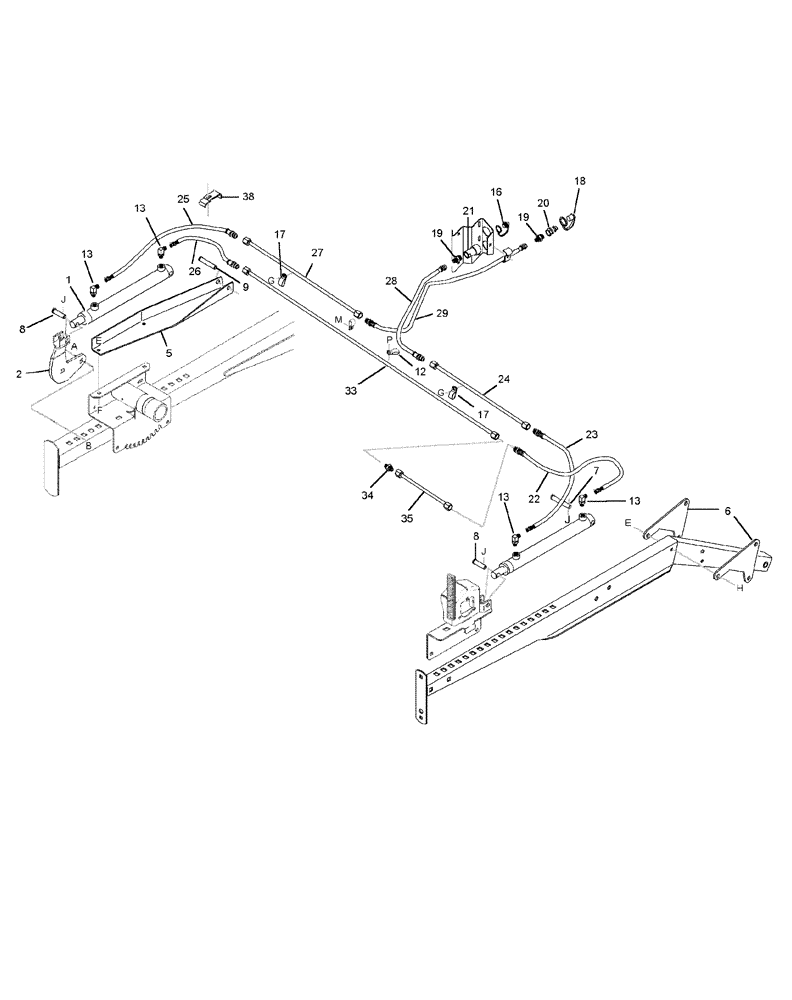

Запчасти Case IH 1052 (09-30) - HYDRAULIC FORE-AFT REEL 2 ARM POSITIONER, 21.0 AND 25.0 FOOT HEADER ASN CCC0011154 (09) - CHASSIS

1

345942A1

CYLINDER,Double Acting, 22.23mm Rod, 550mm Stroke

Reel Fore And Aft

2шт.

345950A1

SEAL KIT

2шт.

2

87414756

SUPPORT

Reel Drive Arm, Replaces 345939A1

1шт.

5

345951A1

CHANNEL

Reel Drive Arm

1шт.

6

345952A1

LUG

Cylinder Mount

2шт.

7

126602A1

PIN

5/8 x 3-1/4

1шт.

8

427-10225

CLEVIS PIN,5/8" x 1 1/4"

5/8 x 2-1/4

2шт.

9

427-10300

CLEVIS PIN,5/8" x 4"

5/8 x 2-3/4

1шт.

12

344825A1

SUPPORT

1шт.

21.0 Foot Header

1шт.

12

344825A1

SUPPORT

4шт.

25.0 Foot Header

1шт.

13

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

4шт.

16

370003A1

CAP

1шт.

17

352693A1

HOLDER

6шт.

21.0 Foot Header

1шт.

17

352693A1

HOLDER

7шт.

25.0 Foot Header

1шт.

18

370004A1

CAP

1шт.

19

352667A1

FITTING

9/16 fl x Or

2шт.

20

1272399C2

QUICK MALE COUPLING

7/8 NF, Self-Sealing, Male

1шт.

21

1282338C91

COUPLING, QUICK, FEM

7/8 NF, Self-Sealing

1шт.

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

22

370043A1

HOSE

1100 mm (43-5/16 inch)

1шт.

23

370046A1

HOSE

1530 mm (60-1/4 in)

1шт.

24

370025A1

HYD TUBE,9.52 mm OD

1шт.

21.0 Foot Header

1шт.

24

372309A1

HYD TUBE

1шт.

25.0 Foot Header

1шт.

25

372308A1

HOSE

1шт.

26

370040A1

HOSE

2250 mm (88-37/64 in)

1шт.

27

370026A1

HYD TUBE,9.52 mm OD

1шт.

21.0 Foot Header

1шт.

27

370027A1

HYD TUBE,9.52 mm OD

1шт.

25.0 Foot Header

1шт.

28

370042A1

HOSE

1000 mm (39-3/8 in)

1шт.

29

370041A1

HOSE

2150 mm (84-21/32 in)

1шт.

33

345997A1

HYD TUBE,9.52 mm OD

1шт.

21.0 Foot Header

1шт.

33

345991A1

HYD TUBE,9.5 mm OD

1шт.

25.0 Foot Header

1шт.

34

218-734

UNION,9/16"-18, 37 Degree x 9/16"-18, 37 Degree

9/16 fl, 25.0 Foot Header

1шт.

35

345990A1

HYD TUBE,9.5 mm OD

1шт.

21.0 Foot Header

1шт.

38

370017A1

CLAMP

1шт.

a

434-1024

CARRIAGE BOLT,Sht Sq Nk, 5/8" - 11 x 1 1/2", Gr 5

5/8 x 1-1/2

1шт.

b

231-53410

FLANGE NUT,Flg, 5/8"-11

1шт.

e

231-5348

FLANGE NUT,Flg, 1/2"-13

1шт.

f

434-816

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1", Gr 5

1/2 x 1

1шт.

g

281-54910

SELF-TAP SCREW,Hex Wash Hd, 3/8"-16 x 5/8"

3/8 st x 5/8

1шт.

h

433-856

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 3 1/2", Gr 5

1/2 x 3-1/2

1шт.

j

32-1220

COTTER PIN,3/16" x 1 1/4"

1шт.

m

33-616

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1", Gr 5

3/8 x 1

1шт.

n

434-612

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

3/8 x 3/4

1шт.

p

409-7616

BOLT,Hex Flg, 3/8" - 16 x 1", Spcl

1шт.

r

232-5316

FLANGE NUT,Flg, 3/8"-16

1шт.
