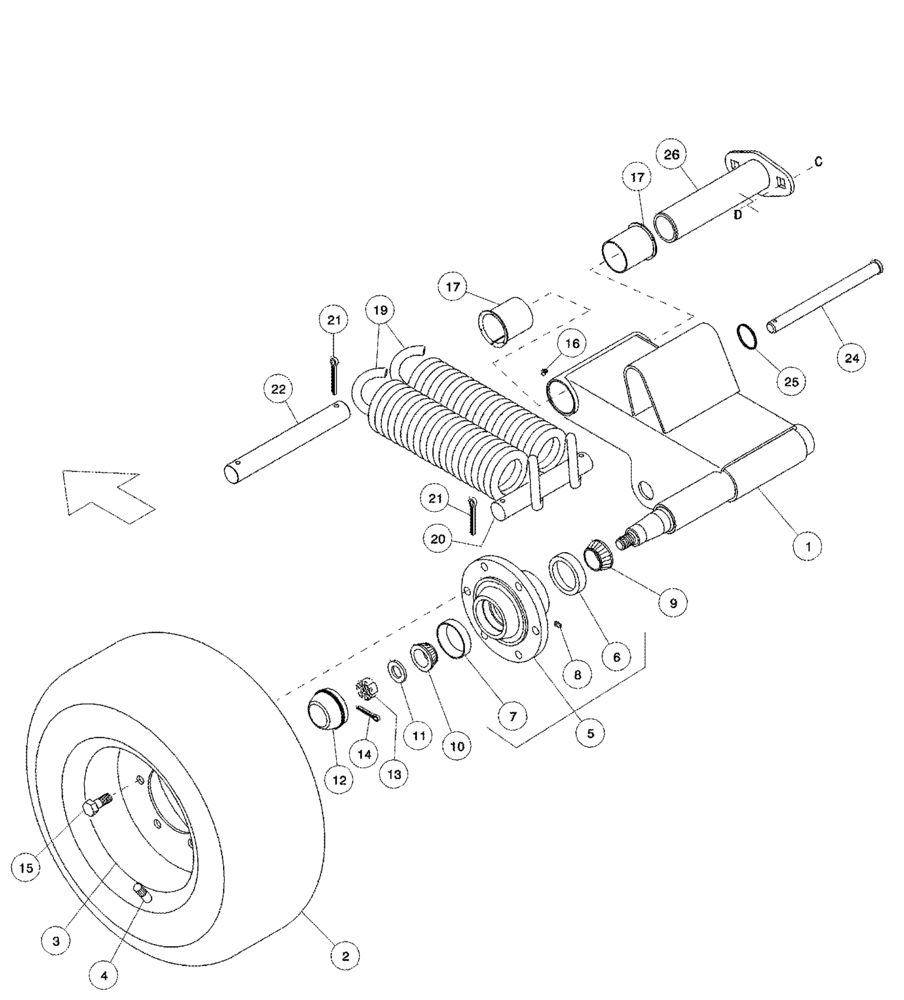

Запчасти Case IH 1052 (09-27) - GAUGE WHEEL (09) - CHASSIS

1

345933A1

ARM

Left-Hand, Shown

1шт.

1

345934A1

ARM

Right-Hand

1шт.

2

345935A1

TYRE/TIRE

2шт.

3

345936A1

RIM

WHEEL 6.00 x 10

2шт.

4

387841R91

VALVE

2шт.

5

346201A1

HUB

Inc. 6,7, Inc. Grease Fitting

2шт.

6

478793R1

BEARING CUP

Inner

2шт.

7

651817R1

BEARING CUP

Outer

2шт.

7

651817R1GV

BEARING CUP

Value, Bearing Cup

2шт.

8

219-14

LUBE NIPPLE,1/4" NPTF

2шт.

8

219-1

LUBE NIPPLE,1/8" - 27 NPTF

2шт.

9

96173C1

BEARING ASSY,38.1mm ID x 25.4mm W

Inc. Seal, Inner

2шт.

10

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

Inc. Seal, Outer

2шт.

11

496-11081

WASHER,13/16" x 1 1/2" x .134", HDN

2шт.

12

820166C1

CAP

2шт.

13

425-1312

SLOTTED NUT,3/4"-16, G5

3/4 NF

2шт.

14

32-1220

COTTER PIN,3/16" x 1 1/4"

2шт.

15

347024A1

WHEEL BOLT

9/16 NF x 1-1/4

12шт.

16

219-8

LUBE NIPPLE,1/4" - 28 NPTF

2шт.

17

1969215C1

BUSHING,51.2mm ID x 55.3mm OD x 62mm L

4шт.

19

126629A1

SPRING

Left Hand Side (2), Right Hand Side (1)

3шт.

30.0 Foot Header

1шт.

19

126629A1

SPRING

Left Hand Side (2), Right Hand Side (2)

4шт.

36.0 Foot Header

1шт.

20

345937A1

PIN

2шт.

21

32-1632

COTTER PIN,1/4" x 2"

8шт.

22

344632A1

PIN

2шт.

24

381145A1

PIN

3/4 x 9-1/4

2шт.

25

410679A1

SPECIAL RING

2шт.

26

345938A1

TUBE,208 mm Length

Pivot

2шт.

c

433-1020

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 1 1/4", Gr 5

5/8 x 1-1/4

1шт.

d

231-53410

FLANGE NUT,Flg, 5/8"-11

1шт.
