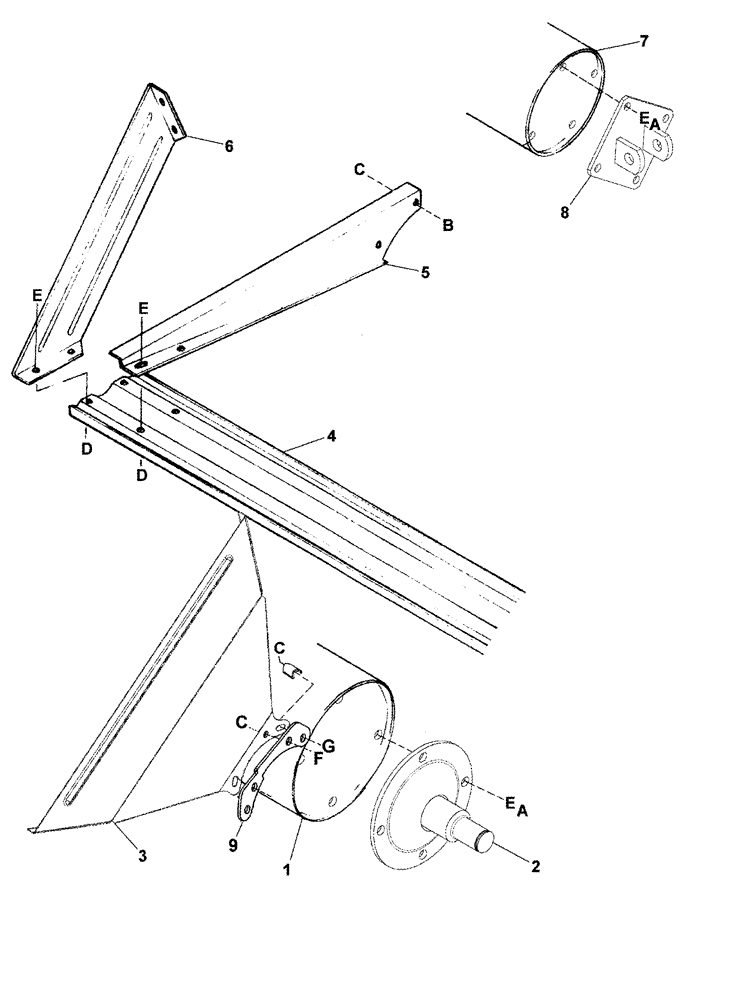

Запчасти Case IH 1052 (09-26) - BAT REEL (09) - CHASSIS

1

398694A1

TUBE

Left Hand Reel

1шт.

30.0 Foot Header

1шт.

1

398655A1

TUBE

Left Hand Reel

1шт.

36.0 Foot Header

1шт.

2

396002A1

SHAFT

Outboard

2шт.

3

352708A1

SHIELD

Reel End, Left Hand, Outboard, Serial Range: -CCC0011320

5шт.

3

410823A1

SHIELD

Reel End, Left Hand, Outboard, Start Serial: CCC0011321

5шт.

3

352707A1

SHIELD

Reel End, Right Hand, Outboard, Serial Range: -CCC0011320

5шт.

3

410835A1

SHIELD

Reel End, Right Hand, Outboard, Start Serial: CCC0011321

5шт.

4

398695A1

BAT

10шт.

30.0 Foot Header

1шт.

4

398657A1

BAT

Left-Hand

5шт.

36.0 Foot Header

1шт.

4

398691A1

BAT

Right-Hand

5шт.

36.0 Foot Header

1шт.

5

126694A1

ARM

30шт.

30.0 Foot Header

1шт.

5

126694A1

ARM

40шт.

36.0 Foot Header

1шт.

6

126640A1

SHIELD

Inboard End

10шт.

7

398696A1

TUBE

Right-Hand

1шт.

30.0 Foot Header

1шт.

7

398692A1

TUBE

Right-Hand

1шт.

36.0 Foot Header

1шт.

8

398693A1

LARGE PLATE

PLATE, LARGE

1шт.

9

406785A1

SUPPORT

End Cover

10шт.

a

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

1шт.

b

433-624

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 1/2", Gr 5

1шт.

c

232-5316

FLANGE NUT,Flg, 3/8"-16

1шт.

d

409-768

BOLT,Hex Flg, 3/8" - 16 x 1/2", Spcl

3/8 x 1/2

1шт.

e

80679

LOCK WASHER,1/20.507 CST ZND

1шт.

f

409-7616

BOLT,Hex Flg, 3/8" - 16 x 1", Spcl

1шт.

g

433-632

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 2", Gr 5

1шт.
