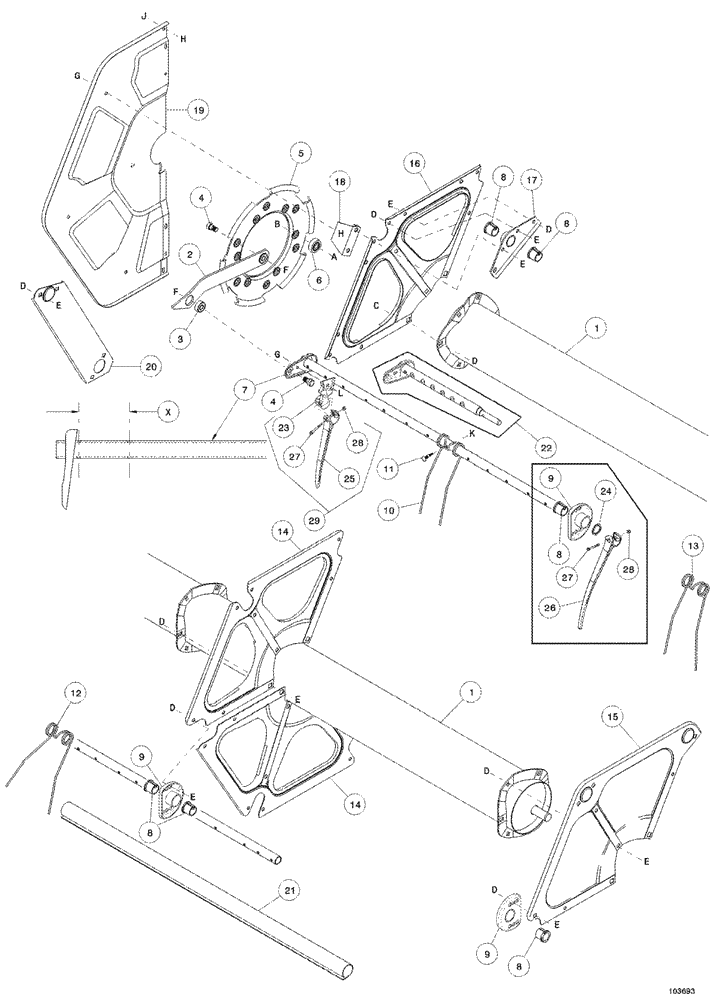

Запчасти Case IH 1052 (09-25) - PICKUP REEL (09) - CHASSIS
№
Артикул
Название
Примечание
Количество
1
345870A1
TUBE,6233 mm Length
Center
1шт.
21.0 Foot Header
1шт.
1
345871A1
TUBE,7452 mm Length
Center
1шт.
25.0 Foot Header
1шт.
1
345867A1
TUBE
Center, Split Reel Left-hand
1шт.
30.0 Foot Header
1шт.
1
345879A1
TUBE,4198 mm Length
Center, Split Reel Right-hand
1шт.
30.0 Foot Header
1шт.
1
372318A1
TUBE,5018 mm Length
Center, Split Reel Left-hand
1шт.
36.0 Foot Header
1шт.
1
372319A1
TUBE,5412 mm Length
Center, Split Reel Right-hand
1шт.
36.0 Foot Header
1шт.
2
344796A1
ARM
Inc. 3 (2)
6шт.
21.0 and 25.0 Foot Header
1шт.
2
344796A1
ARM
Inc. 3 (2)
12шт.
30.0 and 36.0 Foot Header
1шт.
3
344806A1
BALL BEARING,17 mm ID x 40 mm OD x 12 mm
12шт.
21.0 and 25.0 Foot Header
1шт.
3
344806A1
BALL BEARING,17 mm ID x 40 mm OD x 12 mm
24шт.
30.0 and 36.0 Foot Header
1шт.
4
347305A1
LOCK BOLT
12шт.
21.0 and 25.0 Foot Header
1шт.
4
347305A1
LOCK BOLT
24шт.
30.0 and 36.0 Foot Header
1шт.
5
346552A1
RING
1шт.
21.0 and 25.0 Foot Header
1шт.
5
346552A1
RING
2шт.
30.0 and 36.0 Foot Header
1шт.
6
344805A1
BALL BEARING,15.9 mm ID x 50.81 mm OD x 15 mm
6шт.
21.0 and 25.0 Foot Header
1шт.
6
344805A1
BALL BEARING,15.9 mm ID x 50.81 mm OD x 15 mm
12шт.
30.0 and 36.0 Foot Header
1шт.
7
345917A1
TUBE
Pickup Finger, Outboard Stagger (X=90 mm)
3шт.
21.0 Foot Header
1шт.
7
345920A1
TUBE
Pickup Finger, Outboard Stagger (X=90 mm)
3шт.
25.0 Foot Header
1шт.
7
345889A1
TUBE
Pickup Finger, Outboard Stagger (X=90 mm)
6шт.
30.0 Foot Header
1шт.
7
347520A1
TUBE
Pickup Finger, Outboard Stagger (X=90 mm), Left Hand Reel
3шт.
36.0 Foot Header
1шт.
7
347522A1
TUBE
Pickup Finger, Outboard Stagger (X=90 mm), Right Hand Reel
3шт.
36.0 Foot Header
1шт.
7
345918A1
TUBE
Pickup Finger, Inboard Stagger (X=140 mm)
3шт.
21.0 Foot Header
1шт.
7
345921A1
TUBE
Pickup Finger, Inboard Stagger (X=140 mm)
3шт.
25.0 Foot Header
1шт.
7
345916A1
TUBE
Pickup Finger, Inboard Stagger (X=140 mm)
6шт.
30.0 Foot Header
1шт.
7
347521A1
TUBE
Pickup Finger, Inboard Stagger (X=140 mm), Left Hand Reel
3шт.
36.0 Foot Header
1шт.
7
105164A1
TUBE
Pickup Finger, Inboard Stagger (X=140 mm), Right Hand Reel
3шт.
36.0 Foot Header
1шт.
8
345853A1
BUSHING,31.75mm ID x 45mm OD x 34mm L
With Steel Fingers
51шт.
21.0 Foot Header
1шт.
8
345853A1
BUSHING,31.75mm ID x 45mm OD x 34mm L
With Steel Fingers
63шт.
25.0 Foot Header
1шт.
8
345853A1
BUSHING,31.75mm ID x 45mm OD x 34mm L
With Steel Fingers
93шт.
30.0 Foot Header
1шт.
8
345853A1
BUSHING,31.75mm ID x 45mm OD x 34mm L
With Steel Fingers
105шт.
36.0 Foot Header
1шт.
8
345853A1
BUSHING,31.75mm ID x 45mm OD x 34mm L
With Plastic Fingers
30шт.
21.0 Foot Header
1шт.
8
345853A1
BUSHING,31.75mm ID x 45mm OD x 34mm L
With Plastic Fingers
36шт.
25.0 Foot Header
1шт.
8
345853A1
BUSHING,31.75mm ID x 45mm OD x 34mm L
With Plastic Fingers
54шт.
30.0 Foot Header
1шт.
8
345853A1
BUSHING,31.75mm ID x 45mm OD x 34mm L
With Plastic Fingers
60шт.
36.0 Foot Header
1шт.
9
345878A1
HOUSING
Bushing
24шт.
21.0 Foot Header
1шт.
9
345878A1
HOUSING
Bushing
30шт.
25.0 Foot Header
1шт.
9
345878A1
HOUSING
Bushing
42шт.
30.0 Foot Header
1шт.
9
345878A1
HOUSING
Bushing
48шт.
36.0 Foot Header
1шт.
10
345854A1
TINE
With Steel Fingers
174шт.
21.0 Foot Header
1шт.
10
345854A1
TINE
With Steel Fingers
216шт.
25.0 Foot Header
1шт.
10
345854A1
TINE
With Steel Fingers
252шт.
30.0 Foot Header
1шт.
10
345854A1
TINE
With Steel Fingers
300шт.
36.0 Foot Header
1шт.
11
346553A1
BOLT
5/16 NC
174шт.
21.0 Foot Header
1шт.
11
346553A1
BOLT
5/16 N
216шт.
25.0 Foot Header
1шт.
11
346553A1
BOLT
5/16 NC
264шт.
30.0 Foot Header
1шт.
11
346553A1
BOLT
5/16 NC
312шт.
36.0 Foot Header
1шт.
12
347510A1
FINGER
Double, Right-hand End of Left-hand Reel
6шт.
30.0 and 36.0 Foot Header
1шт.
13
347511A1
FINGER
Double, Left-hand End of Right-hand Reel
6шт.
30.0 and 36.0 Foot Header
1шт.
14
345872A1
DISC
1/3 Disc
9шт.
21.0 Foot Header
1шт.
14
345872A1
DISC
1/3 Disc
12шт.
25.0 Foot Header
1шт.
14
345872A1
DISC
1/3 Disc
15шт.
30.0 Foot Header
1шт.
14
345872A1
DISC
1/3 Disc
18шт.
36.0 Foot Header
1шт.
15
345873A1
DISC
1/3 Disc, Tail End
3шт.
16
345855A1
DISC
1/3 Disc, Cam End
3шт.
21.0 and 25.0 Foot Header
1шт.
16
345855A1
DISC
1/3 Disc, Cam End
6шт.
30.0 and 36.0 Foot Header
1шт.
17
345857A1
HOUSING
Cam End
6шт.
21.0 and 25.0 Foot Header
1шт.
17
345857A1
HOUSING
Cam End
12шт.
30.0 and 36.0 Foot Header
1шт.
18
345876A1
SUPPORT
6шт.
21.0 and 25.0 Foot Header
1шт.
18
345876A1
SUPPORT
12шт.
30.0 and 36.0 Foot Header
1шт.
19
345877A1
SHIELD
Cam End
2шт.
21.0 and 25.0 Foot Header
1шт.
19
345877A1
SHIELD
Cam End
4шт.
30.0 and 36.0 Foot Header
1шт.
20
345875A1
SHIELD
Inboard End, Split Reel Right-Hand
6шт.
30.0 and 36.0 Foot Header
1шт.
21
430323A1
COVER
1805 mm (71-1/8)
1шт.
21
345931A1
COVER
100 mm (4 in), Inboard end
6шт.
30.0 and 36.0 Foot Header
1шт.
22
345932A1
FINGER
Repair Kit, With Steel Fingers
1шт.
22
410833A1
KIT
Repair Kit, With Plastic Fingers
1шт.
23
444556A1
SUPPORT
End Finger, Steel Finger Reel
6шт.
23
444556A1
SUPPORT
End Finger, Without Split Reel, With Plastic Fingers
6шт.
23
444556A1
SUPPORT
End Finger, With Split Pick-up Reel, With Plastic Fingers
12шт.
24
347528A1
WASHER
With Steel Fingers
6шт.
24
347528A1
WASHER
With Plastic Fingers
24шт.
21.0 Foot Header
1шт.
24
347528A1
WASHER
With Plastic Fingers
30шт.
25.0 Foot Header
1шт.
24
347528A1
WASHER
With Plastic Fingers
42шт.
30.0 Foot Header
1шт.
24
347528A1
WASHER
With Plastic Fingers
48шт.
36.0 Foot Header
1шт.
25
444558A1
FINGER
Plastic, End, Steel Finger Reel
6шт.
25
444558A1
FINGER
Plastic, End, Without Split Reel, With Plastic Fingers
6шт.
25
444558A1
FINGER
Plastic, End, With Split Pick-up Reel, With Plastic Fingers
12шт.
26
381139A1
TINE
Plastic, With Plastic Finger Reel
372шт.
Also Order REF 27 and 28 For Headers BSN CCC0011203
1шт.
21.0 Foot Header
1шт.
26
381139A1
TINE
Plastic, With Plastic Finger Reel
450шт.
Also Order REF 27 and 28 For Headers BSN CCC0011203
1шт.
25.0 Foot Header
1шт.
26
381139A1
TINE
Plastic, With Plastic Finger Reel
522шт.
Also Order REF 27 and 28 For Headers BSN CCC0011203
1шт.
30.0 Foot Header
1шт.
26
381139A1
TINE
Plastic, With Plastic Finger Reel
618шт.
Also Order REF 27 and 28 For Headers BSN CCC0011203
1шт.
36.0 Foot Header
1шт.
26
381139A1
TINE
Plastic, With Steel Finger Reel
9шт.
Also Order REF 27 and 28 For Headers BSN CCC0011203
1шт.
27
463-31028
SCREW,Hex Wash Hd, #10-24 x 1 3/4"
No. 10 x 1-3/4, With Plastic Finger Reel
378шт.
21.0 Foot Header
1шт.
27
463-31028
SCREW,Hex Wash Hd, #10-24 x 1 3/4"
No. 10 x 1-3/4, With Plastic Finger Reel
456шт.
25.0 Foot Header
1шт.
27
463-31028
SCREW,Hex Wash Hd, #10-24 x 1 3/4"
No. 10 x 1-3/4, With Plastic Finger Reel
534шт.
30.0 Foot Header
1шт.
27
463-31028
SCREW,Hex Wash Hd, #10-24 x 1 3/4"
No. 10 x 1-3/4, With Plastic Finger Reel
630шт.
36.0 Foot Header
1шт.
27
463-31028
SCREW,Hex Wash Hd, #10-24 x 1 3/4"
No. 10 x 1-3/4, With Steel Finger Reel
15шт.
28
231-14409
NUT,#10-24, GB
With Plastic Finger Reel
378шт.
21.0 Foot Header
1шт.
28
231-14409
NUT,#10-24, GB
With Plastic Finger Reel
456шт.
25.0 Foot Header
1шт.
28
231-14409
NUT,#10-24, GB
With Plastic Finger Reel
534шт.
30.0 Foot Header
1шт.
28
231-14409
NUT,#10-24, GB
With Plastic Finger Reel
630шт.
36.0 Foot Header
1шт.
28
231-14409
NUT,#10-24, GB
With Steel Finger Reel
15шт.
29
444557A1
FINGER
Assembly, Inc. 1 Each Of 23, 25, 27, 28, G And L
1шт.
a
129-390
JAM NUT,Jam, 5/8"-11, G5
1шт.
b
413-1020
BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 5
1шт.
c
358046A1
SCREW,Torx, Truss HD, 1/2" - 13 x 1", Gr 5
1/2 NC x 1
1шт.
d
231-5348
FLANGE NUT,Flg, 1/2"-13
1шт.
e
358045A1
SCREW,Torx, Truss HD, 1/2" - 13 x 3/4", Gr 5
1/2 NC x 3/4
1шт.
f
129-391
JAM NUT,Jam, 5/8"-18, G5
1шт.
g
434-612
CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5
3/8 x 3/4
1шт.
j
358047A1
SCREW,Torx, Truss HD, 3/8" - 16 x 1/2", Gr 5
3/8 NC x 1/2
1шт.
k
231-4145
NUT,5/16"-18, GB
1шт.
l
231-5146
FLANGE NUT,3/8"-16
1шт.
Выбрано товаров: 187
