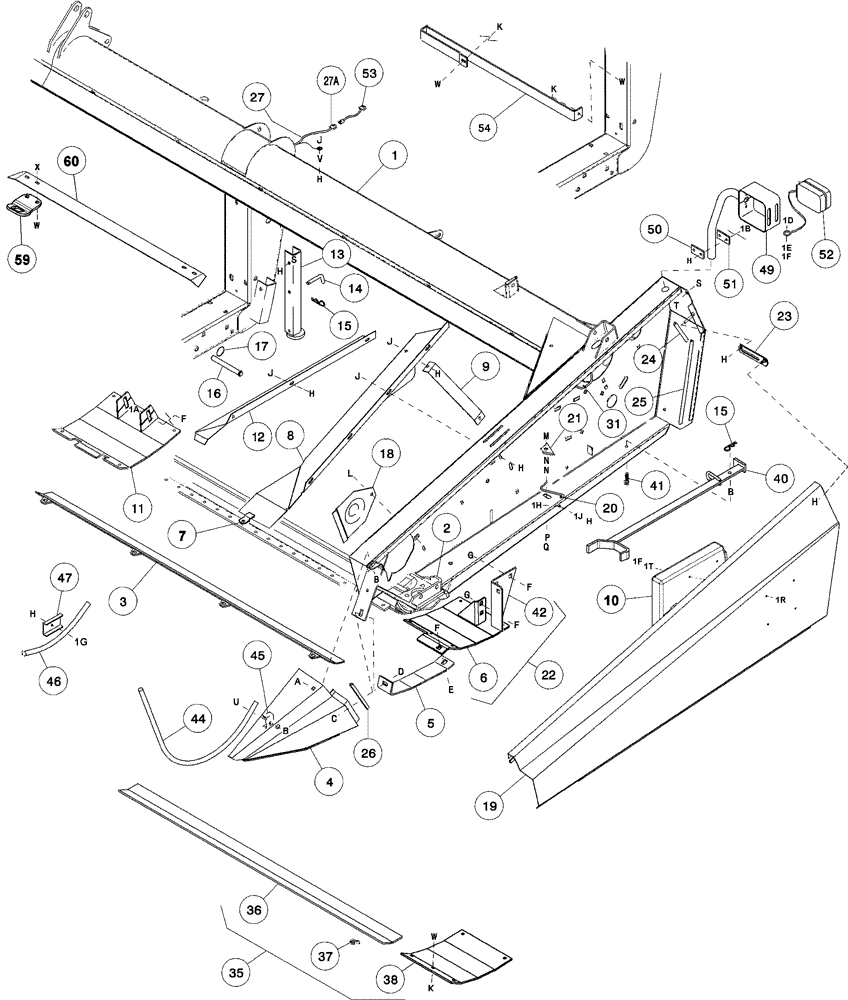

Запчасти Case IH 1052 (09-01) - MAIN FRAME, LIGHTS AND ATTACHMENTS (09) - CHASSIS

1

NSS

NOT SOLD SEPARAT

Frame Assy

1шт.

346068A1

CUTTER BAR

1300 mm (4-1/3 ft), Service Repair Only

1шт.

2

346069A1

SUPPORT

Gearbox, Single Sickle

1шт.

3

346063A1

PLATE

Left-hand and Right-hand Ends

2шт.

21.0 Foot Header

1шт.

3

346061A1

PLATE

Inboard Sections

1шт.

21.0 Foot Header

1шт.

3

346061A1

PLATE

Inboard Sections

3шт.

25.0 Foot Header

1шт.

3

346061A1

PLATE

Inboard Sections, Right-hand End

2шт.

36.0 Foot Header, Optional

1шт.

3

346060A1

PLATE

Left-hand and Right-hand Ends

2шт.

25.0 Foot Header

1шт.

3

346062A1

PLATE

Left-hand and Right-hand Ends

4шт.

30.0 Foot Header, Optional

1шт.

3

370008A1

PLATE

Right-hand End

1шт.

36.0 Foot Header, Optional

1шт.

3

370024A1

PLATE

Left-hand End

2шт.

36.0 Foot Header, Optional

1шт.

4

346067A1

DIVIDER

Left-Hand

1шт.

4

346070A1

DIVIDER

Right-Hand, Single Sickle, Includes Reflector

1шт.

5

346053A1

SHOE

Skid

2шт.

6

346057A1

SHOE

Skid, Adjustable, Left-Hand

1шт.

21.0 and 25.0 Foot Header

1шт.

6

346059A1

SHOE

Skid, Adjustable, Right-Hand

1шт.

21.0 and 25.0 Foot Header

1шт.

7

395998A1

SEAL RETAINER

Used With 395821A1, 395822A1

2шт.

8

395821A1

DEFLECTOR

Left-Hand, Standard, Replaces 346064A1

1шт.

Approximately 7 in Wide at Cutterbar

1шт.

If Replacing Deflector With Guard Bolt Mounting Holes At Front Also Order Item 7

1шт.

8

395822A1

DEFLECTOR

Right-Hand, Standard, Replaces 346065A1

1шт.

Approximately 7 in Wide at Cutterbar

1шт.

If Replacing Deflector With Guard Bolt Mounting Holes At Front Also Order Item 7

1шт.

9

346056A1

SUPPORT

2шт.

10

401981A1

BOX

Operator's Manual

1шт.

11

431151A1

SHOE

Skid, Center Header Leg, Optional

2шт.

12

431152A1

DEFLECTOR

LH, Optional

1шт.

Approximately 3 in Wide at Cutterbar

1шт.

12

431153A1

DEFLECTOR

RH, Optional

1шт.

Approximately 3 in Wide at Cutterbar

1шт.

13

131531A1

STAND

1шт.

14

825980C1

PIN

1шт.

15

591107R1

COTTER PIN

2шт.

16

344550A1

PIN

3/4 x 6-1/4

2шт.

17

410679A1

SPECIAL RING

Replaces 344550A1

2шт.

18

338746A1

SHIELD

Gearbox

1шт.

19

347474A1

SHIELD

Left-Hand

1шт.

Also Order 330671A1 Model Decal

1шт.

20

346054A1

SPRING

1шт.

21

346055A1

SUPPORT

Spring

1шт.

22

338966A1

PACKAGE

Outer Adjustable Skid Shoes, Includes 6, 42 and Hardware

1шт.

30.0 and 36.0 Foot Header

1шт.

23

338586A1

BAR

Left-Hand

1шт.

24

346050A1

EDGE

120 mm (4-3/4 in), Upper Rear

1шт.

25

346051A1

EDGE

400 mm (15-3/4 in), Lower Rear

1шт.

26

346052A1

EDGE

200 mm (7-7/8 in)

1шт.

27

345953A1

HARNESS

1шт.

21.0 and 25.0 Foot Header

1шт.

27

345954A1

HARNESS

1шт.

30.0 Foot Header

1шт.

27a

1281491C1

PACKAGE

Electrical Connector, 3-Way, Includes Male and Female Connectors

1шт.

31

1337510C1

CLIP

2шт.

35

336735A1

PACKAGE

Inc. 36-38

1шт.

21.0 and 25.0 Foot Header

1шт.

35

372301A1

PACKAGE

1шт.

30.0 and 36.0 Foot Header

1шт.

36

345955A1

STRIP

Plastic

5шт.

37

345957A1

LUG

Mounting

36шт.

38

345956A1

SHOE

Plastic, Outer

1шт.

40

443621A1

TOOL ASSY.

Replaces 363052A1

1шт.

41

363053A1

BOLT

1шт.

42

345958A1

SUPPORT

Skid Shoe, Left-Hand

1шт.

42

345959A1

SUPPORT

Skid Shoe, Right-Hand

1шт.

44

345960A1

DIVIDER

1070 mm (42-1/8 in), Rod

2шт.

45

345961A1

CLAMP

2шт.

46

345962A1

DIVIDER

425 mm (16-3/4 in), Rod

2шт.

47

345963A1

CLAMP

Storage

1шт.

49

352626A1

SUPPORT

Light, Amber, Left-Hand

1шт.

50

352628A1

PLATE

Steel

2шт.

51

352630A1

PLATE

Plastic

2шт.

52

347502A1

LAMP

Amber, Includes Hardware

2шт.

A41264

BULB,#1156, 12V

2шт.

53

338297A1

HARNESS

Extension

1шт.

54

362474A1

SUPPORT

Crop Lifter Storage, Europe Only

1шт.

59

450921A1

RETAINER

Combine Adapter Feed Pan, Welded to Cutterbar, Start Serial: CCC0011445

2шт.

60

87422099

DEFLECTOR

Deflector, Feed Pan Retainer, Start Serial: CCC0011445

1шт.

a

434-816

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1", Gr 5

1/2 x 1

1шт.

b

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

1шт.

c

434-824

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/2", Gr 5

1/2 x 1-1/2

1шт.

d

231-5348

FLANGE NUT,Flg, 1/2"-13

1шт.

e

433-1032

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 2", Gr 5

5/8 x 2

1шт.

f

231-53410

FLANGE NUT,Flg, 5/8"-11

1шт.

g

433-1020

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 1 1/4", Gr 5

5/8 x 1-1/4

1шт.

h

232-5316

FLANGE NUT,Flg, 3/8"-16

1шт.

j

434-612

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

3/8 x 3/4

1шт.

k

33-616

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1", Gr 5

3/8 x 1

1шт.

l

409-768

BOLT,Hex Flg, 3/8" - 16 x 1/2", Spcl

3/8 x 1/2

1шт.

m

413-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5

1шт.

n

492-11062

BEARING WASHER,5/8"

1шт.

p

495-11066

WASHER,5/8", SAE

21/32 x 1-5/16 x 3/32

1шт.

q

231-41410

NUT,5/8"-11, GB

1шт.

s

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

t

231-4146

NUT,3/8"-16, GB

1шт.

u

433-828

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 3/4", Gr 5

1/2 x 1-3/4

1шт.

v

493-21039

LOCK WASHER,Int Tooth, 3/8"

3/8

1шт.

w

231-5146

FLANGE NUT,3/8"-16

1шт.

x

358047A1

SCREW,Torx, Truss HD, 3/8" - 16 x 1/2", Gr 5

Truss Head Torx, 3/8 x 1/2

1шт.

1a

434-1016

CARRIAGE BOLT,Sht Sq Nk, 5/8" - 11 x 1", Gr 5

5/8 x 1

1шт.

1b

433-640

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 2 1/2", Gr 5

3/8 x 2-1/2

1шт.

1d

413-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

1шт.

1e

493-41026

LOCK WASHER,Ext Tooth, 1/4"

1шт.

1f

230-4244

LOCK NUT,1/4"-20, GA

1шт.

1g

433-628

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 3/4", Gr 5

3/8 x 1-3/4

1шт.

Used With Standard Deflector Item 8

1шт.

1g

433-624

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 1/2", Gr 5

1шт.

Used With Optional Deflector Item 12

1шт.

1h

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

1j

425-106

NUT,3/8"-16, Cl 5

1шт.

1r

362473A1

BOLT

1/4 x 5/8

1шт.

1t

495-11028

WASHER,1/4", SAE

(9/32 x 5/8 x 1/16")

1шт.
