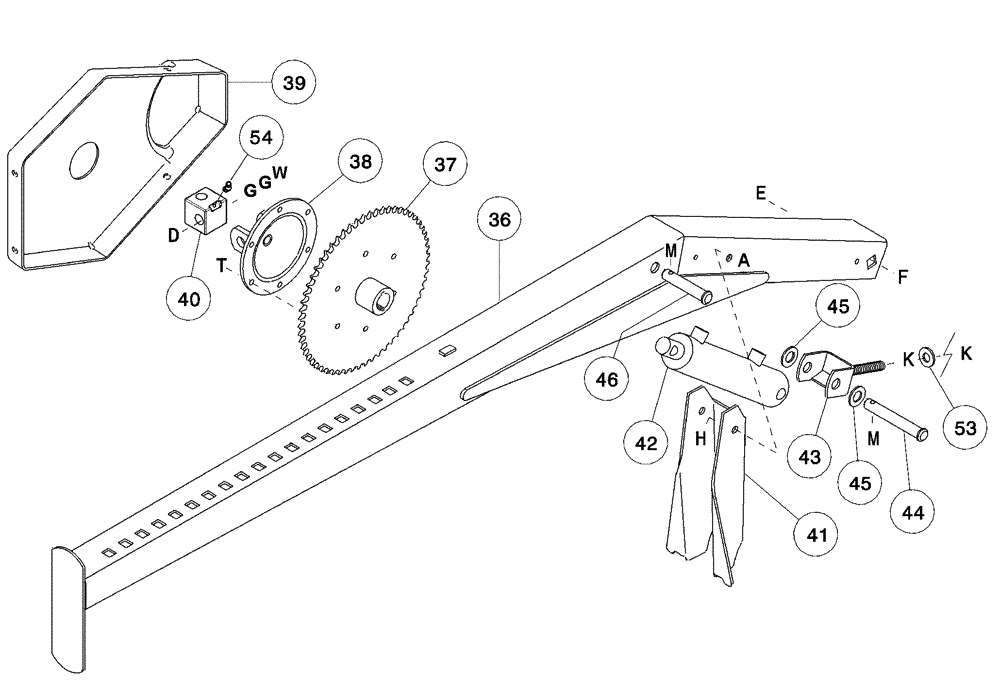

Запчасти Case IH 1052 (09-24A) - SPLIT REEL SPECIAL COMPONENTS, CENTER REEL ARM, BAT REEL, PICK-UP REEL, 30.0 AND 36.0 FOOT HEADER (09) - CHASSIS

36

346026A1

ARM

Reel Support, Center, Inc. Reflector

1шт.

37

345904A1

SPROCKET ASSY.

60 Tooth, Driven

1шт.

38

345907A1

HUB

Inc. Clevis

1шт.

39

345912A1

SHIELD

Reel Drive, With Split Pick-up Reel

1шт.

40

388527A1

BLOCK

Inc. 219-37, Replaces 1336278C1

1шт.

41

345913A1

SUPPORT

Center Reel Arm

1шт.

42

REF

INSTRUCTION

Cylinder, Reel Lift

1шт.

See Figure 09-12

1шт.

43

126631A1

CLEVIS

1шт.

44

345910A1

PIN

3/4 x 4-1/2

1шт.

45

495-81042

WASHER,25/32" x 1 1/2" x .120"

25/32 x 1-1/2 x 7/64

2шт.

46

126601A1

PIN

3/4 x 3-3/4

1шт.

53

96-21066

WASHER,21/32" x 1 5/16" x .150", HDN

21/32 x 1-5/16 x 5/32

1шт.

54

219-37

LUBE NIPPLE,45 Degree Elbow, 1/4" - 28 NPTF

1шт.

a

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

1шт.

d

407403A1

BOLT

3/4 x 4-1/4

1шт.

e

231-42412

NUT,3/4"-10, GB

3/4 NC

1шт.

f

433-1272

CARRIAGE BOLT,Sq Nk, 3/4" - 10 x 4 1/2", Gr 5

3/4 x 4-1/2

1шт.

g

495-81042

WASHER,25/32" x 1 1/2" x .120"

25/32 x 1-1/2 x 7/64

1шт.

h

231-4118

LOCK NUT,1/2"-13, GB

1/2

1шт.

k

425-1010

NUT,5/8"-11, G5

1шт.

m

32-1220

COTTER PIN,3/16" x 1 1/4"

1шт.

t

281-54910

SELF-TAP SCREW,Hex Wash Hd, 3/8"-16 x 5/8"

3/8 st x 5/8

1шт.

w

231-41412

NUT,3/4"-10, GB

3/4

1шт.
