(09-24) - SPLIT REEL SPECIAL COMPONENTS, PICK-UP REEL, RIGHT HAND REEL SUPPORT, 30.0 AND 36.0 FOOT HEADER

Запчасти Case IH 1052 (09-24) - SPLIT REEL SPECIAL COMPONENTS, PICK-UP REEL, RIGHT HAND REEL SUPPORT, 30.0 AND 36.0 FOOT HEADER (09) - CHASSIS

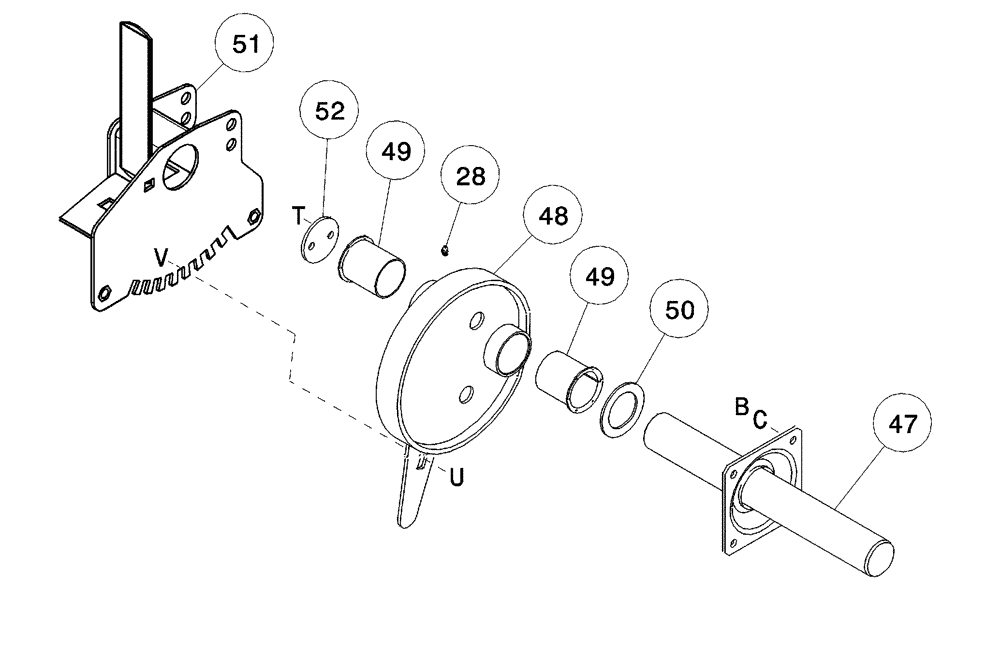

Схема запчастей Case IH 1052 - (09-24) - SPLIT REEL SPECIAL COMPONENTS, PICK-UP REEL, RIGHT HAND REEL SUPPORT, 30.0 AND 36.0 FOOT HEADER (09) - CHASSIS
b
c
52
28
t
51
u
v
49
49
48
47
50
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

28

219-8

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

47

345908A1

SHAFT

1шт.

48

345914A1

CAM

Reel

1шт.

49

1969215C1

BUSHING,51.2mm ID x 55.3mm OD x 62mm L

2шт.

50

1337235C1

WASHER

1шт.

51

87407608

SUPPORT

Right-Hand, Inc. Reflector, Replaces 345915A1, Replaces 410831A1

1шт.

52

347306A1

THRUST WASHER

1шт.

b

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

1шт.

c

492-11038

LOCK WASHER,3/8"

1шт.

t

281-54910

SELF-TAP SCREW,Hex Wash Hd, 3/8"-16 x 5/8"

3/8 st x 5/8

1шт.

u

434-816

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1", Gr 5

1/2 x 1

1шт.

v

231-5348

FLANGE NUT,Flg, 1/2"-13

1шт.
