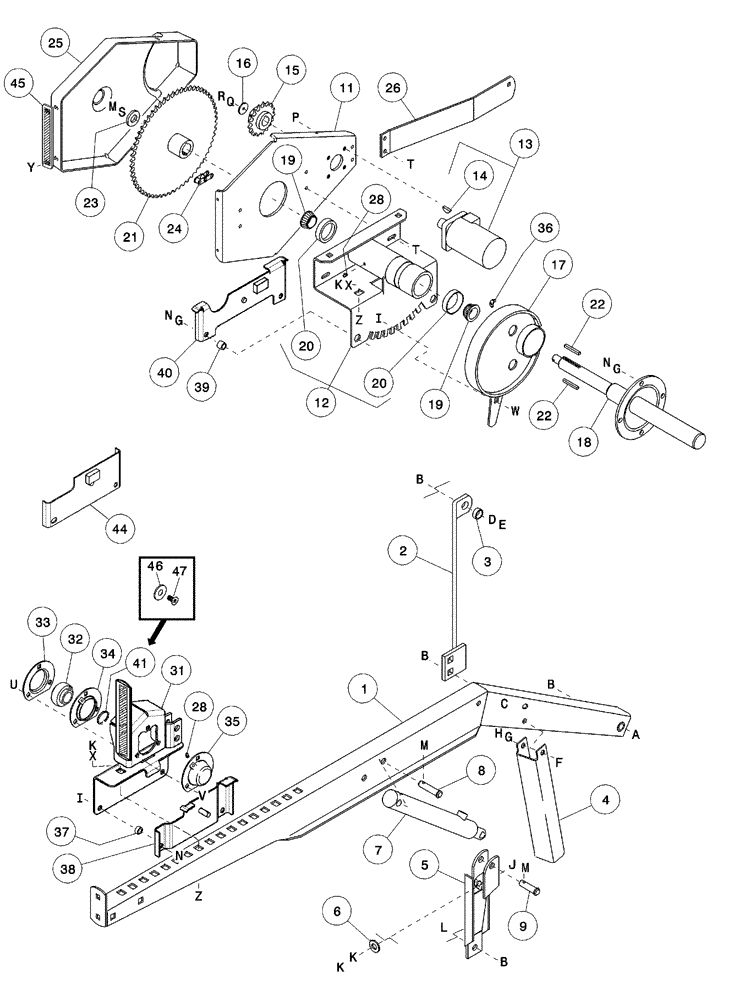

Запчасти Case IH 1052 (09-23) - REEL DRIVE AND SUPPORT ARMS (09) - CHASSIS

1

345902A1

ARM

Reel Support, Left-Hand, Inc. Reflector, Serial Range: -CCC0011320

1шт.

1

430283A1

ARM

Reel Support, Left-Hand, Start Serial: CCC0011321

1шт.

1

345903A1

ARM

Reel Support, Right-Hand, Inc. Reflector, Serial Range: -CCC0011320

1шт.

1

430282A1

ARM

Reel Support, Right-Hand, Start Serial: CCC0011321

1шт.

2

346071A1

SUPPORT

2шт.

3

1276751C1

SPACER

2шт.

4

346073A1

SUPPORT

2шт.

5

346074A1

SUPPORT

Cylinder Mount, Left-Hand

1шт.

5

346075A1

SUPPORT

Cylinder Mount, Right-Hand

1шт.

6

96-21066

WASHER,21/32" x 1 5/16" x .150", HDN

3шт.

7

REF

INSTRUCTION

Cylinder, Reel Lift

1шт.

See Figures 09-11, 09-12

1шт.

8

1344998C1

CLEVIS PIN

5/8 x 2-1/2

2шт.

9

427-10225

CLEVIS PIN,5/8" x 1 1/4"

5/8 x 2-1/4

2шт.

11

346079A1

PLATE

1шт.

12

87422092

SUPPORT

Inc. 651817R1 (2), Replaces 348083A1

1шт.

13

126686A1

MOTOR, HYDRAULIC

Inc. 126-124

1шт.

13

591447R

REMAN-STEERING VALVE

1052 DRAPER HEADER, Reman for New PN 126686A1

1шт.

13

591447C

CORE-STEERING VALVE

Return Number

1шт.

346200A1

SEAL KIT

1шт.

14

126-124

WOODRUFF KEY,#15, 1/4" x 1", HT

1шт.

15

346078A1

SPROCKET ASSY.

11 Tooth, High Torque Reel Drive

1шт.

15

450912A1

SPROCKET

17 Tooth, Optional, High Speed Reel Drive

1шт.

16

126705A1

WASHER

7,1 x 32 x 3 mm

1шт.

17

346084A1

CAM

With Split Pick-up Ree

1шт.

18

346080A1

SHAFT

1шт.

19

602958R91

BEARING ASSY,31.75 mm ID x 25.4 mm

2шт.

20

651817R1

BEARING CUP

2шт.

20

651817R1GV

BEARING CUP

Value, Bearing Cup

2шт.

21

346077A1

SPROCKET ASSY.

60 tooth, Without Split Reel

1шт.

22

T25070

KEY

1/4 x 1-57/64

2шт.

23

1336594C1

WASHER

1шт.

24

346072A1

CHAIN (AG)

Inc. 241-1315, High Torque Reel Drive

1шт.

24

450913A1

CHAIN

Inc. 241-1315, Optional, High Speed Reel Drive

1шт.

241-1315

LINK, CONNECTING

No. 50

1шт.

25

347548A1

SHIELD

Without Split Reel

1шт.

26

345995A1

BAR

Hose Retainer

1шт.

See Figures 09-11, 09-12, 09-13, 09-14

1шт.

28

219-8

LUBE NIPPLE,1/4" - 28 NPTF

Without Bat Reel

2шт.

28

219-8

LUBE NIPPLE,1/4" - 28 NPTF

With Bat Reel

3шт.

31

87407609

SUPPORT

Left-Hand, Inc. Reflector, Replaces 410830A1

1шт.

31

410695A1

SUPPORT

Right-Hand, Inc. Reflector, With Bat Reel

1шт.

32

362467A1

BALL BEARING

Inc. Set Screw, Without Bat Reel

1шт.

32

362467A1

BALL BEARING

Inc. Set Screw, With Bat Reel

2шт.

33

338335A1

FLANGE

Without Bat Reel

1шт.

33

338335A1

FLANGE

With Bat Reel

2шт.

34

338336A1

FLANGE

Without Bat Reel

1шт.

34

338336A1

FLANGE

With Bat Reel

2шт.

35

338337A1

COVER

Without Bat Reel

1шт.

35

338337A1

COVER

With Bat Reel

2шт.

36

219-57

LUBE NIPPLE,90 Degree Elbow, 1/4" - 28 NPTF

1/4 tpr x 3/4

1шт.

37

345900A1

SPACER

Left-Hand, Fore And Aft

2шт.

37

345899A1

SPACER

Right-Hand, Fore And Aft, With Bat Reel

2шт.

38

345901A1

SUPPORT

Left-Hand, Fore And Aft

1шт.

39

345899A1

SPACER

Right-Hand, Fore And Aft, Without Split Pick-up Reel

2шт.

39

345899A1

SPACER

Right-Hand, Fore And Aft, With Split Pick-up Reel

4шт.

40

345898A1

SUPPORT

Right-Hand, Fore And Aft, Without Split Pick-up Reel

1шт.

40

345898A1

SUPPORT

Right-Hand, Fore And Aft, With Split Pick-up Reel

2шт.

41

363056A1

RING

, Serial Range: -CCC0011203

1шт.

41

100-11118

SNAP RING,#118, Ext

Without bat reel, Start Serial: CCC0011204

1шт.

41

100-11118

SNAP RING,#118, Ext

With bat reel, Start Serial: CCC0011204

2шт.

44

398698A1

SUPPORT

Right-Hand, Fore And Aft, Outboard, With Bat Reel

1шт.

45

410680A1

PLATE

Amber, Without Split Reel

1шт.

46

87423131

WASHER

Flat, Tapered ID (If Equipped)

1шт.

47

358048A1

LOCK BOLT

3/8 x 3/4 (If Equipped)

1шт.

a

433-1064

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 4", Gr 5

1шт.

b

231-53410

FLANGE NUT,Flg, 5/8"-11

1шт.

c

434-1024

CARRIAGE BOLT,Sht Sq Nk, 5/8" - 11 x 1 1/2", Gr 5

1шт.

d

495-11066

WASHER,5/8", SAE

1шт.

e

413-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5

1шт.

f

433-856

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 3 1/2", Gr 5

1шт.

g

80679

LOCK WASHER,1/20.507 CST ZND

1шт.

h

231-4118

LOCK NUT,1/2"-13, GB

1шт.

i

231-5348

FLANGE NUT,Flg, 1/2"-13

1шт.

j

346551A1

BOLT

5/8 x 7-1/2, Full Thread

1шт.

k

425-1010

NUT,5/8"-11, G5

1шт.

l

413-1020

BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 5

1шт.

m

32-1220

COTTER PIN,3/16" x 1 1/4"

1шт.

n

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

1шт.

p

358048A1

LOCK BOLT

3/8 NC x 3/4

1шт.

q

492-11025

LOCK WASHER,1/4"

1шт.

r

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

1шт.

s

425-1312

SLOTTED NUT,3/4"-16, G5

1шт.

t

281-54910

SELF-TAP SCREW,Hex Wash Hd, 3/8"-16 x 5/8"

1шт.

u

33-616

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1", Gr 5

1шт.

v

232-5316

FLANGE NUT,Flg, 3/8"-16

1шт.

w

434-816

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1", Gr 5

1шт.

x

492-11062

BEARING WASHER,5/8"

1шт.

y

281-1488

SELF-TAP SCREW,Hex Wash Hd, 5/16" x 1/2"

1шт.

281-14812

SELF-TAP SCREW,Hex Washer, 5/16" - 18 x 3/4"

1шт.

z

433-1020

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 1 1/4", Gr 5

1шт.
