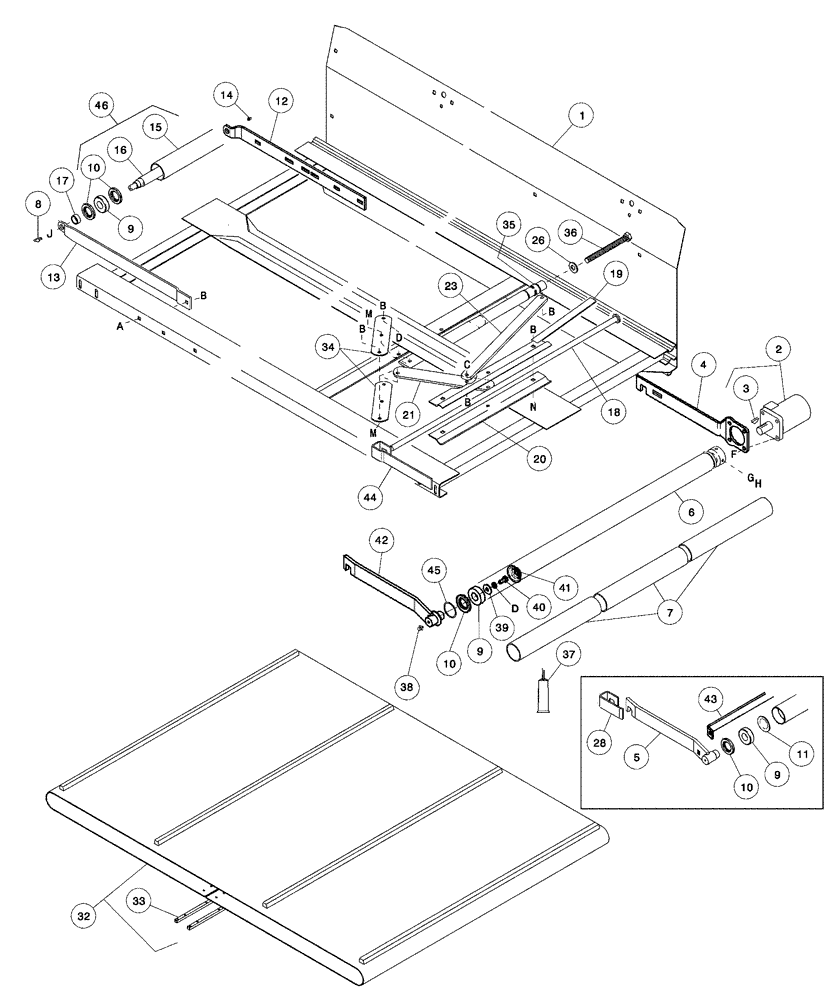

Запчасти Case IH 1052 (09-22) - DRAPERS, DRIVE AND TIGHTENER 2 DECK (09) - CHASSIS

1

REF

INSTRUCTION

Deck, Carrier

1шт.

See Figure 09-21

1шт.

2

392739A1

HYDRAULIC MOTOR

Draper Drive, Inc. 126-124, Replaces 338358A1

2шт.

346200A1

SEAL KIT

Replaces 338359A1

2шт.

3

126-124

WOODRUFF KEY,#15, 1/4" x 1", HT

2шт.

4

346033A1

SUPPORT

Left-Hand, Serial Range: -CCC0011203

1шт.

4

388545A1

SUPPORT

Left-Hand, Shown, Start Serial: CCC0011204

1шт.

4

346034A1

SUPPORT

Right-Hand, Serial Range: -CCC0011203

1шт.

4

388544A1

SUPPORT

Right-Hand, Start Serial: CCC0011204

1шт.

5

346031A1

ARM

Left-Hand, Shown, Serial Range: -CCC0011203

1шт.

5

346032A1

ARM

Right-Hand, Serial Range: -CCC0011203

1шт.

6

387306A1

ROLL

Inc. 7, Replaces 346024A1, Serial Range: -CCC0011320

2шт.

6

395815A1

ROLL

Replaces 387306A1, Start Serial: CCC0011321

2шт.

7

823065C2

SERVICE KIT

3 Piece Lagging

2шт.

8

219-37

LUBE NIPPLE,45 Degree Elbow, 1/4" - 28 NPTF

2шт.

9

396012A1

BALL BEARING,25mm ID x 52mm OD x 15mm W

Replaces 338345A1

6шт.

10

341036A1

OIL SEAL

10шт.

11

346029A1

DISC

, Serial Range: -CCC0011203

2шт.

12

346044A1

ARM

Idler, Rear

2шт.

13

346028A1

ARM

Idler, Front

2шт.

14

219-8

LUBE NIPPLE,1/4" - 28 NPTF

2шт.

15

346009A1

TUBE

2шт.

16

346008A1

SHAFT

2шт.

17

338344A1

SPACER

4шт.

18

346030A1

ROD

2шт.

19

346020A1

SUPPORT

Upper Left Hand, Inc. Indicator, Serial Range: -CCC0011320

1шт.

19

401978A1

SUPPORT

Upper Left Hand, Inc. Indicator, Start Serial: CCC0011321

1шт.

19

369998A1

SUPPORT

Upper Right Hand, Inc. Indicator, Serial Range: -CCC0011320

1шт.

19

401979A1

SUPPORT

Upper Right Hand, Inc. Indicator, Start Serial: CCC0011321

1шт.

20

346027A1

SUPPORT

Lower

2шт.

21

346011A1

BAR

Tightener

2шт.

23

346012A1

BAR

Compression, Serial Range: -CCC0011320

2шт.

23

401976A1

BAR

Compression, Start Serial: CCC0011321

2шт.

26

96-21066

WASHER,21/32" x 1 5/16" x .150", HDN

21/32 x 1-5/16 x 5/32

2шт.

28

346035A1

RETAINER

Left-Hand, Shown, Serial Range: -CCC0011203

1шт.

28

346036A1

RETAINER

Right-Hand, Serial Range: -CCC0011203

1шт.

32

346016A1

DRAPER

2шт.

21.0 Foot Header

1шт.

32

346018A1

DRAPER

2шт.

25.0 Foot Header

1шт.

32

346022A1

DRAPER

2шт.

30.0 Foot Header

1шт.

32

372311A1

DRAPER

Left-Hand

1шт.

36.0 Foot Header

1шт.

32

372312A1

DRAPER

Right-Hand, Center Delivery

1шт.

36.0 Foot Header

1шт.

347517A1

EXTENSION

485mm (19 in), Extension

1шт.

379561A1

BELT

75 Foot Bulk Roll, Economy Material

1шт.

378467A1

DRAPER

150 Foot Bulk Roll, Deluxe Material

1шт.

33

346048A1

PACKAGE

Inc. 33A, 33B

2шт.

33a

NSS

NOT SOLD SEPARAT

Slat

2шт.

33b

352616A1

KIT

1шт.

34

346047A1

BAR

4шт.

35

346046A1

ARM

Tightener

2шт.

36

346551A1

BOLT

5/8 x 7-1/2

2шт.

37

352625A1

ADHESIVE

1шт.

38

219-57

LUBE NIPPLE,90 Degree Elbow, 1/4" - 28 NPTF

1/4 tpr x 3/4

2шт.

39

395825A1

WASHER

, Start Serial: CCC0011204

2шт.

40

379978A1

BOLT

, Start Serial: CCC0011204

2шт.

41

379753A1

CAP

, Start Serial: CCC0011204

2шт.

42

379754A1

ARM

Left-Hand, Shown, Start Serial: CCC0011204

1шт.

42

379756A1

ARM

Right-Hand, Start Serial: CCC0011204

1шт.

43

378145A1

SUPPORT

Drive Roller, Serial Range: -CCC0011203

2шт.

44

379760A1

RETAINER

Left-Hand, Shown, Start Serial: CCC0011204

1шт.

44

379761A1

RETAINER

Right-Hand, Start Serial: CCC0011204

1шт.

45

388661A1

RING

, Start Serial: CCC0011204

2шт.

46

87422036

ROLLER ASSY.

Idler, Inc. 9 (2) , 10 (4), 15 and 16

2шт.

a

33-616

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1", Gr 5

3/8 x 1

1шт.

b

232-5316

FLANGE NUT,Flg, 3/8"-16

1шт.

c

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

1шт.

d

492-11038

LOCK WASHER,3/8"

1шт.

f

358048A1

LOCK BOLT

3/8 NC x 3/4

1шт.

g

483-1385

SET SCREW,Hex Soc, 3/8"-16 x 5/16"

3/8 x 5/16

1шт.

h

126620A1

HEX SOC SCREW,3/8" - 16 x 4.76mm

3/8 NC x 3/16

1шт.

j

425-1010

NUT,5/8"-11, G5

1шт.

m

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

n

434-612

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

3/8 x 3/4

1шт.
