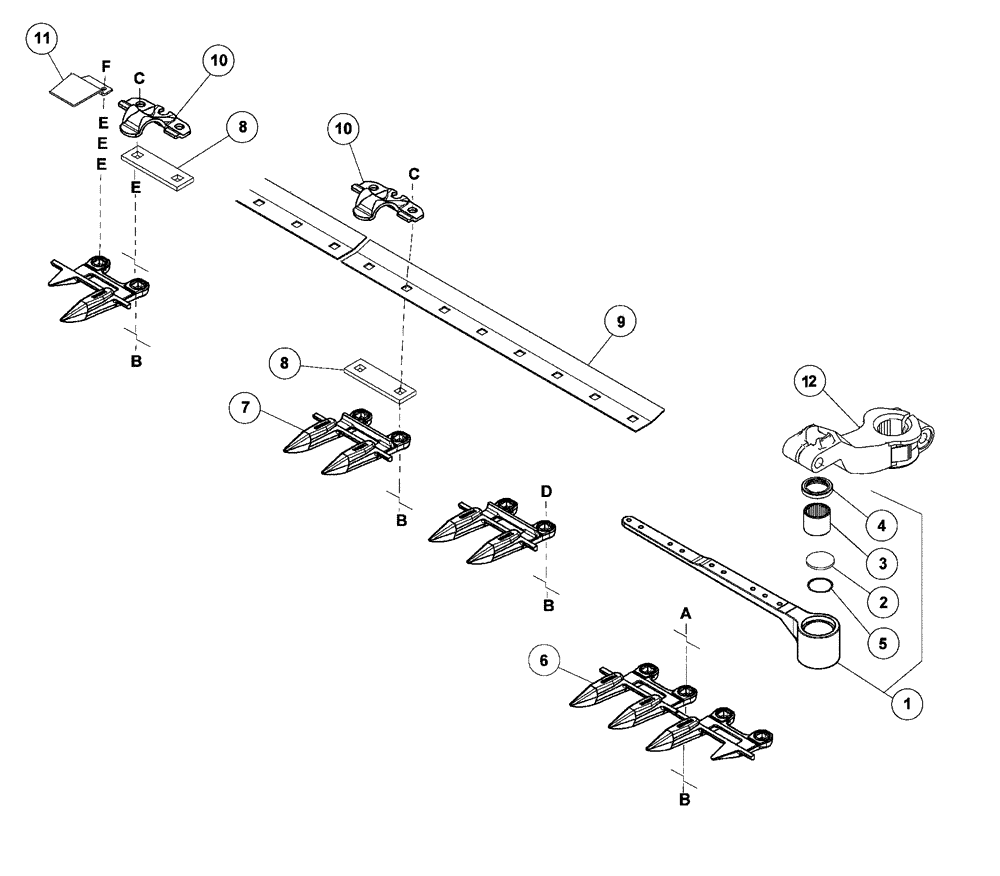

Запчасти Case IH 1052 (09-19) - RAISED KNIFE ASSEMBLY - SPECIAL COMPONENTS (09) - CHASSIS

372303A1

KNIFE

Raised Sickle, Inc. 1-12, Order From Machinery Price List

1шт.

21.0 and 25.0 Foot Header

1шт.

372304A1

KNIFE

Raised Sickle, Inc. 1-12, Order From Machinery Price List

1шт.

30.0 and 36.0 Foot Header

1шт.

1

395824A1

KNIFE ASSY

Raised Sickle, Inc. 2,3,4,5, Replaces 369990A1

1шт.

2

395820A1

PLUG

Replaces 370015A1

1шт.

3

A27827

NEEDLE BEARING,Needle, 31.75mm ID x 38.1mm OD x 31.75mm W

1шт.

4

345892A1

SEAL KIT

1шт.

5

430320A1

O-RING,0.07" Thk x 1.364" ID, -28, Cl 5, 75 Duro

1шт.

6

87422041

GUARD

Drive End, Replaces 337968A1

3шт.

7

87421451

GUARD

Replaces 345887A1

39шт.

21.0 Foot Header

1шт.

7

87421451

GUARD

Replaces 345887A1

47шт.

25.0 Foot Header

1шт.

7

87421451

GUARD

Replaces 345887A1

57шт.

30.0 Foot Header

1шт.

7

87421451

GUARD

Replaces 345887A1

69шт.

36.0 Foot Header

1шт.

8

369991A1

BAR

14шт.

21.0 Foot Header

1шт.

8

369991A1

BAR

17шт.

25.0 Foot Header

1шт.

8

369991A1

BAR

20шт.

30.0 Foot Header

1шт.

8

369991A1

BAR

24шт.

36.0 Foot Header

1шт.

9

381060A1

PLATE

595 mm (23-7/16) long, Raised Sickle, Left-hand End

1шт.

9

381059A1

PLATE

912 mm (35-29/32) long, Raised Sickle, Right-hand End

6шт.

21.0 Foot Header

1шт.

9

381059A1

PLATE

912 mm (35-29/32) long, Raised Sickle, Right-hand End

7шт.

25.0 Foot Header

1шт.

9

381059A1

PLATE

912 mm (35-29/32) long, Raised Sickle, Right-hand End

9шт.

30.0 Foot Header

1шт.

9

381059A1

PLATE

912 mm (35-29/32) long, Raised Sickle, Right-hand End

10шт.

36.0 Foot Header

1шт.

9

381061A1

PLATE

748 mm (29-29/64) long, Raised Sickle, Right-hand End

1шт.

21.0, 30.0 and 36.0 Foot Header

1шт.

9

381063A1

PLATE

1053 mm (41-15/32) long, Raised Sickle, Right-hand End

1шт.

25.0 Foot Header

1шт.

10

87407812

GUIDE

Replaces 338591A1

14шт.

21.0 Foot Header

1шт.

10

87407812

GUIDE

Replaces 338591A1

17шт.

25.0 Foot Header

1шт.

10

87407812

GUIDE

Replaces 338591A1

20шт.

30.0 Foot Header

1шт.

10

87407812

GUIDE

Replaces 338591A1

24шт.

36.0 Foot Header

1шт.

11

344734A1

SHIELD

Right-hand End

1шт.

12

369994A1

ARM

Output

1шт.

a

413-724

BOLT,Hex, 7/16" - 14 x 1-1/2", Gr 5

7/16 x 1-1/2

1шт.

b

429-107

NUT,7/16"-14, G8

1шт.

c

433-732

CARRIAGE BOLT,Sq Nk, 7/16" - 14 x 2", Gr 5

7/16 x 2

1шт.

d

433-724

CARRIAGE BOLT,Sq Nk, 7/16" - 14 x 1 1/2", Gr 5

7/16 x 1-1/2

1шт.

e

495-11047

WASHER,7/16", SAE

(15/32 x 59/64 x 1/16")

1шт.

f

424-728

BOLT,Hex, 7/16" - 14 x 1-3/4", Gr 2

7/16 x 1-3/4

1шт.
