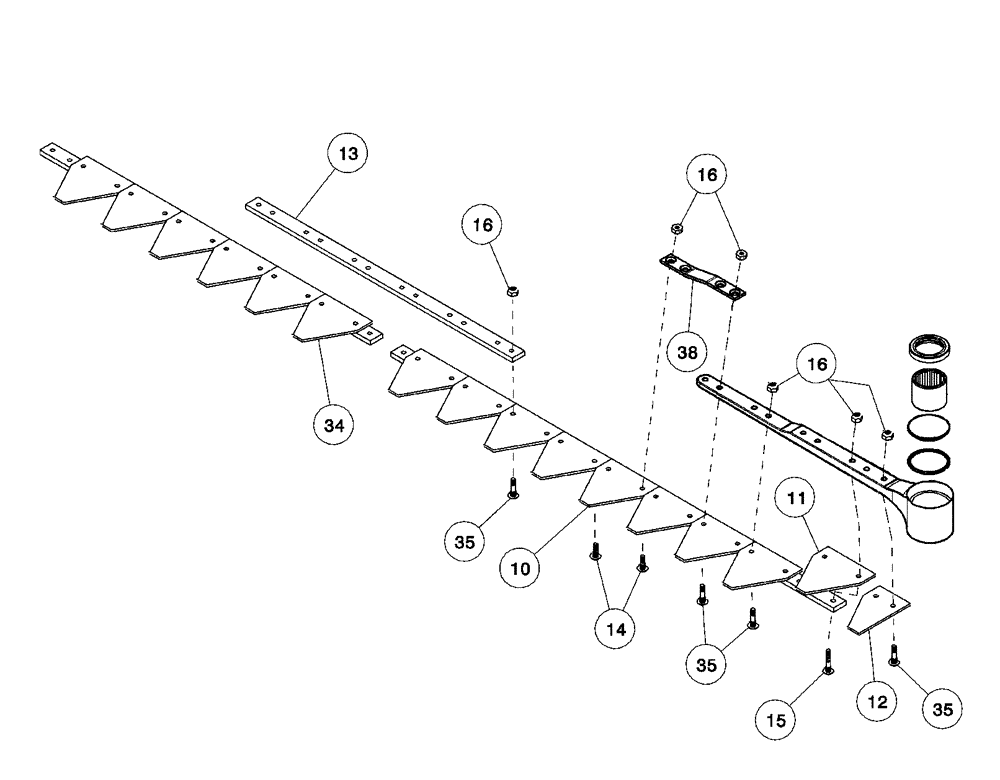

Запчасти Case IH 1052 (09-18A) - KNIFE ASSEMBLY - 25.0, 30.0 AND 36.0 FOOT HEADER, FINE SICKLES (09) - CHASSIS

10

338616A1

KNIFE ASSY

Left-Hand

1шт.

11

1327448C1

KNIFE SECTION

SECTION, KNIFE Top-serrated

3шт.

12

1327411C1

KNIFE SECTION

SECTION, KNIFE Half

1шт.

13

126622A1

BAR

Splice

1шт.

16

1954816C1

LOCK NUT

No. 12, Nut, Special

8шт.

34

381137A1

KNIFE

Right-Hand

1шт.

25.0 Foot Header

1шт.

34

131482A1

KNIFE ASSY

9 ft, Right-Hand

1шт.

30.0 Foot Header

1шт.

34

126689A1

KNIFE ASSY

15 ft, Right-Hand

1шт.

36.0 Foot Header

1шт.

35

347236A1

SCREW

No. 12 x 59/64

8шт.

38

381144A1

BAR

1шт.
