(09-17) - KNIFE ASSEMBLY, 21.0 FOOT HEADER, COARSE SICKLES AND FINE SICKLES

Запчасти Case IH 1052 (09-17) - KNIFE ASSEMBLY, 21.0 FOOT HEADER, COARSE SICKLES AND FINE SICKLES (09) - CHASSIS

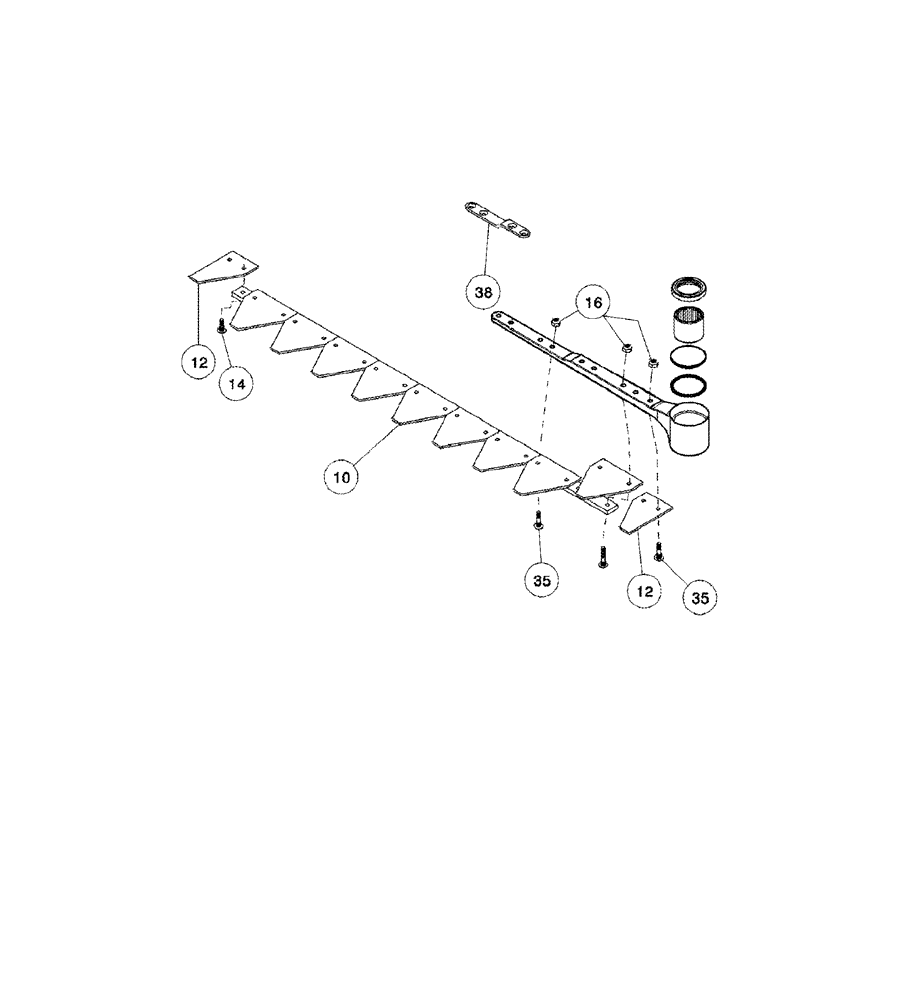

Схема запчастей Case IH 1052 - (09-17) - KNIFE ASSEMBLY, 21.0 FOOT HEADER, COARSE SICKLES AND FINE SICKLES (09) - CHASSIS
35
12
10
14
35
12
38
16
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

10

345891A1

KNIFE ASSY

Coarse Sickles

1шт.

10

338616A1

KNIFE ASSY

Fine Sickles

1шт.

12

1327411C1

KNIFE SECTION

SECTION, KNIFE Half

2шт.

14

700708646

BOLT AND NUT,Slotted, Btn Hd, #12 - 24 x 5/8"

No. 12 x 5/8, Right Hand Side

1шт.

16

1954816C1

LOCK NUT

No. 12

3шт.

35

347236A1

SCREW

No. 12 x 59/64

2шт.

38

381144A1

BAR

1шт.
