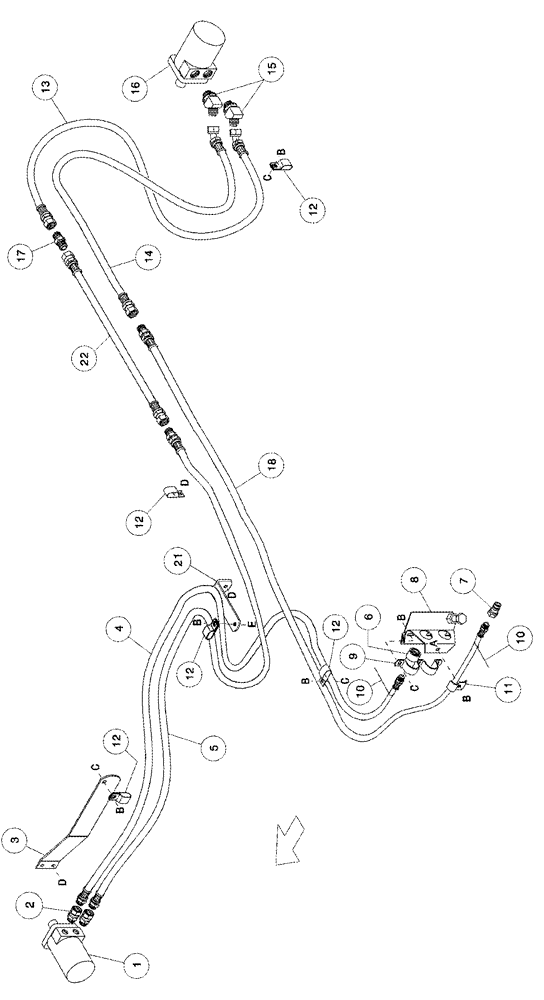

Запчасти Case IH 1052 (09-14) - HYDRAULIC CIRCUIT - REEL DRIVE, 36.0 FOOT 3 DECK HEADER FIELD INSTALLED KIT (09) - CHASSIS

1

126686A1

MOTOR, HYDRAULIC

Reel Drive, Inc. 126-124

1шт.

1

591447R

REMAN-STEERING VALVE

1052 DRAPER HEADER, Reel Drive, Reman for New PN 126686A1

1шт.

1

591447C

CORE-STEERING VALVE

Return Number

1шт.

126-124

WOODRUFF KEY,#15, 1/4" x 1", HT

1шт.

346200A1

SEAL KIT

1шт.

2

386376A1

ADAPTER

7/8 Or x 5/8 fem

2шт.

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

2шт.

3

345995A1

BAR

1шт.

4

352632A1

HOSE

3460 mm (136-1/4 in)

1шт.

5

386377A1

HOSE ASSY.

1шт.

6

1282338C91

COUPLING, QUICK, FEM

7/8 NF, Self-Sealing

1шт.

7

1272399C2

QUICK MALE COUPLING

7/8 NF, Self-Sealing, Male

1шт.

8

352631A1

HOLDER

1шт.

9

352634A1

HOLDER

1шт.

10

352622A1

FASTENER

2шт.

11

1276808C1

CLIP

1шт.

12

470375C1

CLAMP,1", Insul, 3/8" Bolt

1шт.

13

381141A1

HOSE

2075 mm (81-11/16 in)

1шт.

14

381140A1

HOSE

4275 mm (168-5/16 in)

1шт.

15

218-5137

ELBOW,45 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

2шт.

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

2шт.

16

338358A1

HYDRAULIC MOTOR

Draper Drive, Inc. 126-124

3шт.

126-124

WOODRUFF KEY,#15, 1/4" x 1", HT

3шт.

346200A1

SEAL KIT

3шт.

17

218-435

HYD CONNECTOR,7/8" - 14 Male JIC x 7/8" - 14 Male JIC

1шт.

18

352633A1

HOSE

5000 mm (196-55/64 in)

1шт.

21

369999A1

SUPPORT

1шт.

22

386538A1

HOSE ASSY.

1шт.

a

434-620

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/4", Gr 5

1шт.

b

232-5316

FLANGE NUT,Flg, 3/8"-16

1шт.

c

434-612

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

3/8 x 3/4

1шт.

d

281-54910

SELF-TAP SCREW,Hex Wash Hd, 3/8"-16 x 5/8"

3/8 st x 5/8

1шт.

e

409-7612

BOLT,3/8"-16 x 1.09" OAL

1шт.
