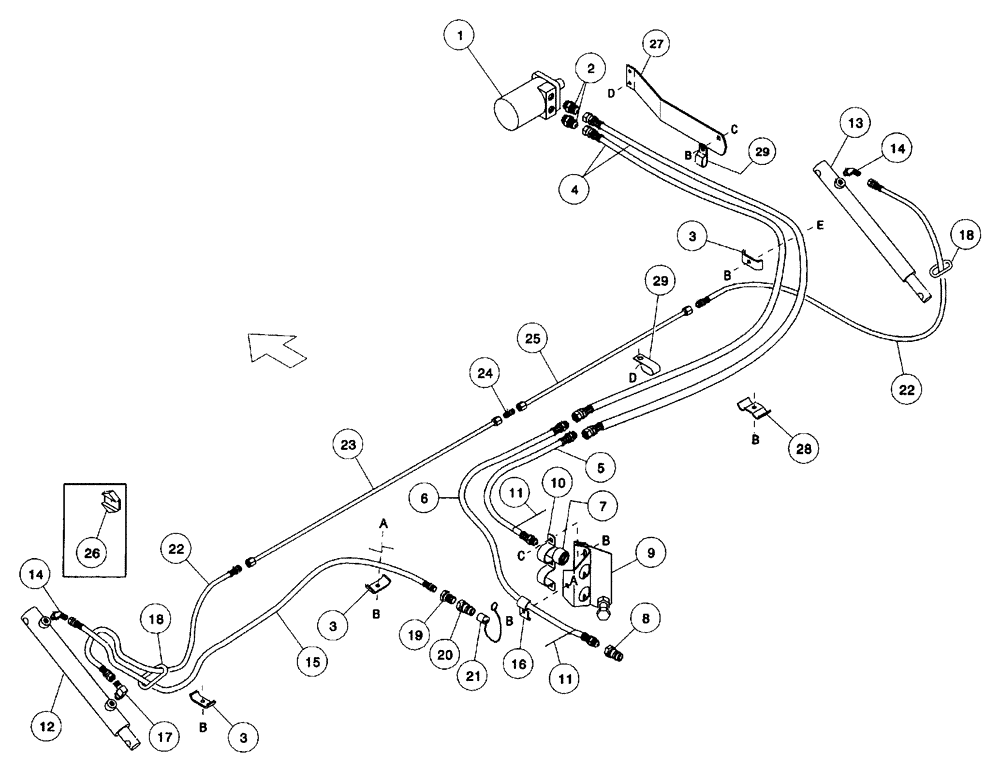

Запчасти Case IH 1052 (09-11) - HYDRAULIC CIRCUIT - REEL LIFT AND REEL DRIVE, 21.0 AND 25.0 FOOT HEADER (09) - CHASSIS

1

126686A1

MOTOR, HYDRAULIC

Inc. 126-124

1шт.

1

591447R

REMAN-STEERING VALVE

1052 DRAPER HEADER, Reman for New PN 126686A1

1шт.

1

591447C

CORE-STEERING VALVE

Return Number

1шт.

126-124

WOODRUFF KEY,#15, 1/4" x 1", HT

1шт.

346200A1

SEAL KIT

1шт.

2

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

7/8 fl x Or

2шт.

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

2шт.

3

1954807C1

CLAMP

4шт.

4

345987A1

HOSE

2шт.

21.0 Foot Header

1шт.

4

345988A1

HOSE

2шт.

25.0 Foot Header

1шт.

5

352632A1

HOSE

3460 mm (136-1/4 in)

1шт.

6

352633A1

HOSE

5000 mm (196-55/64 in)

1шт.

7

1282338C91

COUPLING, QUICK, FEM

7/8 NF, Self-Sealing

1шт.

8

1272399C2

QUICK MALE COUPLING

7/8 NF, Self-Sealing, Male

1шт.

9

352631A1

HOLDER

Coupler

1шт.

10

352634A1

HOLDER

1шт.

11

352622A1

FASTENER

2шт.

12

1337009C2

CYLINDER ASSY.

38 ID x 254 mm strk, Reel Lift, MacDon Part Number 29169, Serial Range: -CCC0011320

1шт.

823143C91

SEAL KIT

1шт.

161332C2

PISTON

1шт.

12

394520A1

CYLINDER ASSY.

Reel Lift, MacDon Part Number 113798, Serial Range: CCC0011321-CCC0011568

1шт.

394524A1

SEAL KIT

1шт.

161332C2

PISTON

1шт.

12

87414724

LIFT CYLINDER

Reel Lift, MacDon Part Number 118337, Start Serial: CCC0011569

1шт.

394524A1

SEAL KIT

1шт.

161332C2

PISTON

1шт.

13

1337004C1

HYDRAULIC CYLINDER,25.4mm Rod, 250mm Stroke

Reel Lift

1шт.

823144C91

SEAL KIT

1шт.

14

201-315

ELBOW,45 Degree Elbow, 11/16" - 16 Male ORFS x 9/16" - 18 Male ORB

3/4 x 13/16

2шт.

15

345982A1

HOSE

5120 mm (201-1/2 in)

1шт.

21.0 Foot Header

1шт.

15

345983A1

HOSE

5580 mm (219-11/16 in)

1шт.

25.0 Foot Header

1шт.

16

1276808C1

CLIP

1шт.

17

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

1шт.

18

345981A1

LOOM

2шт.

19

217-43

REDUCER,1/2" - 14 NPTF x 1/4" - 18 Fem NPTF

1шт.

20

1336545C1

COUPLING

Male

1шт.

21

131610A1

PLUG

1шт.

22

345993A1

HOSE

1600 mm (63 in)

2шт.

23

345997A1

HYD TUBE,9.52 mm OD

1шт.

21.0 Foot Header

1шт.

23

345991A1

HYD TUBE,9.5 mm OD

Left Hand Side

1шт.

25.0 Foot Header

1шт.

24

218-734

UNION,9/16"-18, 37 Degree x 9/16"-18, 37 Degree

9/16 fl

1шт.

25

345990A1

HYD TUBE,9.5 mm OD

Right Hand Side

1шт.

25.0 Foot Header

1шт.

26

826031C1

RESTRICTOR

1шт.

27

345995A1

BAR

Support

1шт.

28

345999A1

SUPPORT

2шт.

21.0 Foot Header

1шт.

28

345999A1

SUPPORT

3шт.

25.0 Foot Header

1шт.

29

470375C1

CLAMP,1", Insul, 3/8" Bolt

2шт.

a

434-620

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/4", Gr 5

1шт.

b

232-5316

FLANGE NUT,Flg, 3/8"-16

1шт.

c

434-612

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

3/8 x 3/4

1шт.

d

281-54910

SELF-TAP SCREW,Hex Wash Hd, 3/8"-16 x 5/8"

3/8 st x 5/8

1шт.

e

433-624

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 1/2", Gr 5

1шт.

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

2шт.

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
