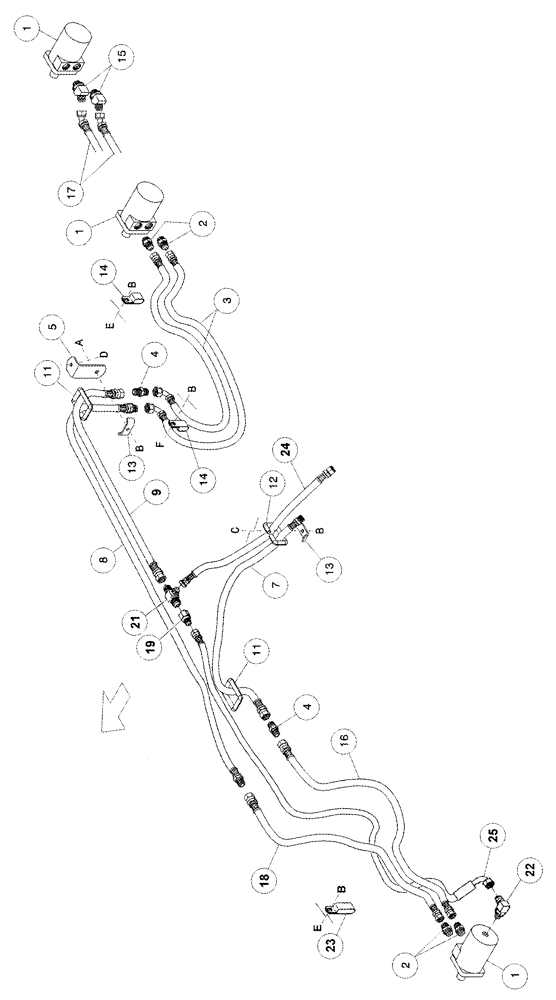

Запчасти Case IH 1052 (09-10) - HYDRAULIC CIRCUIT - DRAPER DRIVE, 36.0 FOOT 3 DECK HEADER FIELD INSTALLED KIT ASN CCC0011321 (09) - CHASSIS

1

392739A1

HYDRAULIC MOTOR

Draper Drive, Replaces 338358A1, Inc. 126-124

3шт.

126-124

WOODRUFF KEY,#15, 1/4" x 1", HT

3шт.

346200A1

SEAL KIT

3шт.

2

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

7/8 fl x Or

4шт.

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

4шт.

3

345971A1

HOSE

3325 mm (130-29/32 in), Right-Hand, Inboard

2шт.

4

218-435

HYD CONNECTOR,7/8" - 14 Male JIC x 7/8" - 14 Male JIC

4шт.

5

345969A1

ANGLE BAR

1шт.

7

363054A1

HOSE

750 mm (29-1/2 in)

1шт.

8

386377A1

HOSE ASSY.

1шт.

9

396007A1

HOSE

2300 mm (90-1/2 in)

1шт.

11

369995A1

SEAL

2шт.

12

369996A1

CONDUIT

1шт.

13

1954807C1

CLAMP

2шт.

14

470375C1

CLAMP,1", Insul, 3/8" Bolt

3шт.

15

218-5137

ELBOW,45 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

2шт.

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

2шт.

16

372315A1

HOSE

3820 mm (150-3/8 in), Left-Hand

2шт.

17

338743A1

HOSE

1500 mm (59 in)

2шт.

See Figure 09-14

1шт.

18

381138A1

HOSE

2450 mm (96-15/32 in)

1шт.

19

392908A1

FITTING

5/8 x 3/8

1шт.

21

218-595

TEE,7/8"-14, 37 Degree

7/8 x 7/8 x 7/8

1шт.

22

218-5278

ELBOW,9/16" - 18 JIC x 7/16" - 20 ORB

1шт.

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

23

338322A1

CLIP

Left-Hand

3шт.

24

396003A1

HOSE

1250 mm (49-7/32 in)

1шт.

25

396008A1

HOSE

4470 mm (176 in)

1шт.

a

433-628

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 3/4", Gr 5

3/8 x 1-3/4

1шт.

b

232-5316

FLANGE NUT,Flg, 3/8"-16

1шт.

c

433-628

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 3/4", Gr 5

3/8 x 1-3/4

1шт.

d

281-54910

SELF-TAP SCREW,Hex Wash Hd, 3/8"-16 x 5/8"

3/8 st x 5/8

1шт.

e

434-612

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

3/8 x 3/4

1шт.

f

409-7616

BOLT,Hex Flg, 3/8" - 16 x 1", Spcl

1шт.
