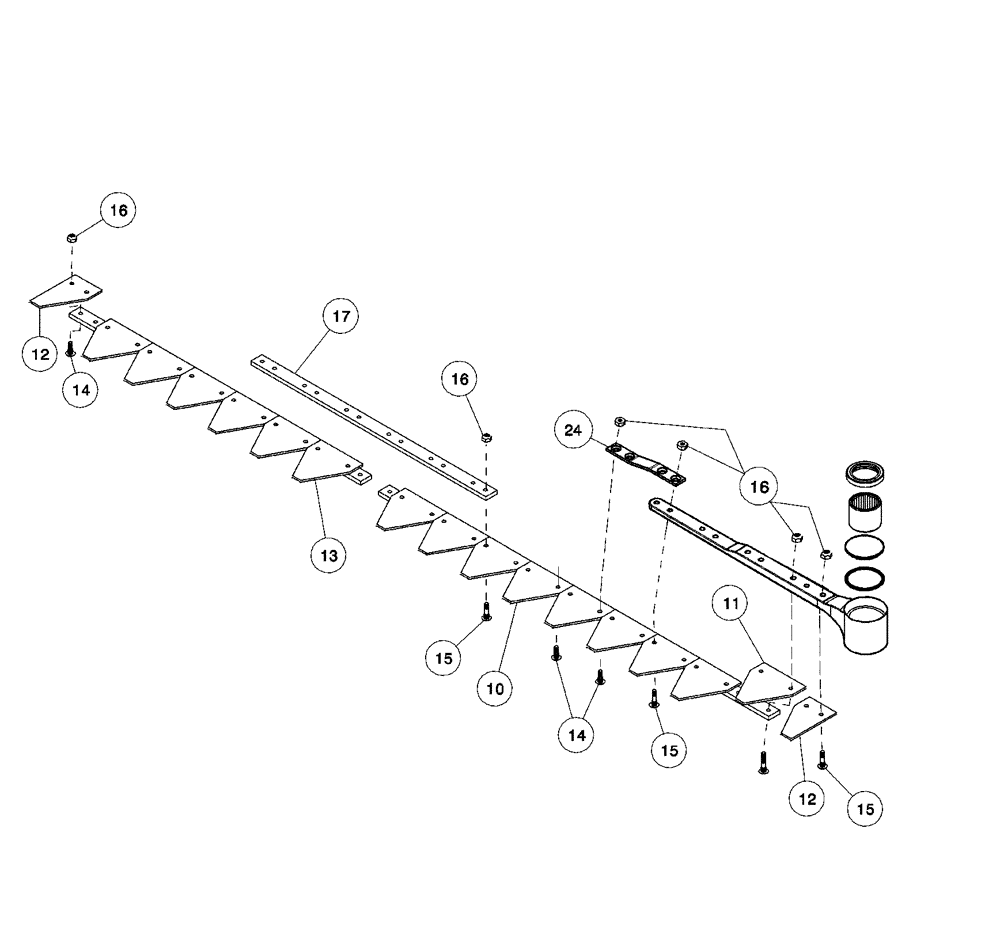

Запчасти Case IH 1042 (09-07A) - KNIFE ASSEMBLY - FINE SICKLES

REF

INSTRUCTION

Knife Assy, Complete, Inc. 10 - 13, 15 - 17, 24

1шт.

10

338616A1

KNIFE ASSY

Inc. 338617A1, Left Hand

1шт.

11

1327448C1

KNIFE SECTION

SECTION, KNIFE Top-serrated

3шт.

12

1327411C1

KNIFE SECTION

SECTION, KNIFE Half

1шт.

13

131482A1

KNIFE ASSY

9 ft, Right Hand

1шт.

30.0 Foot Header

1шт.

13

126689A1

KNIFE ASSY

15 ft, Right Hand

1шт.

36.0 Foot Header

1шт.

15

347236A1

SCREW

No. 12 x 59/64

8шт.

16

1954816C1

LOCK NUT

No. 12

8шт.

17

126622A1

BAR

Splice

1шт.

24

381144A1

BAR

Reinforcing

1шт.
