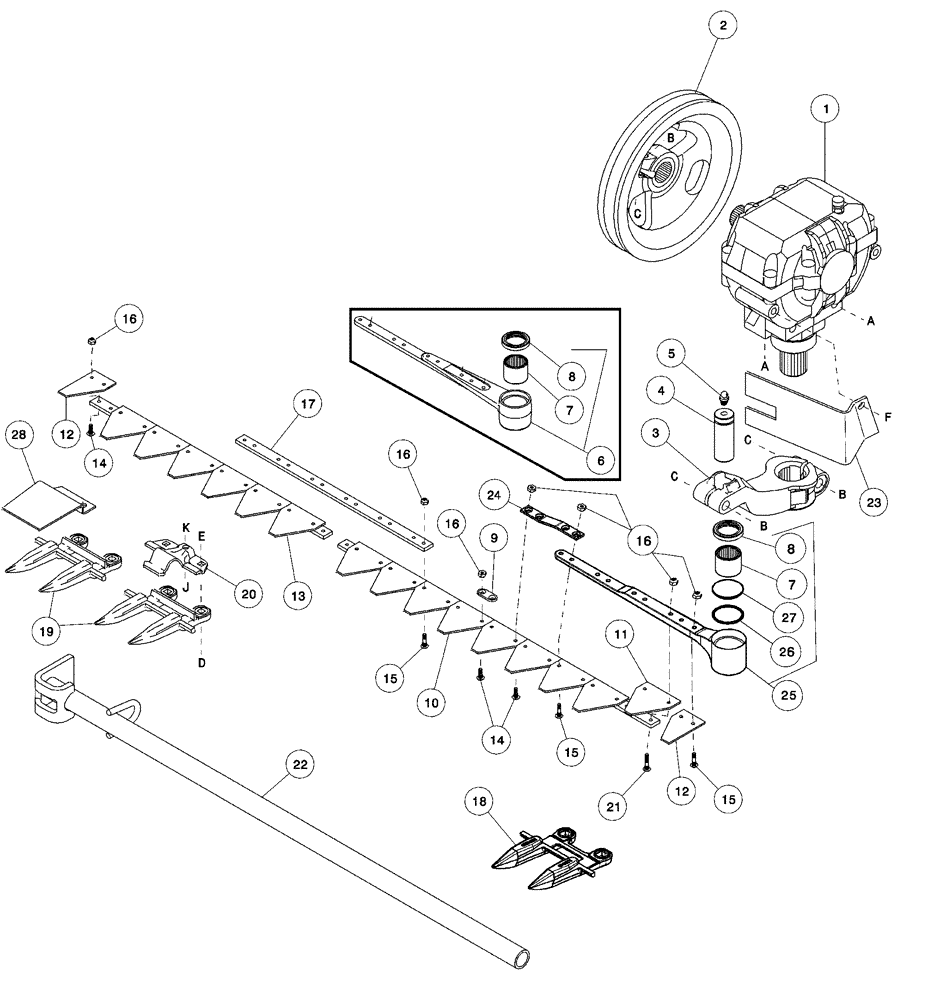

Запчасти Case IH 1042 (09-07) - KNIFE ASSEMBLY

1

338670A1

DRIVE

Knife Drive

1шт.

See Figure 09-08

1шт.

1

338670A1R

REMAN-GEARBOX

Remanufactured, Wobble Box

1шт.

1

338670A1C

CORE-GEARBOX

Return Number

1шт.

2

338585A1

GUIDE

1шт.

3

369994A1

ARM

Replaces 338669A1

1шт.

4

345893A1

PIN,31.76mm OD x 81mm L

1шт.

5

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

1шт.

6

345894A1

HEAD

Inc. 7 and 8, Serial Range: -CCC0009438

1шт.

7

A27827

NEEDLE BEARING,Needle, 31.75mm ID x 38.1mm OD x 31.75mm W

1шт.

8

345892A1

SEAL KIT

1шт.

9

338617A1

BRACKET

Package of 77

1шт.

10

338616A1

KNIFE ASSY

Fine Serrations, Left Hand, Inc. 9

1шт.

10

345891A1

KNIFE ASSY

Coarse Serrations, Left Hand, Inc. 9, Optional With 338616A1

1шт.

11

1327448C1

KNIFE SECTION

SECTION, KNIFE Fine Serrations, Top-serrated (Kondex)

1шт.

11

87422350

KNIFE SECTION

Fine Serrations, Top-serrated (Busatis)

1шт.

11

345890A1

KNIFE SECTION

SECTION, KNIFE Coarse Serrations, Top-serrated, Optional With 1327448C1

1шт.

12

1327411C1

KNIFE SECTION

SECTION, KNIFE Optional With, 1327448C1

2шт.

12

1327411C1

KNIFE SECTION

SECTION, KNIFE Half

2шт.

13

131482A1

KNIFE ASSY

9 ft, Fine Serrations, Right Hand

1шт.

30.0 Foot Header

1шт.

13

345896A1

KNIFE ASSY

Coarse Serrations, Right Hand, Optional With 131482A1

1шт.

30.0 Foot Header

1шт.

13

126689A1

KNIFE ASSY

15 ft, Fine Serrations, Right Hand

1шт.

36.0 Foot Header

1шт.

13

372317A1

KNIFE

Coarse Serrations, Right Hand, Optional With 126689A1

1шт.

36.0 Foot Header

1шт.

14

700708646

BOLT AND NUT,Slotted, Btn Hd, #12 - 24 x 5/8"

No. 12 x 5/8

1шт.

15

347236A1

SCREW

No. 12 x 59/64

14шт.

16

1954816C1

LOCK NUT

No. 12

1шт.

17

126622A1

BAR

1шт.

18

87422041

GUARD

First Three at Left End, Replaces 337968A1

3шт.

19

1327275C1

GUARD

1шт.

20

338591A1

BAR

1шт.

21

1979166C1

BOLT

No. 12 x 1-1/8

7шт.

22

338619A1

SUPPORT

1шт.

23

352666A1

SHIELD

1шт.

24

381144A1

BAR

Reinforcing

1шт.

25

395823A1

HEAD ASSY.

Sickle, Inc. 7, 8, 26 and 27, Start Serial: CCC0009439

1шт.

26

430320A1

O-RING,0.07" Thk x 1.364" ID, -28, Cl 5, 75 Duro

Sickle Head, Start Serial: CCC0009439

1шт.

27

395820A1

PLUG

Sickle Head, Start Serial: CCC0009439

1шт.

28

344734A1

SHIELD

Right-Hand End

1шт.

a

426-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 8

1шт.

b

413-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 5

1шт.

c

231-41410

NUT,5/8"-11, GB

1шт.

d

433-724

CARRIAGE BOLT,Sq Nk, 7/16" - 14 x 1 1/2", Gr 5

7/16 x 1-1/2

1шт.

e

429-107

NUT,7/16"-14, G8

1шт.

f

409-7616

BOLT,Hex Flg, 3/8" - 16 x 1", Spcl

1шт.

j

125-10015

NUT,3/8"-16, Stainless

1шт.

k

113-2299

BOLT,Hex, 3/8" - 16 x 3/4", SST

1шт.
