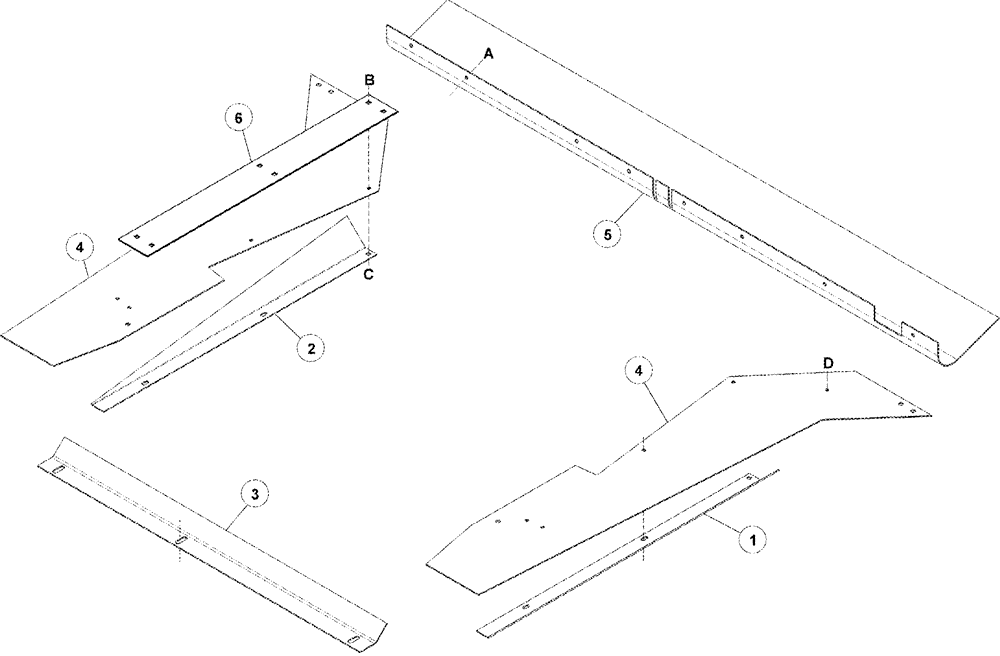

Запчасти Case IH 1042 (09-37) - EUROPEAN HEADER UPGRADES SEED SAVER ATTACHMENT

1

429265A1

DEFLECTOR

Left-Hand

1шт.

2

429266A1

DEFLECTOR

Right-Hand

1шт.

3

429268A1

DEFLECTOR

Front, Plastic

1шт.

4

429267A1

RUBBER SEAL

2шт.

5

429269A1

DEFLECTOR

Rear, Plastic

1шт.

6

REF

INSTRUCTION

Bar

2шт.

See Figure 09-29

1шт.

a

281-54910

SELF-TAP SCREW,Hex Wash Hd, 3/8"-16 x 5/8"

3/8 st x 5/8

1шт.

b

411-612

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3/4", Gr 2

3/8 x 3/4

1шт.

c

232-5316

FLANGE NUT,Flg, 3/8"-16

1шт.

d

409-7612

BOLT,3/8"-16 x 1.09" OAL

1шт.
