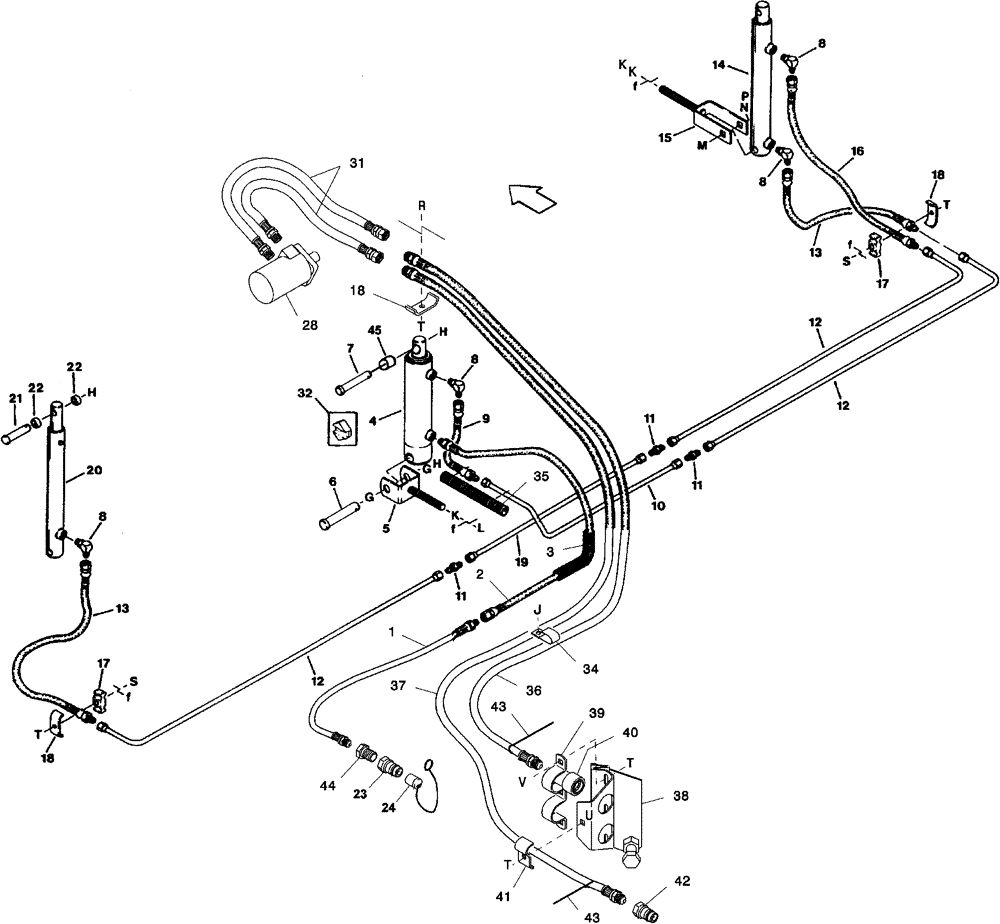

Запчасти Case IH 1042 (09-04) - HYDRAULIC CIRCUIT REEL LIFT AND REEL DRIVE - 36.0 FOOT HEADER

1

338301A1

HOSE

1шт.

2

176856A1

HYDRAULIC HOSE

1шт.

3

126632A1

CONDUIT

1шт.

4

1986047C1

CYLINDER,Double Acting, 30mm Rod, 155mm Stroke

57 ID x 155 strk, Order 394521A1, Serial Range: -CCC0009438

1шт.

1986073C1

SEAL KIT

1шт.

1986074C1

PISTON

1шт.

4

394521A1

CYLINDER

MacDon Part Number 113854 Stamped On Cylinder, Replaces 1986047C1, Serial Range: -CCC0009438

1шт.

394522A1

SEAL KIT

1шт.

1986074C1

PISTON

1шт.

5

126631A1

CLEVIS

1шт.

6

344688A1

CLEVIS PIN

3/4 x 4-1/8

1шт.

7

352621A1

CLEVIS PIN

5/8 x 3-3/4

1шт.

8

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

9/16 fl x adj Or

4шт.

9

352618A1

HOSE

1шт.

10

126743A1

HYD TUBE,9.53 mm OD, 2250 mm Length

1шт.

11

218-734

UNION,9/16"-18, 37 Degree x 9/16"-18, 37 Degree

9/16 fl

3шт.

12

126741A1

HYD TUBE,9.53 mm OD, 3152.5 mm Length

3шт.

13

1344536C1

HOSE

534 mm (21 in)

2шт.

14

1337009C2

CYLINDER ASSY.

38 ID x 254 mm strk, Order 394520A1, Serial Range: -CCC0009438

1шт.

823143C91

SEAL KIT

1шт.

161332C2

PISTON

1шт.

14

394520A1

CYLINDER ASSY.

MacDon Part Number 113798, Replaces 1337009C2, Serial Range: CCC0009439-CCC0009684

1шт.

394524A1

SEAL KIT

1шт.

161332C2

PISTON

1шт.

14

394520A1

CYLINDER ASSY.

MacDon Part Number 118337, Start Serial: CCC0009685

1шт.

394524A1

SEAL KIT

1шт.

161332C2

PISTON

1шт.

15

338750A1

CLEVIS

2шт.

16

126624A1

HOSE

780 mm (31 in)

1шт.

17

1327304C1

CLAMP

Plastic

2шт.

18

1954807C1

CLAMP

Steel

3шт.

19

126742A1

HYD TUBE,9.53 mm OD, 4535 mm Length

1шт.

20

1337004C1

HYDRAULIC CYLINDER,25.4mm Rod, 250mm Stroke

Left-Hand

1шт.

823144C91

SEAL KIT

Seal

1шт.

21

1344998C1

CLEVIS PIN

5/8 x 2-1/2

2шт.

22

1276751C1

SPACER

4шт.

23

1336545C1

COUPLING

Male

1шт.

24

131610A1

PLUG

1шт.

28

126686A1

MOTOR, HYDRAULIC

Reel Drive, Inc. 126-124

1шт.

28

591447R

REMAN-STEERING VALVE

1042 DRAPER HEADER, Reel Drive, Reman for New PN 126686A1

1шт.

28

591447C

CORE-STEERING VALVE

Return Number

1шт.

126-124

WOODRUFF KEY,#15, 1/4" x 1", HT

1шт.

346200A1

SEAL KIT

1шт.

31

338849A1

HOSE

2шт.

32

826031C1

RESTRICTOR

1шт.

34

338322A1

CLIP

3шт.

35

352635A1

CONDUIT

1шт.

36

352632A1

HOSE

3460 mm (136-1/4 in)

1шт.

37

352633A1

HOSE

5000 mm (196-55/64 in)

1шт.

38

352631A1

HOLDER

1шт.

39

352634A1

HOLDER

1шт.

40

1282338C91

COUPLING, QUICK, FEM

7/8 NF, Self-Sealing

1шт.

41

1276808C1

CLIP

1шт.

42

1272399C2

QUICK MALE COUPLING

7/8 NF, Self-Sealing, Male

1шт.

43

352622A1

FASTENER

2шт.

44

217-43

REDUCER,1/2" - 14 NPTF x 1/4" - 18 Fem NPTF

1шт.

45

394523A1

SPACER

Used With 394521A1, Start Serial: CCC0009439

1шт.

g

495-81042

WASHER,25/32" x 1 1/2" x .120"

25/32 x 1-1/2 x 7/64

1шт.

h

32-1220

COTTER PIN,3/16" x 1 1/4"

1шт.

j

281-54910

SELF-TAP SCREW,Hex Wash Hd, 3/8"-16 x 5/8"

3/8 st x 5/8

1шт.

k

425-1010

NUT,5/8"-11, G5

1шт.

l

425-1410

JAM NUT,Jam, 5/8"-11, G5

5/8

1шт.

m

433-1056

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 3 1/2", Gr 5

5/8 x 3-1/2

1шт.

n

495-11066

WASHER,5/8", SAE

21/32 x 1-5/16 x 3/32

1шт.

p

231-41410

NUT,5/8"-11, GB

1шт.

r

433-628

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 3/4", Gr 5

3/8 x 1-3/4

1шт.

s

433-632

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 2", Gr 5

1шт.

t

232-5316

FLANGE NUT,Flg, 3/8"-16

1шт.

u

434-620

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/4", Gr 5

1шт.

v

434-612

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

3/8 x 3/4

1шт.
