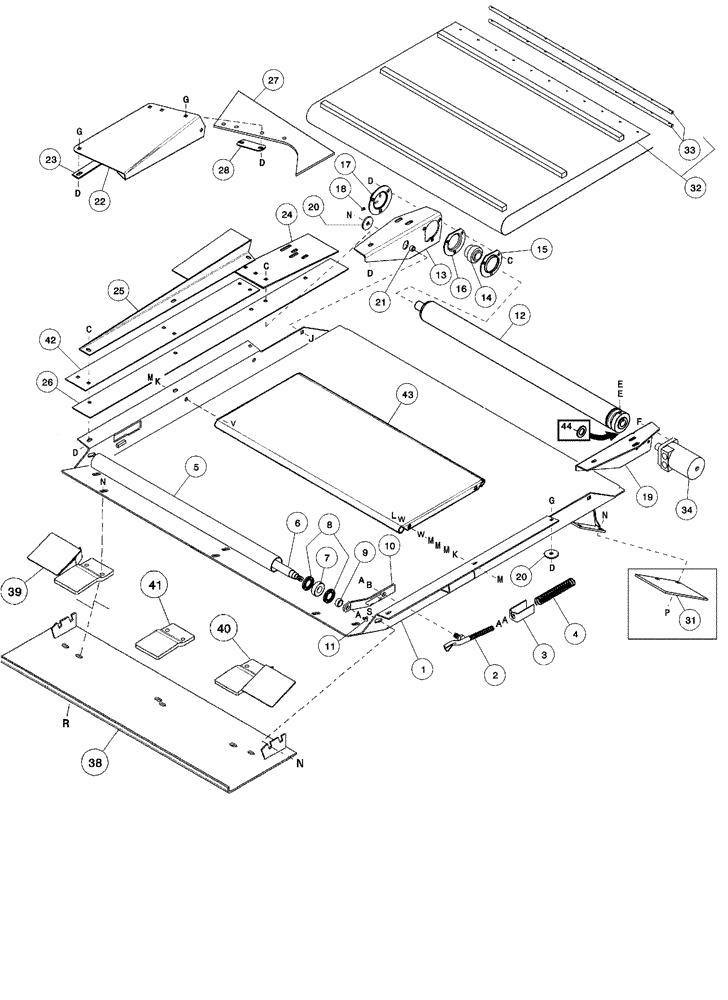

Запчасти Case IH 1042 (09-29) - COMBINE ADAPTER FEED DRAPER ASN CCC0010467

1

338362A1

PAN

38 Inch Deck

1шт.

1

430280A1

PAN

45 Inch Deck

1шт.

2

338363A1

ROD

2шт.

3

338327A1

SUPPORT

2шт.

4

338592A1

SPRING

2шт.

5

338326A1

TUBE,51.96 mm ID, 57.3 mm OD, 901 mm Length

Idler, 38 Inch Deck

1шт.

5

430277A1

TUBE

Idler, 45 Inch Deck

1шт.

6

338364A1

SHAFT

38 Inch Deck

1шт.

6

430278A1

SHAFT

45 Inch Deck

1шт.

7

338345A1

BALL BEARING

2шт.

8

341036A1

OIL SEAL

4шт.

9

338344A1

SPACER

2шт.

10

338366A1

ARM

Idler

2шт.

11

219-57

LUBE NIPPLE,90 Degree Elbow, 1/4" - 28 NPTF

1/4 tpr x 3/4

2шт.

12

450914A1

ROLLER

Drive, 38 Inch Deck, Replaces 338323A1

1шт.

12

450915A1

ROLLER

Drive, 45 Inch Deck, Replaces 430276A1

1шт.

13

428833A1

SUPPORT

Right Hand

1шт.

14

557116R91

BALL BEARING,30.16mm ID x 62mm OD x 18mm W

Inc. 557117R11

1шт.

557117R11

COLLAR

Locking

1шт.

15

338335A1

FLANGE

1шт.

16

338336A1

FLANGE

1шт.

17

338337A1

COVER

1шт.

18

219-8

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

19

428832A1

SUPPORT

Left-Hand

1шт.

20

10752K

WASHER

4шт.

21

338295A1

SPACER

2шт.

22

410742A1

SUPPORT

Right Hand Rear, 38 Inch Deck, Shown

1шт.

22

410741A1

SUPPORT

Left Hand Rear, 38 Inch Deck

1шт.

22

410738A1

SUPPORT

Right Hand Rear, 45 Inch Deck

1шт.

22

410737A1

SUPPORT

Left Hand Rear, 45 Inch Deck

1шт.

23

410736A1

BAR

Outboard, 38 and 45 Inch Decks

2шт.

24

428419A1

SUPPORT

Rear, 38 and 45 Inch Decks

2шт.

25

410692A1

SUPPORT

Right Hand Front, Shown

1шт.

25

410733A1

SUPPORT

Left Hand Front

1шт.

26

341038A1

SEAL

2шт.

27

410743A1

FLAP

Rubber, 38 and 45 Inch Decks

2шт.

28

410740A1

BAR

38 and 45 Inch Decks

2шт.

31

338386A1

PLATE

1шт.

32

338361A1

DRAPER

38 Inch Deck

1шт.

32

430272A1

DRAPER

45 Inch Deck

1шт.

33

175225A1

KIT

Inc. 33A,33B

1шт.

33a

NSS

NOT SOLD SEPARAT

Slat

2шт.

33b

NSS

NOT SOLD SEPARAT

Kit, Screws

1шт.

430274A1

LINKAGE

Inc. 33C,33D

1шт.

33c

NSS

NOT SOLD SEPARAT

Slat

2шт.

33d

NSS

NOT SOLD SEPARAT

Kit, Screws

1шт.

34

429250A1

MOTOR, HYDRAULIC

Draper Drive

1шт.

See Figure 09-27

1шт.

38

87422154

PLATE

38 Inch Deck, [Superseded to Qty [1] 87461312 and Qty [2] 87461308] Welding Required, MacDon Instruction 147365

1шт.

38

87422155

PLATE

45 Inch Deck, Replaces 87000735

1шт.

39

87422157

SUPPORT

Right-Hand, Replaces 338351A1

1шт.

40

87422156

SUPPORT

Left-Hand, Replaces 338352A1

1шт.

41

338353A1

RETAINER

2шт.

42

338463A1

BAR

2шт.

43

382126A1

SUPPORT

1001 x 560 mm, Draper, 38 Inch Deck

1шт.

43

430275A1

SUPPORT

Draper, 45 Inch Deck

1шт.

44

451176A1

WASHER

Flat, Serial Range: -CCC0010578

1шт.

Use As Spacer For Drive Rollers Without Stepped Hub

1шт.

a

425-1010

NUT,5/8"-11, G5

1шт.

b

492-11062

BEARING WASHER,5/8"

1шт.

c

33-616

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1", Gr 5

3/8 x 1

1шт.

d

232-5316

FLANGE NUT,Flg, 3/8"-16

1шт.

e

483-1385

SET SCREW,Hex Soc, 3/8"-16 x 5/16"

3/8 x 5/16

1шт.

f

358048A1

LOCK BOLT

3/8 NC x 3/4

1шт.

g

434-620

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/4", Gr 5

1шт.

j

434-820

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/4", Gr 5

1/2 x 1-1/4

1шт.

k

80679

LOCK WASHER,1/20.507 CST ZND

1шт.

l

1980673C1

BOLT

1/2 x 2-1/4

1шт.

m

425-108

NUT,1/2" - 13, Gr 5

1шт.

n

231-5348

FLANGE NUT,Flg, 1/2"-13

1шт.

p

434-816

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1", Gr 5

1/2 x 1

1шт.

r

434-824

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/2", Gr 5

1/2 x 1-1/2

1шт.

s

434-816

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1", Gr 5

1/2 x 1

1шт.

v

360-816

BOLT,Hex, 1/2" - 13 x 1", Gr 8

1/2 x 1

1шт.

w

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32")

1шт.
