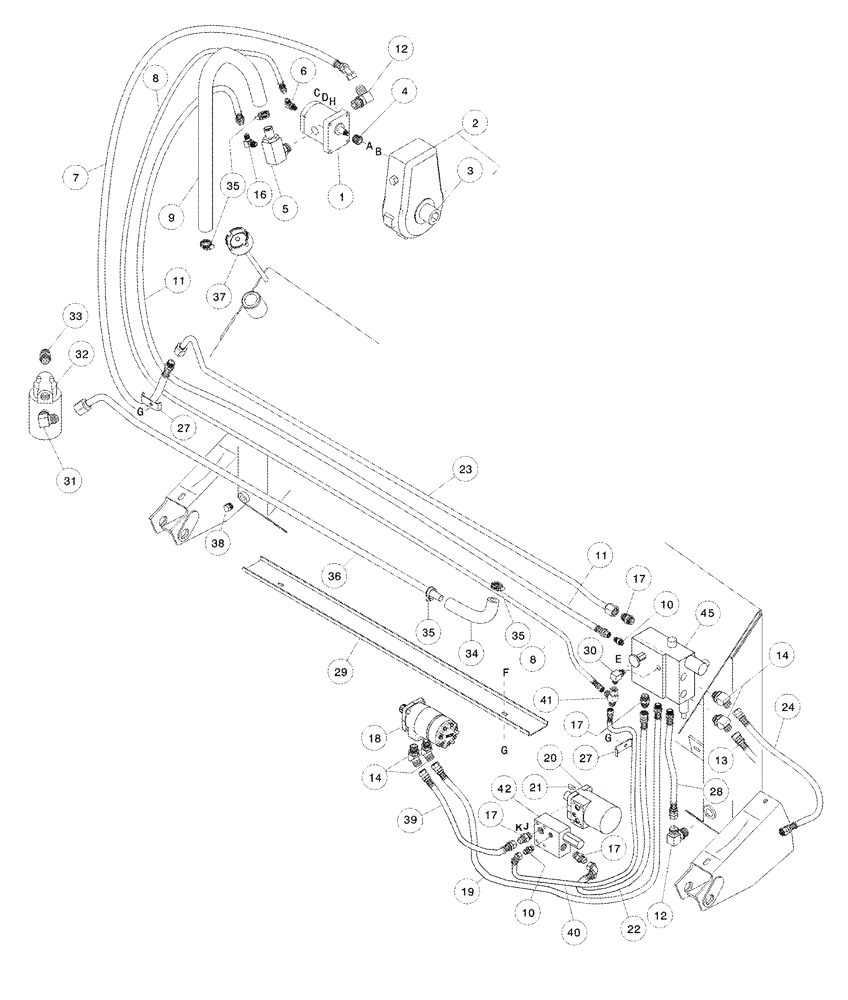

Запчасти Case IH 1042 (09-27) - COMBINE ADAPTER HYDRAULIC CIRCUIT 872 COMBINE ADAPTER ASN CCC0010467

1

338354A1

PUMP

1шт.

338355A1

SEAL KIT

1шт.

126-111

WOODRUFF KEY,#5, 1/8" x 5/8", HT

1шт.

2

349045A1

DRIVE

Gearbox

1шт.

See Figure 09-28

1шт.

2

349045A1R

REMAN-GEARBOX

Remanufactured GEARBOX

1шт.

2

349045A1C

CORE-GEARBOX

Return Number

1шт.

3

349047A1

SHAFT

Gearbox

1шт.

See Figure 09-28

1шт.

4

338381A1

SPLINED BUSHING

1шт.

5

338356A1

VALVE

Check

1шт.

6

218-5278

ELBOW,9/16" - 18 JIC x 7/16" - 20 ORB

1шт.

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

7

410666A1

HOSE

950 mm (37-13/32 in)

1шт.

8

352185A1

HOSE

2900 mm (114-11/64 in)

1шт.

9

338382A1

HOSE

800 mm (31-1/2 in)

1шт.

10

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

1шт.

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

11

352189A1

HOSE

2800 mm (110-1/4 in)

1шт.

12

218-5119

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1-1/16" - 12 Male ORB

2шт.

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

2шт.

13

REF

INSTRUCTION

Hose, Return, Blue

1шт.

14

218-5137

ELBOW,45 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

4шт.

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

4шт.

16

347515A1

VALVE

Check

1шт.

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

17

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

7/8 fl x Or

4шт.

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

4шт.

18

410693A1

MOTOR

RTD Drive

1шт.

429255A1

SEAL KIT

1шт.

19

410669A1

HOSE

850 mm (33-15/32 in)

1шт.

20

429250A1

MOTOR, HYDRAULIC

Draper Drive, Includes 21

1шт.

429255A1

SEAL KIT

1шт.

21

410841A1

WOODRUFF KEY

SAE 15

1шт.

22

410665A1

HOSE

800 mm (31-1/2 in)

1шт.

23

352181A1

TUBE ASSY.

1шт.

24

410670A1

HOSE

1100 mm (43-5/16 in), Orange

1шт.

27

352187A1

HOLDER

2шт.

28

410672A1

HOSE

540 mm (21-1/4 in)

1шт.

29

338409A1

HOLDER

1шт.

30

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

9/16 fl x adj Or

1шт.

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

31

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

1шт.

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

32

338320A1

FILTER

Assembly

1шт.

338321A1

ELEMENT

Filter

1шт.

33

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

1шт.

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

34

338404A1

HOSE

1шт.

35

311164C1

CLAMP

4шт.

36

338403A1

LINE

1шт.

37

338324A1

PLUG

Includes Indicator

1шт.

38

338319A1

PLUG

3/4 NF, Magnetic, Includes 237-6008

1шт.

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

39

410669A1

HOSE

850 mm (33-15/32 in)

1шт.

40

392740A1

HOSE

1100 mm (43-5/16 in)

1шт.

41

218-5222

TEE,37 Degree, 9/16"-18, x 9/16"-18, Fem Sw Run

1шт.

42

429251A1

VALVE

1шт.

429263A1

VALVE

Cartridge PS10-40H-0-N-4/2.0

1шт.

45

429244A1

VALVE

1шт.

See Figure 09-27A

1шт.

429248A1

SEAL KIT

1шт.

a

892-11012

LOCK WASHER,M12

1шт.

b

829-23412

THIN NUT,Thin, M12 x 1.5, Cl 05

M12 - 1.5

1шт.

c

864-8030

HEX SOC SCREW,M8 x 30mm, Cl 8.8

1шт.

d

892-11008

LOCK WASHER,8mm ID

1шт.

e

409-7612

BOLT,3/8"-16 x 1.09" OAL

1шт.

f

433-628

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 3/4", Gr 5

3/8 x 1-3/4

1шт.

g

232-5316

FLANGE NUT,Flg, 3/8"-16

1шт.

h

495-11034

WASHER,5/16", SAE

(11/32 x 11/16 x 1/16")

1шт.

j

492-11031

LOCK WASHER,5/16"

1шт.

k

13-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

1шт.
