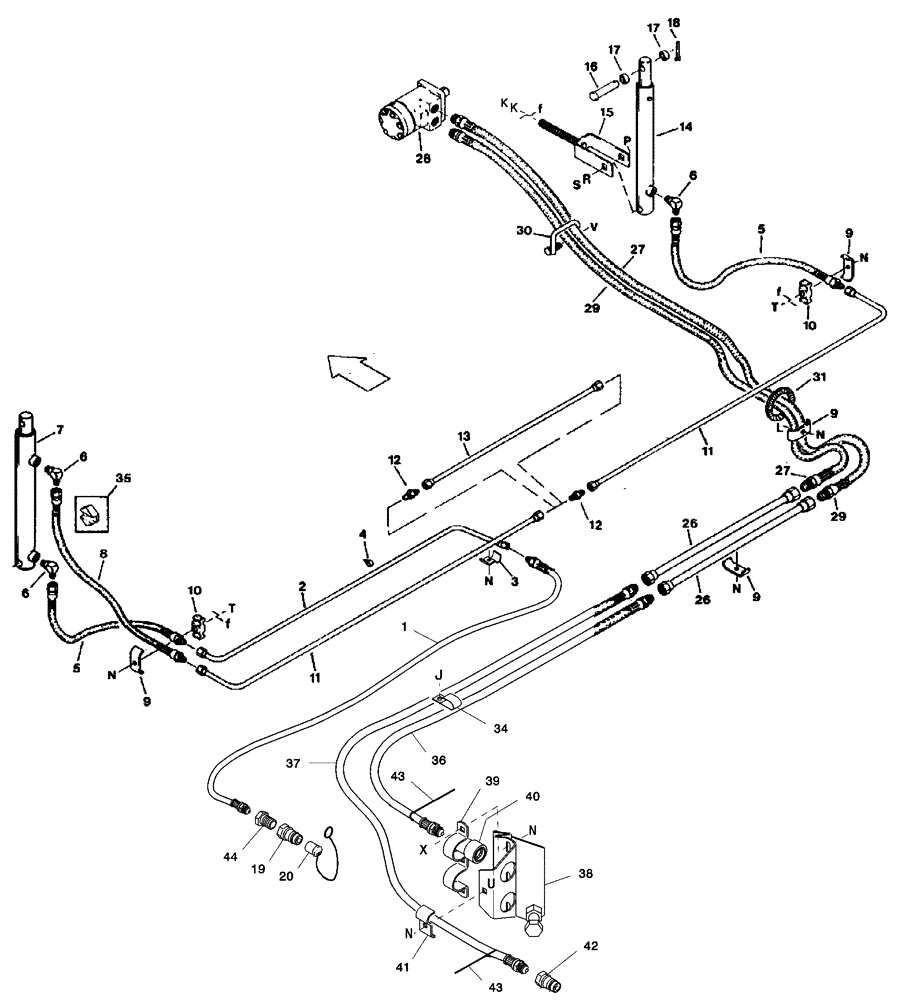

Запчасти Case IH 1042 (09-03) - HYDRAULIC CIRCUIT REEL LIFT AND REEL DRIVE - 30.0 FOOT HEADER

1

338301A1

HOSE

1шт.

2

338579A1

LINE

1шт.

3

1276808C1

CLIP

Replaces 344616A1

1шт.

4

1337510C1

CLIP

, Serial Range: -CCC0009269

4шт.

5

1344536C1

HOSE

534 mm (21 in)

2шт.

6

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

9/16 fl x adj Or

3шт.

7

1337009C2

CYLINDER ASSY.

38 ID x 254 mm strk, Order 394520A1, Serial Range: -CCC0009438

1шт.

823143C91

SEAL KIT

1шт.

161332C2

PISTON

1шт.

7

394520A1

CYLINDER ASSY.

MacDon Part Number 113798, Replaces 1337009C2, Serial Range: CCC0009439-CCC0009684

1шт.

394524A1

SEAL KIT

1шт.

161332C2

PISTON

1шт.

7

87414724

LIFT CYLINDER

MacDon Part Number 118337, Start Serial: CCC0009685

1шт.

394524A1

SEAL KIT

1шт.

161332C2

PISTON

1шт.

8

126624A1

HOSE

780 mm (31 in)

1шт.

9

1954807C1

CLAMP

Steel

11шт.

10

1327304C1

CLAMP

Plastic

2шт.

11

126741A1

HYD TUBE,9.53 mm OD, 3152.5 mm Length

2шт.

12

218-734

UNION,9/16"-18, 37 Degree x 9/16"-18, 37 Degree

9/16 fl

2шт.

13

131541A1

LINE

1шт.

14

1337004C1

HYDRAULIC CYLINDER,25.4mm Rod, 250mm Stroke

1шт.

823144C91

SEAL KIT

1шт.

15

338750A1

CLEVIS

2шт.

16

1344998C1

CLEVIS PIN

5/8 x 2-1/2

2шт.

17

1276751C1

SPACER

4шт.

18

32-1220

COTTER PIN,3/16" x 1 1/4"

2шт.

19

1336545C1

COUPLING

Male

1шт.

20

131610A1

PLUG

1шт.

26

131472A1

LINE

2шт.

27

131522A1

HOSE

2400 mm (95 in)

1шт.

28

126686A1

MOTOR, HYDRAULIC

Reel Drive, Inc. 126-124

1шт.

28

591447R

REMAN-STEERING VALVE

1042 DRAPER HEADER, Reel Drive, Reman for New PN 126686A1

1шт.

28

591447C

CORE-STEERING VALVE

Return Number

1шт.

126-124

WOODRUFF KEY,#15, 1/4" x 1", HT

1шт.

346200A1

SEAL KIT

1шт.

29

131522A1

HOSE

2400 mm (95 in)

1шт.

30

131515A1

GUIDE

(Not Used With Hydraulic Reel Fore-Aft Option)

1шт.

31

1336860C1

HOSE

2шт.

34

338322A1

CLIP

4шт.

35

826031C1

RESTRICTOR

1шт.

36

352632A1

HOSE

3460 mm (136-1/4 in)

1шт.

37

352633A1

HOSE

5000 mm (196-55/64 in)

1шт.

38

352631A1

HOLDER

1шт.

39

352634A1

HOLDER

1шт.

40

1282338C91

COUPLING, QUICK, FEM

7/8 NF, Self-Sealing

1шт.

41

1276808C1

CLIP

1шт.

42

1272399C2

QUICK MALE COUPLING

7/8 NF, Self-Sealing, Male

1шт.

43

352622A1

FASTENER

2шт.

44

217-43

REDUCER,1/2" - 14 NPTF x 1/4" - 18 Fem NPTF

1шт.

j

281-54910

SELF-TAP SCREW,Hex Wash Hd, 3/8"-16 x 5/8"

3/8 st x 5/8

1шт.

k

425-1010

NUT,5/8"-11, G5

1шт.

l

434-624

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/2", Gr 5

3/8 NC X 1-1/2 inch

1шт.

n

232-5316

FLANGE NUT,Flg, 3/8"-16

1шт.

p

433-1056

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 3 1/2", Gr 5

5/8 x 3-1/2

1шт.

r

495-11066

WASHER,5/8", SAE

21/32 x 1-5/16 x 3/32

1шт.

s

231-41410

NUT,5/8"-11, GB

1шт.

t

433-628

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 3/4", Gr 5

3/8 x 1-3/4

1шт.

u

434-620

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/4", Gr 5

1шт.

v

231-4148

NUT,1/2"-13, GB

1/2

1шт.

x

434-612

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

3/8 x 3/4

1шт.
