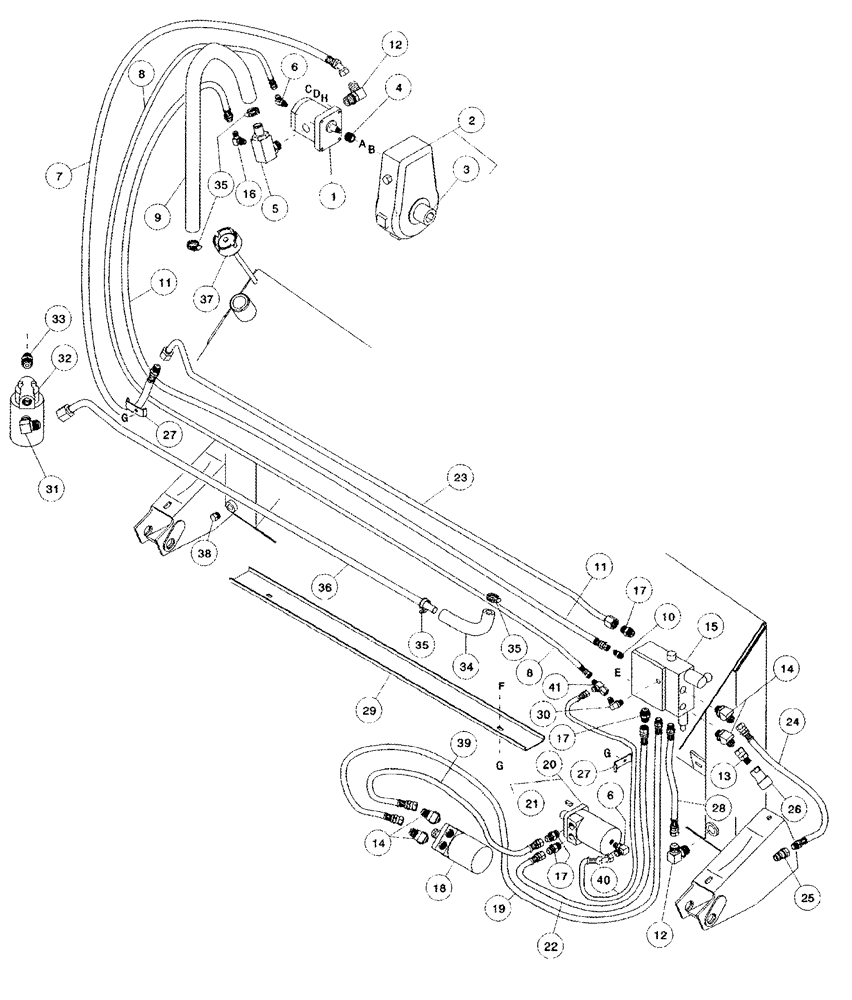

Запчасти Case IH 1042 (09-26) - COMBINE ADAPTER HYDRAULIC CIRCUIT 871 COMBINE ADAPTER BSN CCC0010466

1

338354A1

PUMP

1шт.

338355A1

SEAL KIT

1шт.

126-111

WOODRUFF KEY,#5, 1/8" x 5/8", HT

1шт.

87407844

SNAP RING

Retaining, Internal

1шт.

2

349045A1

DRIVE

Gearbox

1шт.

See Figure 09-28

1шт.

2

349045A1R

REMAN-GEARBOX

Remanufactured GEARBOX

1шт.

2

349045A1C

CORE-GEARBOX

Return Number

1шт.

3

349047A1

SHAFT

Gearbox

1шт.

See Figure 09-28

1шт.

4

338381A1

SPLINED BUSHING

1шт.

5

338356A1

VALVE

1шт.

6

218-5278

ELBOW,9/16" - 18 JIC x 7/16" - 20 ORB

1шт.

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

7

410666A1

HOSE

Replaces 352190A1

1шт.

8

352185A1

HOSE

2900 mm (114-11/64 in)

1шт.

9

338382A1

HOSE

800 mm (31-1/2 in)

1шт.

10

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

1шт.

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

11

352189A1

HOSE

1шт.

12

218-5119

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1-1/16" - 12 Male ORB

2шт.

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

2шт.

13

126618A1

FITTING

, Serial Range: -CCC0009269

1шт.

14

218-5137

ELBOW,45 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

4шт.

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

4шт.

15

352174A1

VALVE BLOCK

1шт.

338329A1

SEAL KIT

1шт.

338330A1

VALVE

Cartridge CV08-20-0-N-04, Serial Range: -CCC0009269

1шт.

352695A1

VALVE

Cartridge, CV10-20-0-N-05, Start Serial: CCC0009270

1шт.

338410A1

VALVE

Cartridge, RV08-20A-0-N-33/25, Serial Range: -CCC0009269

1шт.

352694A1

VALVE

Cartridge, RV10-26A-0-N-30/29, Start Serial: CCC0009270

1шт.

338411A1

VALVE

Cartridge, MR10-20B-0-N

1шт.

338412A1

HANDLE

Ball/Handle

1шт.

338331A1

VALVE

Cartridge, CV10-20--0-N-30

1шт.

338332A1

VALVE

Cartridge, EC10-40-0-N-80

1шт.

338333A1

PISTON

1шт.

278548

PLUG,Hex, 7/16"-20 ORB

1шт.

214389

PLUG,3/4" - 16 ORB

1шт.

16

347515A1

VALVE

1шт.

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

17

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

7/8 fl x Or

1шт.

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

18

338357A1

MOTOR

Auger Drive

1шт.

338359A1

SEAL KIT

1шт.

19

410669A1

HOSE

850 mm (33-15/32 in), Replaces 352166A1

2шт.

20

392739A1

HYDRAULIC MOTOR

Draper Drive, Replaces 338358A1, Inc. 21

1шт.

346200A1

SEAL KIT

1шт.

21

126-124

WOODRUFF KEY,#15, 1/4" x 1", HT

1шт.

22

338392A1

HOSE

850 mm (33-15/32 in)

1шт.

410665A1

HOSE

800 mm (31-1/2 in)

1шт.

23

352181A1

TUBE ASSY.

1шт.

24

90878C1

HYDRAULIC HOSE

, Serial Range: -CCC0009269

1шт.

24

410670A1

HOSE

1100 mm (43-5/16 in), Orange, Replaces 352696A1, Start Serial: CCC0009270

1шт.

25

1336545C1

COUPLING

Male, Serial Range: -CCC0009269

1шт.

26

1336542C1

COUPLING

Female, Serial Range: -CCC0009269

1шт.

123629A1

O-RING

1шт.

27

352187A1

HOLDER

2шт.

28

410672A1

HOSE

Replaces 352191A1

1шт.

29

338409A1

HOLDER

1шт.

30

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

9/16 fl x adj Or

1шт.

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

31

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

1шт.

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

32

338320A1

FILTER

1шт.

338321A1

ELEMENT

1шт.

33

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

1шт.

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

34

338404A1

HOSE

1шт.

35

311164C1

CLAMP

4шт.

36

338403A1

LINE

1шт.

37

338324A1

PLUG

Inc. Indicator

1шт.

38

338319A1

PLUG

3/4 NF, Magnetic

1шт.

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

39

410669A1

HOSE

850 mm (33-15/32 in), Replaces 352166A1

1шт.

39

410670A1

HOSE

1100 mm (43-5/16 in)

1шт.

40

392740A1

HOSE

1100 mm (43-5/16 in)

1шт.

41

218-5222

TEE,37 Degree, 9/16"-18, x 9/16"-18, Fem Sw Run

1шт.

a

892-11012

LOCK WASHER,M12

1шт.

b

829-23412

THIN NUT,Thin, M12 x 1.5, Cl 05

M12 - 1.5

1шт.

c

864-8030

HEX SOC SCREW,M8 x 30mm, Cl 8.8

1шт.

d

892-11008

LOCK WASHER,8mm ID

1шт.

e

409-7612

BOLT,3/8"-16 x 1.09" OAL

1шт.

f

433-628

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 3/4", Gr 5

3/8 x 1-3/4

1шт.

g

232-5316

FLANGE NUT,Flg, 3/8"-16

1шт.

h

495-11034

WASHER,5/16", SAE

(11/32 x 11/16 x 1/16")

1шт.
