Запчасти Case IH 1042 (09-24) - COMBINE ADAPTER FRAME AND FLOAT BSN CCC0010466

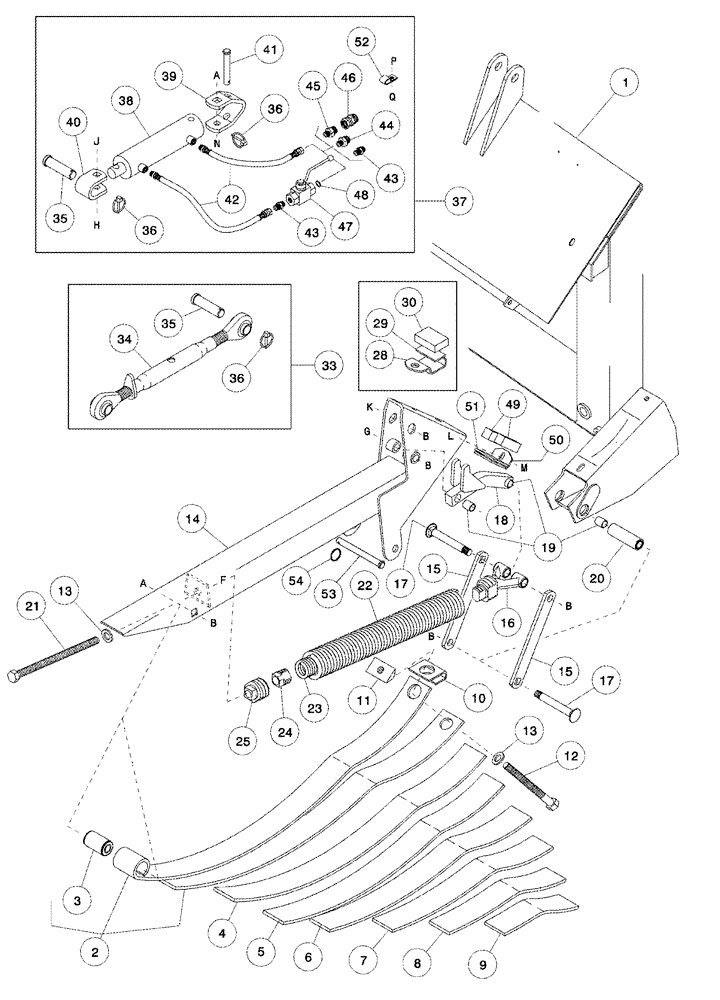

Схема запчастей Case IH 1042 - (09-24) - COMBINE ADAPTER FRAME AND FLOAT BSN CCC0010466
13
17
36
22
43
36
43
10
11
47
45
3
5
37
41
5151
20
1
44
18
2
36
35
34
50
19
7
33
38
12
16
6
53
30
14
46
42
39
35
29
40
4
25
28
49
13
8
23
15
17
9
48
54
21
24
15
52

Артикул

Название

Примечание

Количество

1

NSS

NOT SOLD SEPARAT

Frame, 871 Combine Adapter

1шт.

2

372632A1

SPRING

Set Of Two, Inc. Top Spring With Ref. 3 and Second Spring

2шт.

3

338339A1

RUBBER BUSHING

3/4 ID

2шт.

4

338439A1

SPRING

Third

2шт.

See Figure 09-26

1шт.

4

352687A1

SPRING

Third

2шт.

See Figure 09-26

1шт.

5

352688A1

SPRING

Fourth

2шт.

See Figure 09-26

1шт.

6

338440A1

SPRING

Fourth

2шт.

See Figure 09-26

1шт.

6

338440A1

SPRING

Fifth

2шт.

See Figure 09-26

1шт.

7

338441A1

SPRING

Fifth

2шт.

See Figure 09-26

1шт.

7

338441A1

SPRING

Sixth

2шт.

See Figure 09-26

1шт.

8

338442A1

SPRING

Sixth

2шт.

See Figure 09-26

1шт.

8

338442A1

SPRING

Seventh

2шт.

See Figure 09-26

1шт.

9

338444A1

SPRING

Seventh

2шт.

See Figure 09-26

1шт.

9

338444A1

SPRING

Eighth

2шт.

See Figure 09-26

1шт.

10

338435A1

RETAINER

2шт.

11

338378A1

PIVOT

2шт.

12

113-2730

BOLT,Hex, 3/4" - 10 x 7", Gr 5, Full Thd

2шт.

13

496-11081

WASHER,13/16" x 1 1/2" x .134", HDN

4шт.

14

338347A1

MEMBER

2шт.

15

338384A1

BAR

4шт.

16

338388A1

INSERT

Inc. Yoke

2шт.

17

340993A1

CARRIAGE BOLT

3/4 x 5-19/32

4шт.

18

338415A1

ARM

Inc. 19 (2)

2шт.

19

338395A1

BUSHING

8шт.

20

338436A1

PIN

Inc. 19 (2)

2шт.

21

113-2731

BOLT,Hex, 3/4" - 10 x 12", Gr 5, Full Thd

3/4 x 12

2шт.

22

340992A1

SPRING

Outer

2шт.

23

338385A1

SPRING

Inner

2шт.

24

338390A1

INSERT

Inner

2шт.

25

338389A1

INSERT

Front

2шт.

34

338462A1

JOINT ASSY.

Center

1шт.

35

352677A1

CLEVIS PIN

1 in dia

2шт.

36

341005A1

LINCH PIN

1 in dia, With Mechanical Adjuster

2шт.

36

341005A1

LINCH PIN

1 in dia, With Hydraulic Adjuster

3шт.

38

352671A1

CYLINDER ASSY.,Double Acting, 30mm Rod, 155mm Stroke

1шт.

1986073C1

SEAL KIT

Kit

1шт.

381146A1

PISTON

1шт.

39

352674A1

CLEVIS

1шт.

40

352672A1

CLEVIS

1шт.

41

352675A1

PIN

5/8 x 3-1/2

1шт.

42

176856A1

HYDRAULIC HOSE

2шт.

43

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

2шт.

44

218-5058

HYD CONNECTOR,9/16" - 18 Male JIC x 3/4" - 18 Male ORB

9/16 fl x 3/4 Or

2шт.

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

45

218-454

HYD CONNECTOR,9/16" - 18 Male JIC x 1/2" - 14 Male NPTF

3/8 stem x 1/2 PT

2шт.

46

222-1511

HYD CONNECTOR,Flareless, 7/8"-14 Tube x 1/2" NPT Fem

1/2 PT fem x 7/8 Or

2шт.

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

47

352676A1

VALVE

1шт.

48

238-6112

O-RING,0.103" Thk x 0.487" ID, -112, Cl 6, 90 Duro

1шт.

49

338453A1

PAD

4шт.

50

338457A1

ANGLE

Upper

2шт.

51

338454A1

SHIM

2шт.

52

352693A1

HOLDER

1шт.

53

344549A1

CLEVIS PIN

3/4 x 8

2шт.

54

410679A1

SPECIAL RING

2шт.

a

434-1272

CARRIAGE BOLT,Sht Sq Nk, 3/4" - 10 x 4 1/2", Gr 5

3/4 NC x 4-1/2

1шт.

b

231-42412

NUT,3/4"-10, GB

3/4 NC

1шт.

f

425-1012

NUT,3/4"-10, G5

1шт.

g

413-1272

BOLT,Hex, 3/4" - 10 x 4-1/2", Gr 5

3/4 x 4-1/2

1шт.

k

413-12120

BOLT,Hex, 3/4" - 10 x 7-1/2", Gr 5

3/4 x 7-1/2; 5

1шт.

l

433-672

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 4 1/2", Gr 5

1шт.

m

232-5316

FLANGE NUT,Flg, 3/8"-16

1шт.

p

434-612

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

3/8 x 3/4

1шт.

q

232-5316

FLANGE NUT,Flg, 3/8"-16

1шт.

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

Выбрано товаров: 76
