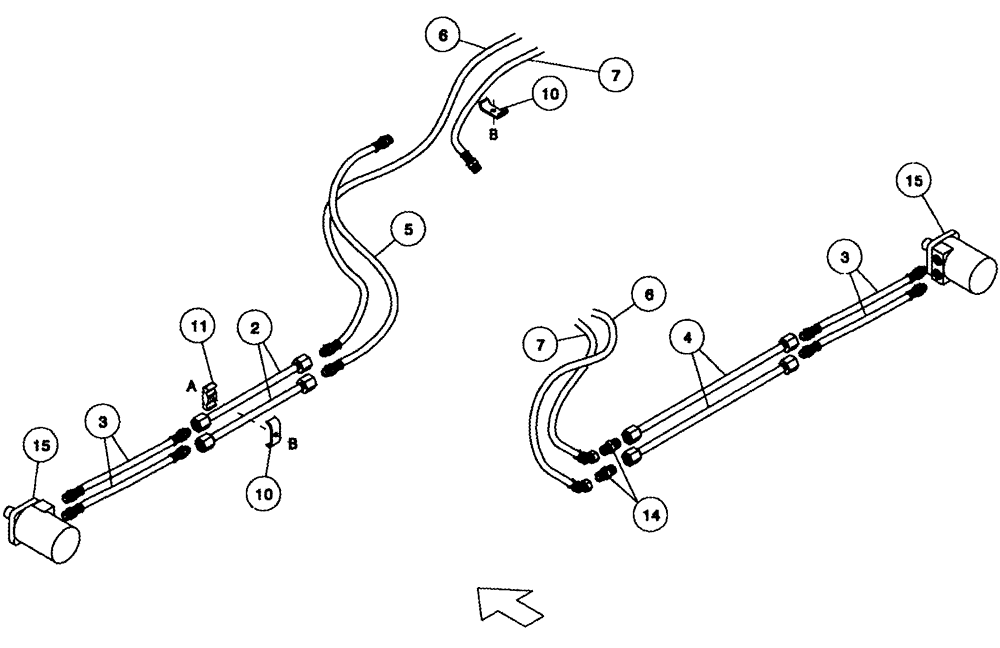

Запчасти Case IH 1042 (09-02) - HYDRAULIC CIRCUIT DRAPER DRIVE

2

131544A1

LINE

2шт.

30.0 Foot Header

1шт.

2

126745A1

HYD TUBE,15.88 mm OD, 16.75" Length

2шт.

36.0 Foot Header

1шт.

3

126736A1

HOSE

720 mm (28 in), Inc. 237-6010

4шт.

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

4шт.

4

338742A1

LINE

2шт.

30.0 Foot Header

1шт.

4

126744A1

HYD TUBE,15.88 mm OD, 3350 mm Length

2шт.

36.0 Foot Header

1шт.

5

352637A1

HOSE

Orange

1шт.

6

338744A1

HOSE

5250 mm (207 in)

1шт.

7

352636A1

HOSE

Blue

1шт.

10

1954807C1

CLAMP

Motors Outboard

8шт.

30.0 Foot Header

1шт.

10

1954807C1

CLAMP

Motors Outboard

10шт.

36.0 Foot Header

1шт.

11

1327304C1

CLAMP

Plastic, Motors Outboard

7шт.

30.0 Foot Header

1шт.

11

1327304C1

CLAMP

Plastic, Motors Outboard

9шт.

36.0 Foot Header

1шт.

14

218-435

HYD CONNECTOR,7/8" - 14 Male JIC x 7/8" - 14 Male JIC

2шт.

15

338358A1

HYDRAULIC MOTOR

Draper Drive

2шт.

See Figure 09-10

1шт.

a

433-628

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 3/4", Gr 5

3/8 x 1-3/4

1шт.

b

473371R1

FLANGE NUT

3/8 NC

1шт.
