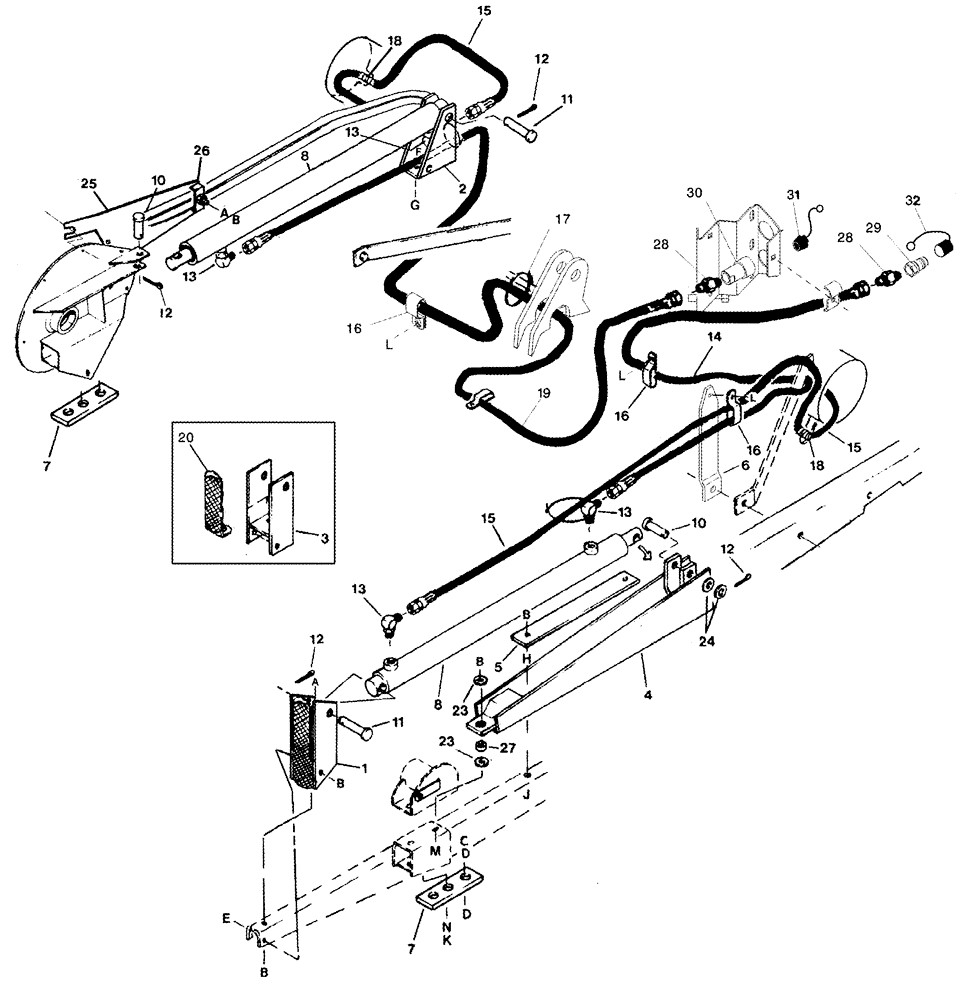

Запчасти Case IH 1042 (09-16) - HYDRAULIC CIRCUIT REEL FORE/AFT - 30.0 FOOT HEADER

1

370006A1

SUPPORT

Cylinder, Left Hand Front, Inc. Reflector, Start Serial: CCC0009270

1шт.

2

338833A1

SUPPORT

Right Hand Rear

1шт.

3

338854A1

SUPPORT

Left Hand Front, Serial Range: -CCC0009269

1шт.

4

338850A1

SUPPORT

Left Hand Rear

1шт.

5

338831A1

BAR

1шт.

6

352664A1

SUPPORT

1шт.

7

338846A1

BAR

2шт.

8

352665A1

CYLINDER ASSY.

Order 429264A1

2шт.

338837A1

SEAL KIT

2шт.

338281A1

PISTON

1шт.

8

429264A1

CYLINDER

MacDon Part Number 121028 Stamped on Cylinder, Replaces 352665A1

2шт.

394524A1

SEAL KIT

1шт.

338281A1

PISTON

1шт.

10

427-10247

CLEVIS PIN,5/8" x 2.47"

5/8 x 2-1/4

2шт.

11

427-10300

CLEVIS PIN,5/8" x 4"

5/8 x 2-3/4

2шт.

12

32-1220

COTTER PIN,3/16" x 1 1/4"

4шт.

13

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

9/16 fl x adj Or

4шт.

14

338842A1

HOSE

1шт.

15

338844A1

HOSE

1шт.

16

344825A1

SUPPORT

16шт.

17

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 in

5шт.

18

126632A1

CONDUIT

2шт.

19

450929A1

HOSE

Replaces 338839A1

1шт.

20

1336275C1

REFLECTOR

, Serial Range: -CCC0009269

2шт.

23

495-81135

WASHER,10.31mm ID x 25.4mm OD x 3.4mm Thk

2шт.

24

495-11066

WASHER,5/8", SAE

21/32 x 1-5/16 x 3/32

2шт.

25

338853A1

SUPPORT

1шт.

26

1954807C1

CLAMP

1шт.

27

338827A1

SPACER

1шт.

28

352667A1

FITTING

9/16 fl x Or

2шт.

29

1272399C2

QUICK MALE COUPLING

7/8 NF, Self-Sealing, Male

1шт.

30

1282338C91

COUPLING, QUICK, FEM

7/8 NF, Self-Sealing

1шт.

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

31

370003A1

CAP

1шт.

32

370004A1

CAP

1шт.

a

434-620

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/4", Gr 5

1шт.

b

232-5316

FLANGE NUT,Flg, 3/8"-16

1шт.

c

1258471C1

BOLT,Hex, 5/8" - 11 x 2 1/2", Full Thd

5/8 x 2-1/2

1шт.

d

425-1010

NUT,5/8"-11, G5

1шт.

e

413-652

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

1шт.

f

434-816

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1", Gr 5

1/2 x 1

1шт.

g

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

1шт.

h

425-106

NUT,3/8"-16, Cl 5

1шт.

j

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

1шт.

k

413-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5

1шт.

l

281-1488

SELF-TAP SCREW,Hex Wash Hd, 5/16" x 1/2"

5/16 x 1/2

1шт.

m

434-624

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/2", Gr 5

3/8 X 1-1/2

1шт.

n

492-11062

BEARING WASHER,5/8"

1шт.
